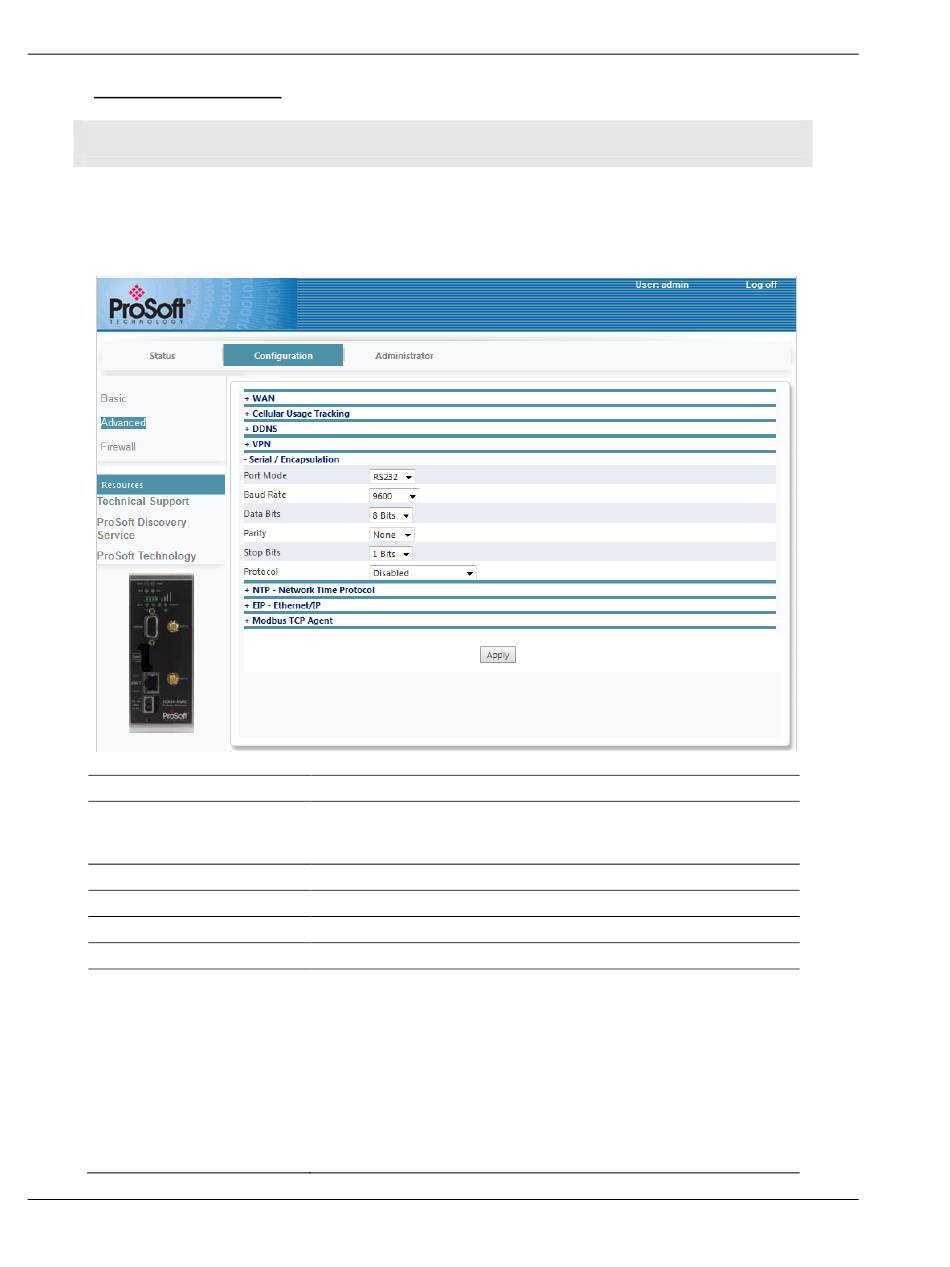

ICX35-HWC Webpage
User Manual
Serial / Encapsulation
Note: This feature is only available if the VPN Client feature is disabled.
The maximum file size to be transmitted or received at once on the serial port is
4096 bytes. The Serial/Encapsulation feature uses IP port 30722 for both TCP
and UDP configurations. This port number is not user-configurable.
Parameter
Port Mode
Baud Rate
Data Bits
Parity
Stop Bits
Protocol
Page 46 of 137
Description
This parameter sets the scheme for the serial port (RS-232 only).
Note: For RS-422/485 network connectivity, an RS-232 to RS-
422/485 converter is recommended.
Baud rate used on the ICX35-HWC serial port
Number of data bits per character for the serial port
Parity type used on the serial port. None, Odd, Even, Mark, Space
Number of stop bits per character for the serial port
This parameter sets the serial encapsulation mode for the gateway:
o
Disabled
o
Generic
o
Modbus RTU
o
Modbus ASCII
o
Modbus RTU to TCP
o
Modbus ASCII to TCP
o
DF1 Half-Duplex
o
DF1 Full-Duplex
o
DF1 Radio Modem
