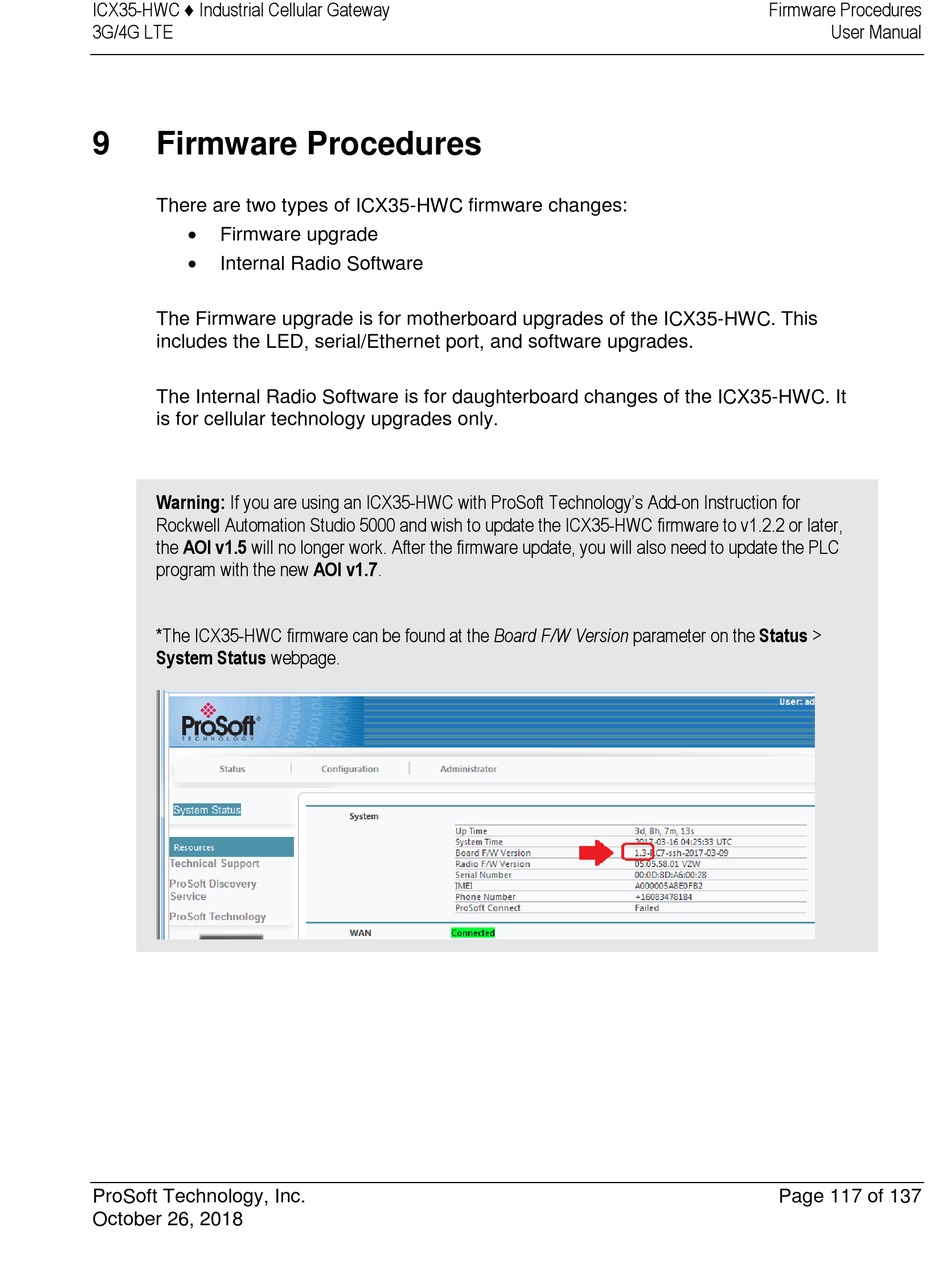

Firmware Procedures - ProSoft Technology ICX35-HWC User Manual

ICX35-HWC ♦ Industrial Cellular Gateway
3G/4G LTE
9

Firmware Procedures

There are two types of ICX35-HWC firmware changes:

Firmware upgrade

Internal Radio Software
The Firmware upgrade is for motherboard upgrades of the ICX35-HWC. This
includes the LED, serial/Ethernet port, and software upgrades.
The Internal Radio Software is for daughterboard changes of the ICX35-HWC. It
is for cellular technology upgrades only.
Warning: If you are using an ICX35-HWC with ProSoft Technology's Add-on Instruction for
Rockwell Automation Studio 5000 and wish to update the ICX35-HWC firmware to v1.2.2 or later,
the AOI v1.5 will no longer work. After the firmware update, you will also need to update the PLC
program with the new AOI v1.7.
*The ICX35-HWC firmware can be found at the Board F/W Version parameter on the Status >
System Status webpage.
ProSoft Technology, Inc.
October 26, 2018
Firmware Procedures
User Manual
Page 117 of 137
