3-8 Chapter 3: Configuring the 1734sc-IF4U for RSLogix 5000
Name the module
Enter Input Data – SINT
for Comm. Format
Enter module slot #
Enter the input assembly
instance and size
Section 3.4
Use
Add-On-Profile
User's Manual Pub. 0300266-02 Rev. B

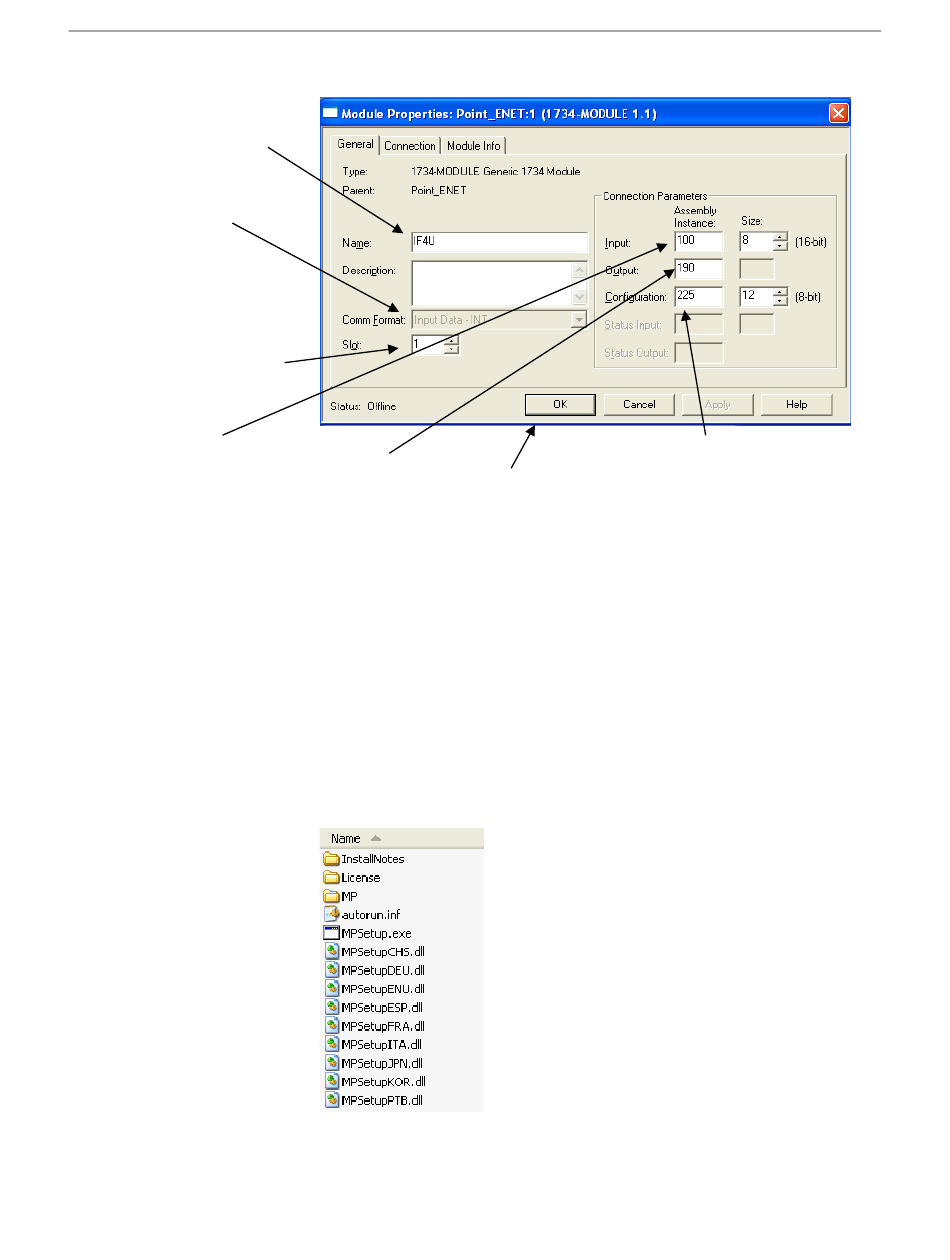

3. Configure the Generic 1734 Module (that is, 1734sc-IF4U):
Enter the output
assembly (always 190)
For RSLogix 5000 version 15 and greater, an Add-On module profile is available
for download at (www.spectrumcontrols.com). The Add-On profile allows the
user to add the IF4U module to the RSLogix 5000 module pick list. The profile
provides configuration and information screens to the user to simplify
installation. Follow the procedure below to install and use the Add-On profile.

3.4.1 Installing the Add-On Profile

1. Download the zipped file from the Spectrum Controls website and unzip
the file (www.spectrumcontrols.com).
2. Open the created folder and double-click on the MPSetup.exe file.
3. Follow the online prompts.
Enter the configuration
assembly instance and
size
Click OK
