Chapter 3: Configuring the 1734sc-IF4U for RSLogix 5000

3.4.2 Adding the IF4U Module to Your Logix Project

Once the profiles are installed, you can access them through RSLogix 5000 via
the I/O Configuration. Follow the procedure below to add a module:
1. Before you can add the 1734sc-IF4U to your RSLogix 5000 project, you
must first add a local communication module and a remote
communication adapter. Complete sections 3.3.1 and the relevant listed
steps above, before proceeding to step 2 below.

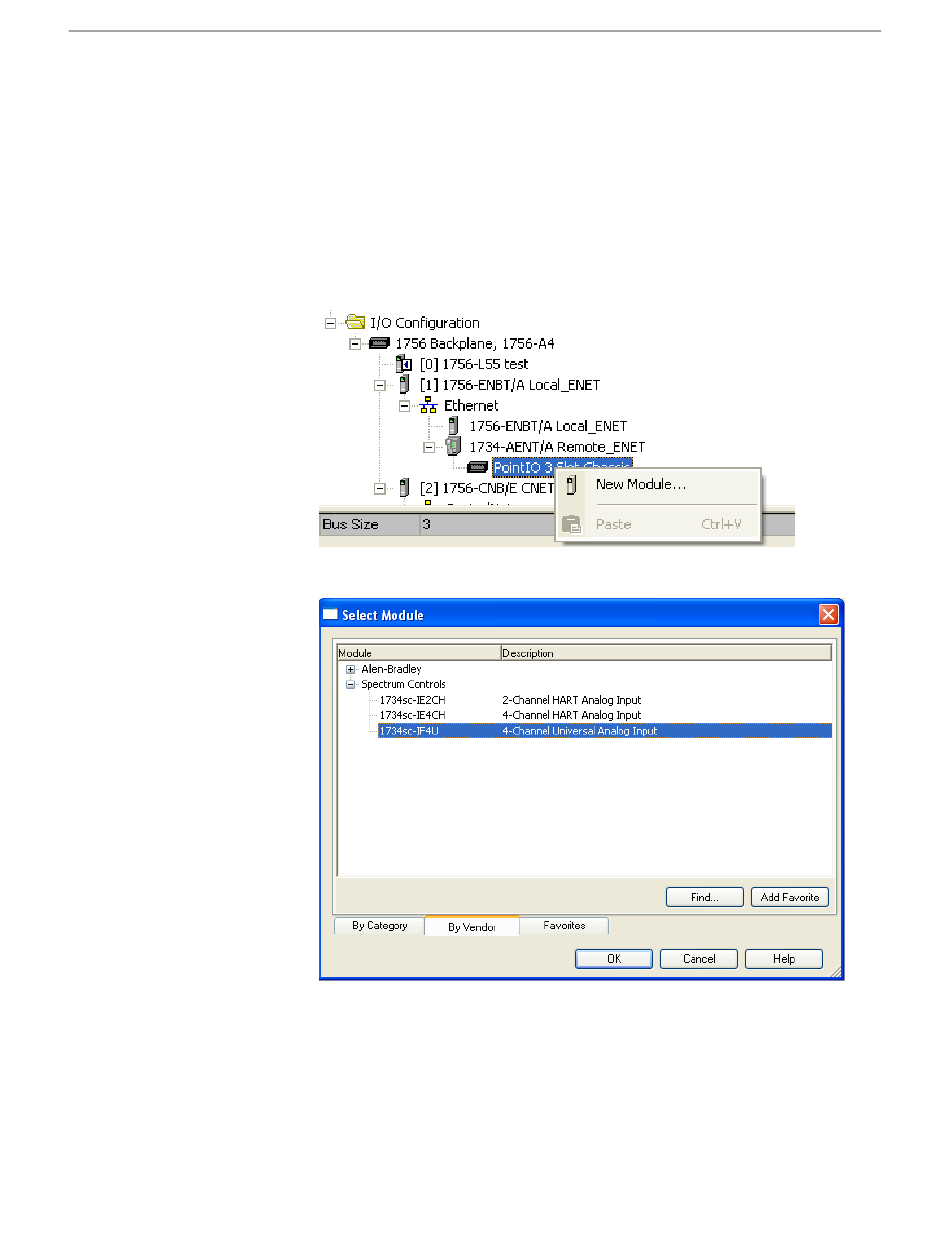

2. In the I/O Configuration, right mouse click on the Point IO backplane
under the remote communication adapter that you added in step 1 above
and select New Module.
3. When the dialog screen opens, select the By Vendor tab and expand the
Spectrum Controls folder:
4. Highlight the module and press the OK button.
