Section 1.1
General
Description
Chapter 1
Module Overview

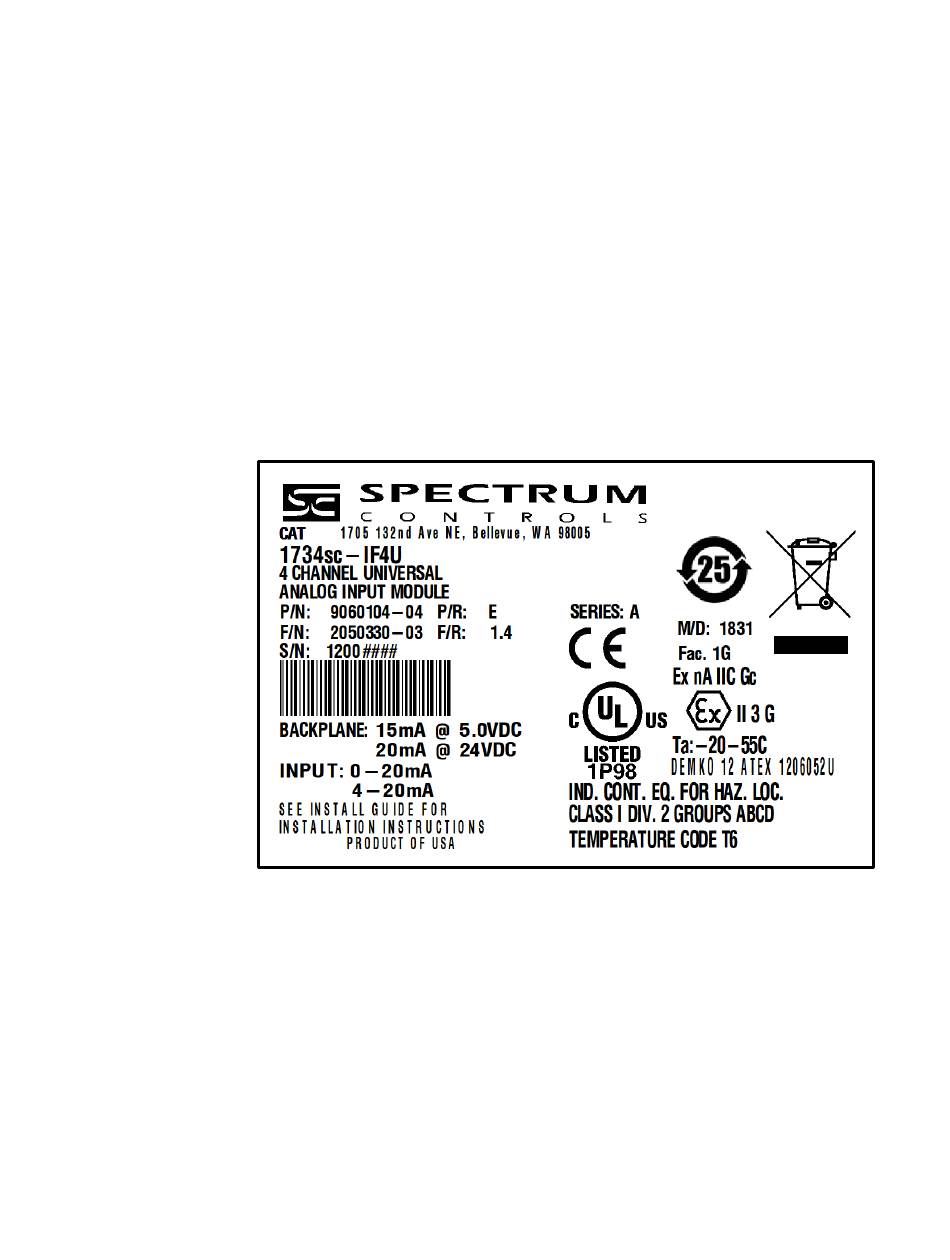

The 1734sc-IF4U module has four analog input channels that support current,
voltage, RTD, resistance, and thermocouple input types. This chapter includes
information about:
•
General description
•
Input types
•
Data formats
•
Filter frequencies
•
Hardware features
•
System overview and module operation
The IF4U module digitally converts and stores analog data for each configured
input. Each input channel can be independently configured for input type, data
format, and filter frequency.
User's Manual Pub. 0300266-02 Rev. B
