Chapter 3: Configuring the 1734sc-IF4U for RSLogix 5000

3.3.3 Add the Generic Point IO Module

After adding the remote Ethernet communication module, the 1734 Generic
Module must be added. The following steps must be followed to add the 1734
Generic IO Module:

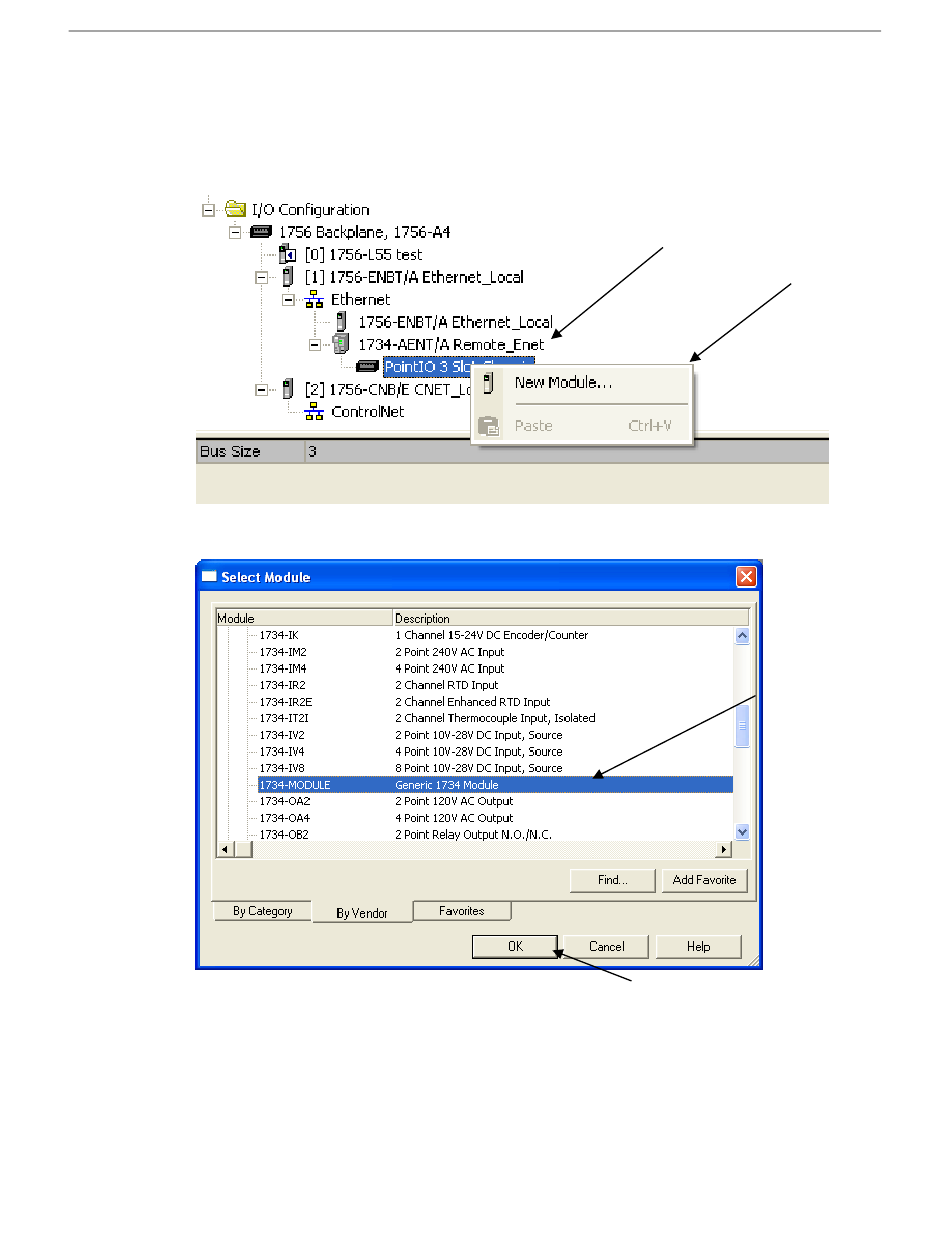

1. Select a New Module for the I/O Configuration:
2. Select the module type from the Select Module type pop-up:
Right-click on the
remote communication
module
Select New Module
Click OK
User's Manual Pub. 0300266-02 Rev. B
3-7
Select Generic
Module
