3-4 Chapter 3: Configuring the 1734sc-IF4U for RSLogix 5000
Name the module
Enter IP address of ENBT
Select the module's slot number
Select the module's revision
level
Select electronic keying level
Click OK
User's Manual Pub. 0300266-02 Rev. B

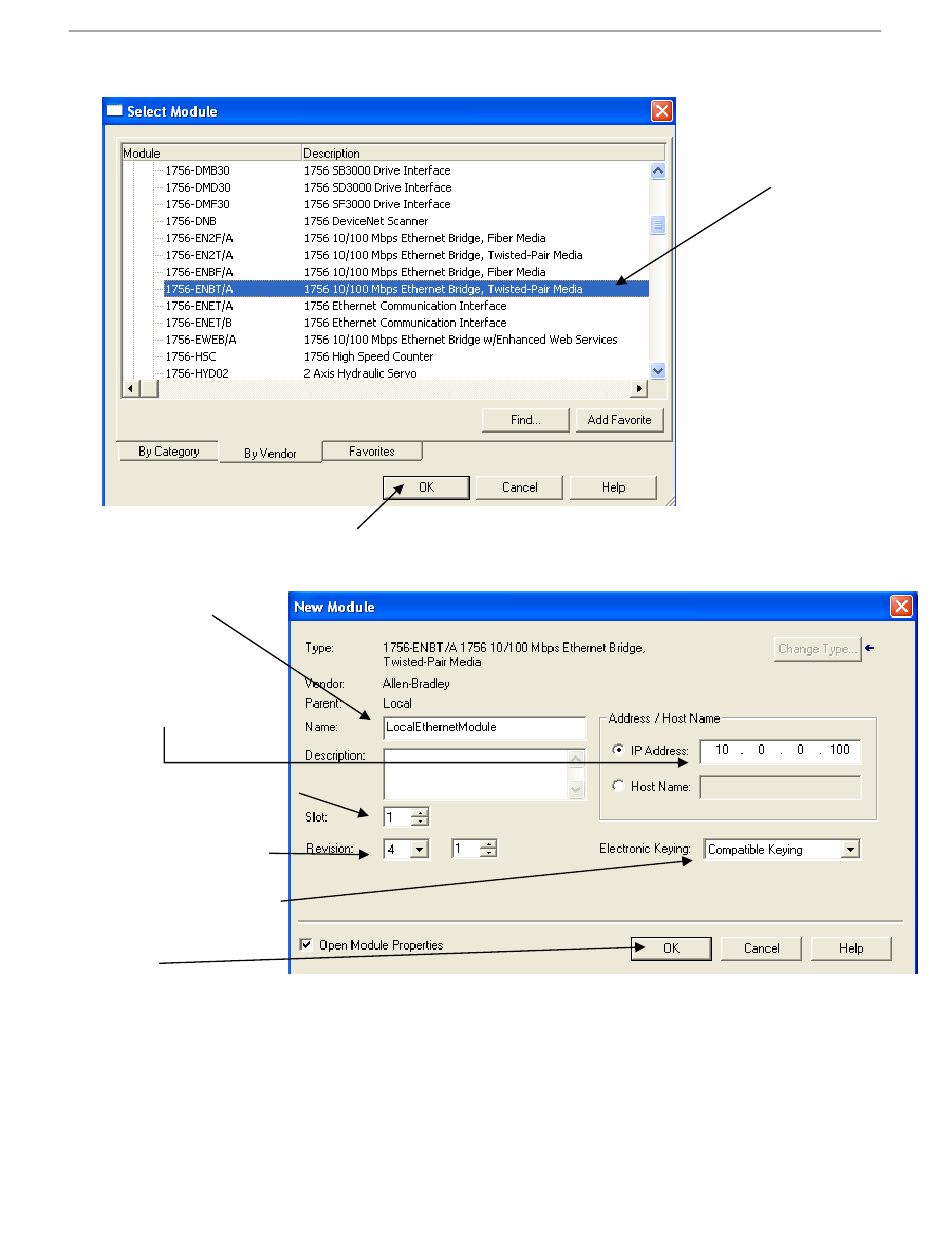

The example below uses a 1756-ENBT module:
Click OK
3. Configure the local Ethernet bridge module:
Select the local Ethernet
bridge module
