Section 1.4
Filter
Frequencies
Section 1.5
Hardware
Features
The module uses a notch filter to provide noise rejection for each input channel.
The filter for each channel is programmable allowing you to select from 4
different filter options:
4.17 Hz
16.7 Hz
62 Hz
470 Hz
Channels are wired as differential inputs.
Module configuration is done via the controller's programming software. The
module configuration is stored in the memory of the controller. Refer to your
controller's user manual for more information. The illustration below shows the

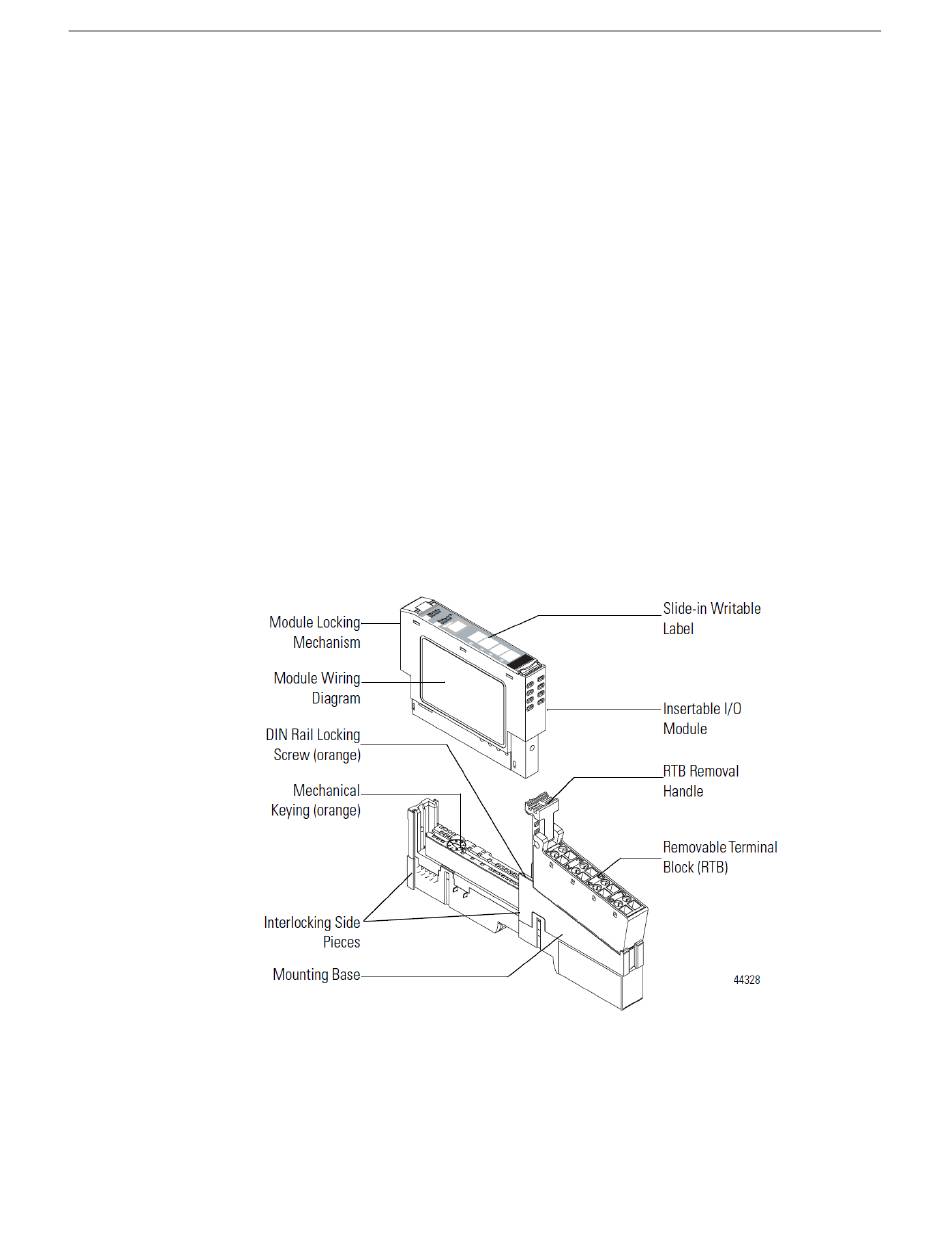

module's hardware features.
Figure 1-1.
Chapter 1: Module Overview
User's Manual Pub. 0300266-02 Rev. B
1-3
