Chapter 3: Configuring the 1734sc-IF4U for RSLogix 5000
Generic Module Profile:
[Name of remote communication module]:e:x.Data[0 to 198]
e = IF4U slot number
x = Image Type (i.e. C, I, or O)
AOP (Add-On-Profile):
[Name of remote communication module]:e:x
e = IF4U slot number
x = Image Type (i.e. C, I, or O)
The AOP will provide a predefined tag structure for the configuration. See
NOTE
example below.

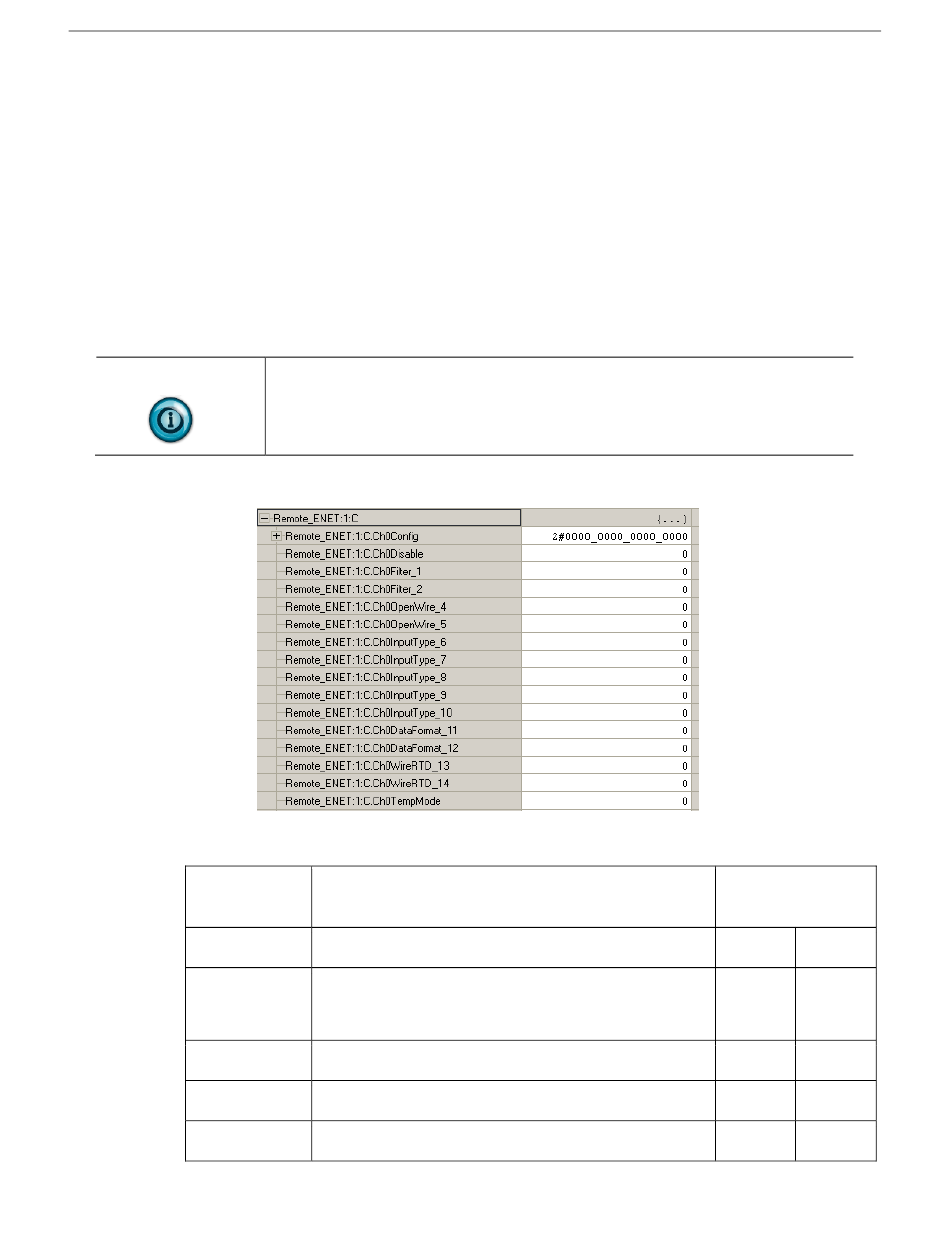

Figure 3-1. AOP Config. Tags
Table 3-1. IF4U Configuration Assembly
Instance: Size:
225 (0×E1) 12 bytes RSL 5K (DNET 8 bytes)
OFFSET FIELD
Channel 0 Configuration
0×00
(See Channel Configuration Details below)
0×02 Channel 1 Configuration (Same as above)
0×04 Channel 2 Configuration (Same as above)
0×06 Channel 3 Configuration (Same as above)
TYPE
INT
INT
INT
INT
