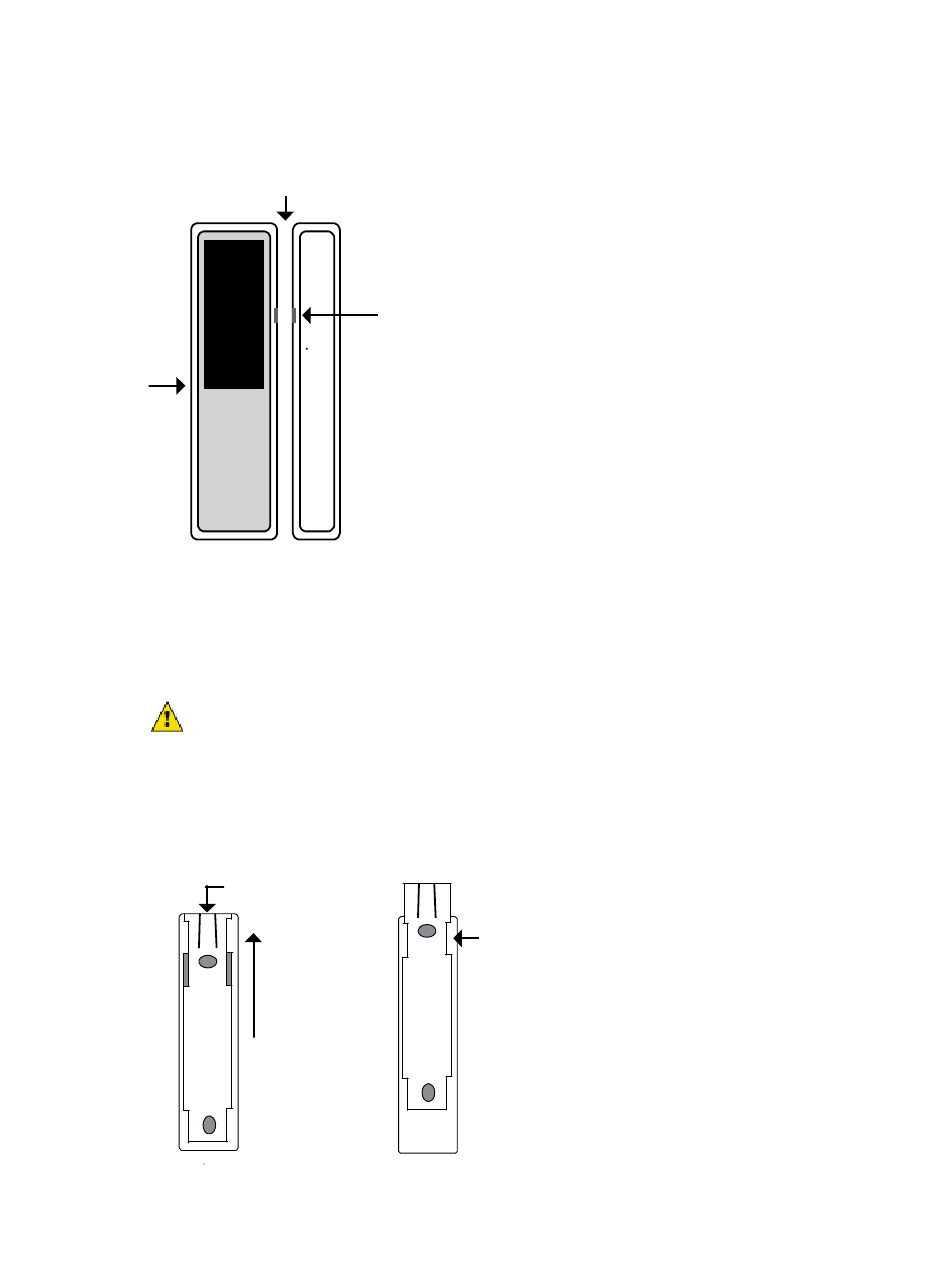

Sensor and magnet alignment and spacing
The spacing and alignment is critical.
Gap must not exceed
.25 in. (6.4 mm)
LED
Sensor
To install the sensor and magnet
1
Remove the sensor from its packaging and place it under a strong light to charge it.
IMPORTANT Although we recommend mounting the sensor and magnet with screws, you should leave
the adhesive foam strips on the back of them if you are mounting them on metal surfaces. The foam backing
will add space to reduce signal absorption by the metal.
2
Mount the sensor on the door or window frame as follows:
a) Lift up on the tab with your index finger as you slide the back mounting plate towards the tab with your
thumb. Slide the mounting plate until it stops.
Wireless Sensors
Installation Guide
Align
arrows
Magnet
Lift tab
Slide
mounting
plate about
.5 in. (1 cm)...
Installing the Wireless Adapter and sensors
...until notches
on mounting
plate align
with offsets
on sensor
37
