Summary of Contents for Carrier ZS Series

  • Page 1 CARRIER CORPORATION ©2020 · Catalog No. 11-808-502-01 · 3/3/2020...
  • Page 2 Important changes are listed in Document revision history at the end of this document. CARRIER CORPORATION ©2020. All rights reserved throughout the world. i-Vu is a registered trademark of Carrier Corporation. All other trademarks are the property of their respective owners.
  • Page 3: Table Of Contents

    Contents Using ZS Zone Sensors ..............................1 ZS Standard Sensor ..............................2 ZS Plus Sensor ................................3 To make the zone warmer or cooler ........................3 To override the schedule ............................. 4 ZS Pro Sensor ................................5 Navigating the sensor's screens ......................... 5 Reading the display ..............................
  • Page 5: Using Zs Zone Sensors

    See the referenced page below to learn what you can see and do with each of the ZS zone sensor models: ZS Standard (page 2) ZS Plus (page 3) ZS Pro (page 5) ZS Pro-F (page 10) ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 6: Zs Standard Sensor

    ZS Standard Sensor ZS Standard Sensor A ZS Standard sensor has no user controls. ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 7: Zs Plus Sensor

    To make the zone warmer or cooler Move the sensor's slider up to make the zone warmer or down to make it cooler. The control program determines how much you can adjust the setpoint. ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 8: To Override The Schedule

    If allowed by the control program, press and hold the button for 3 seconds to force the zone to an unoccupied state. Press the button again to cancel the force to unoccupied and return control to the schedule. ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...

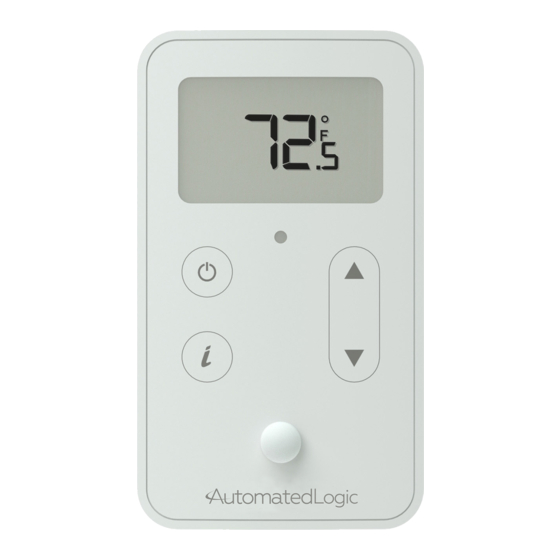

  • Page 9: Zs Pro Sensor

    Tap the button to cycle through various information. Diagnostic You hold the button for 3 seconds. Tap the button to cycle through various information to troubleshoot your system. ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 10: Reading The Display

    NOTE If a number on the display flashes, this indicates that the sensor cannot display the correct value (for example, the value exceeds the maximum value that the sensor can show). ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 11: To Make The Zone Warmer Or Cooler

    Wait a few seconds until the display returns to the home screen before you press any other buttons. During the override, the bottom of the display shows the time (minutes) remaining in the override and an hourglass to indicate the override state. ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 12: To Lock The Sensor Buttons

    But, if you press the button first, the buttons will lock. ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 13: To Edit Displayed Values

    Wait until the display returns to the home screen before you press any other buttons. NOTE If the control program specifies that the value is not editable, you will see without arrows. ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 14: Zs Pro-F Sensor

    Continue tapping until you see the fan speed option that you want. To set the fan to... Look for this icon(s)... Auto. The control program determines the speed. Low speed Medium speed High speed ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 15: To Show The Temperature As Fahrenheit Or Celsius

    ZS Pro-F Sensor To show the temperature as Fahrenheit or Celsius Tap the F/C button to change the zone temperature display from F° to C° and back. ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 16: Appendix: Rnet Tag Numbers

    Effective Heating Setpoint Air Flow Primary Damper Position Cooling Stage Heating Stage Cooling Valve Heating Valve Reheat Secondary Damper Position Supply Air Humidity Return Air Humidity Entering Water Temp ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 17 Temperature units (°F/°C) displayed on sensor Rnet tag number... Indicates this type of alarm... 1024 Generic Alarm 1025 High Zone Temp 1026 Low Zone Temp 1027 Filter Change Required 1028 High Discharge Air Temp ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 18 High Mixed Air Temp 1066 Low Mixed Air Temp 1067 High Return Air Humidity 1068 Low Return Air Humidity 1069 High Return Air Temp 1070 Low Return Air Temp ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 19 Rnet tag numbers 1100–1999 are custom tags. If you see a number in this range, ask your system installer what system value it represents. A custom Rnet tag number Indicates... beginning with... 11xx A binary tag 13xx An analog tag 15xx A multi-state tag ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 20: Document Revision History

    Added "Zone" to the title and "motion" in the first paragraph. ZS-Pro Added note regarding ZS Pro with optional motion sensor 10/21/16 Appendix: Rnet tag numbers Added Rnet tag 115, Filter Status X-O-AE-O * For internal use only ZS Zone Sensors CARRIER CORPORATION ©2020 User Guide All rights reserved...
  • Page 22 CARRIER CORPORATION ©2020 · Catalog No. 11-808-502-01 · 3/3/2020...
