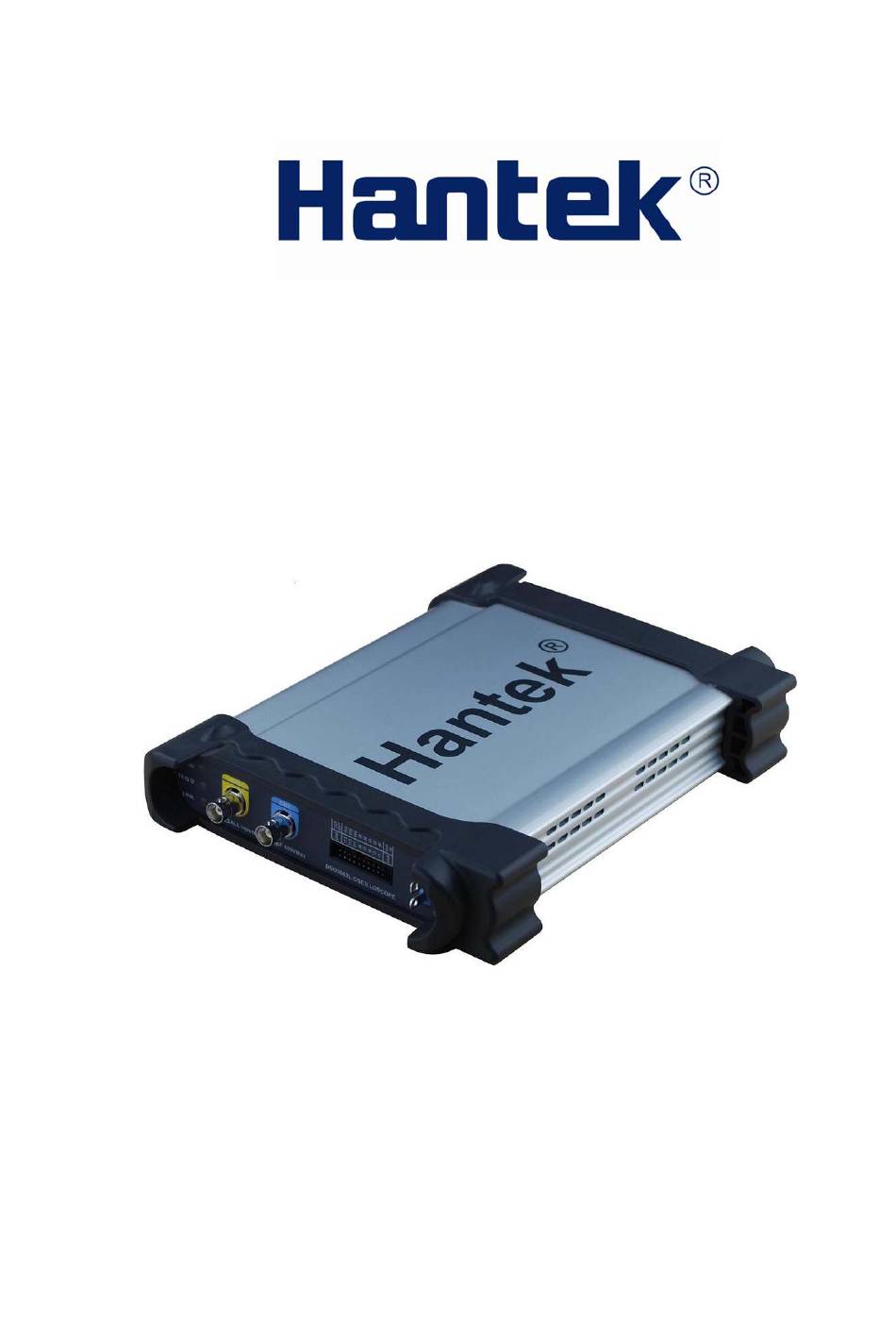

USER'S MANUAL
DSO3062L/DSO3062AL
http://www.hantek.com




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSO3062L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hantek DSO3062L

Summary of Contents for Hantek DSO3062L

  • Page 1    USER’S MANUAL DSO3062L/DSO3062AL http://www.hantek.com      ...

  • Page 2: Table Of Contents

       Content General Safety Summary ................1 Chapter 1 Getting Start .................. 2 1.1 System Requirement ................... 3 1.2 Install Software ..................... 4 1.3 Install Driver ......................7 1.4 General Features ....................10 1.5 General Check ....................11 1.6 Function Check ....................13 1.7 Self Calibration ....................

  • Page 3: General Safety Summary

     DSO3062L/DSO3062AL Digital Oscilloscope  General Safety Summary Review the following safety precautions carefully before operate the device to avoid any personal injuries or damages to the device and any products connected to it. To avoid potential hazards use the device as specified by this user’s guide only.

  • Page 4: Chapter 1 Getting Start

     DSO3062L/DSO3062AL Digital Oscilloscope  Chapter 1 Getting Start The oscilloscope is small, lightweight, no external power required, portable oscilloscopes! The oscilloscopes is ideal for production test, research and design and all of the applications involving analog circuits test and troubleshooting, as well as education and training.

  • Page 5: System Requirement

     DSO3062L/DSO3062AL Digital Oscilloscope  1.1 System Requirement To run the oscilloscope software, the needs of computer configuration are as follows: Minimum System Requirements Operating System Window XP/Vista/Win7/Win 8 Processor Upwards of 1.00G processor Memory 256M byte Disk Space 500M disk free space...

  • Page 6: Install Software

     DSO3062L/DSO3062AL Digital Oscilloscope  1.2 Install Software Caution: You must install the software before using the oscilloscope. While in Windows, insert the installation CD into the CD-ROM drive. The installation should start up automatically. Otherwise in Windows Explorer, switch to the CD-ROM drive and run Setup.exe.
  • Page 7  DSO3062L/DSO3062AL Digital Oscilloscope  Choose a destination directory. Click 'Next' to continue. Check the setup information. Click Next to start copying of files. USER’S MANUAL...
  • Page 8  DSO3062L/DSO3062AL Digital Oscilloscope  This Status dialog is displayed during copying of files. Updating Your System Configuration. The installation is complete.   USER’S MANUAL...

  • Page 9: Install Driver

    DSO3062L/DSO3062AL Digital Oscilloscope      1.3 Install Driver Example: DSO3062AL 1.Connect the A-Type Plug of USB cable to your PC’S USB port. 2.Connect the other A -Type Plug of USB cable to the device’s USB port. 3.New hardware is found.
  • Page 10 DSO3062L/DSO3062AL Digital Oscilloscope      5.Select the specific location. 6.New hardware search wizard starts to search the driver. USER’S MANUAL...
  • Page 11 DSO3062L/DSO3062AL Digital Oscilloscope      7.The wizard has finished installing for the device. 8.The new hardware is installed and ready to use. USER’S MANUAL...

  • Page 12: General Features

    DSO3062L/DSO3062AL Digital Oscilloscope      1.4 General Features Product Features: ■ Two Channels, Bandwidth: 60MHz ■ Maximum real-time sample rate: 200MSa/s ■ Memory depth: 10K-16M /CH ■ Automatic setup for ease of use (AUTOSET); ■ Pass/Fail; ■ Built-in Fast Fourier Transform function(FFT);...

  • Page 13: General Check

    DSO3062L/DSO3062AL Digital Oscilloscope      1.5 General Check Please check the instrument as following steps after receiving an oscilloscope: Check the shipping container for damage: Keep the damaged shipping container or cushioning material until the contents of the shipment have been checked for completeness and the instrument has been checked mechanically and electrically.
  • Page 14 DSO3062L/DSO3062AL Digital Oscilloscope      Over Compensated Under Compensated f necessary, use a non-metallic tool to adjust the trimmer capacitor of the probe for the fattest square wave being displayed on the oscilloscope. 2. Repeat if necessary. WARNNING: To avoid electric shock while using the probe, be sure the perfection of the insulated cable, and do not touch the metallic portions of the probe head while it is connected with a voltage source.

  • Page 15: Function Check

    DSO3062L/DSO3062AL Digital Oscilloscope      1.6 Function Check Perform this functional check to verify that your oscilloscope is operating correctly ■ Connect the oscilloscope You should connect the A-Type Plug of USB cable to your PC USB port and connect the other A-Type Plug of USB cable to oscilloscope USB port.

  • Page 16: Self Calibration

    DSO3062L/DSO3062AL Digital Oscilloscope      3. Attach the tip of probe and ground nip to the Connector of Probe compensator. Click the button. A square wave will be displayed within a several seconds. (Approximately 1 kHz, 2V, peak- to- peak).

  • Page 17: Accessories

    DSO3062L/DSO3062AL Digital Oscilloscope      1.8 Accessories All the accessories listed below are standard accessories for the oscilloscope: DSO3062L: Probe x 2 (1.5m), 1:1(10:1), Passive Probes A power adapter special for this product A USB cable A logic analyzer cable...

  • Page 18: Chapter 2 Operating Basics

    DSO3062L/DSO3062AL Digital Oscilloscope     Chapter 2 Operating Basics The User’s Interface The Menu System The Vertical System The Horizontal System The Trigger System Input Connectors USER’S MANUAL 16 ...

  • Page 19: The User's Interface

    DSO3062L/DSO3062AL Digital Oscilloscope     2.1 The User’s Interface Click the software icon on the desk after you finished the software setting and equipment connecting. Then a user interface will be showed as follows: In addition to displaying waveforms, the display area is filled with many details about the waveform and the oscilloscope control settings.
  • Page 20 DSO3062L/DSO3062AL Digital Oscilloscope     10.Marker shows Edge trigger level. 11.Displays the main time base setting. 12.Displays the LA channel setting on-off status. 13.Displays the CH2 information Readouts show the coupling of the channels. Readouts show the vertical scale factors of the channels.

  • Page 21: The Menu System

    DSO3062L/DSO3062AL Digital Oscilloscope     2.2 The Menu System The Main Menu: 1.File: Load or Save data, setup 2.View: Change the user interface 3.Setup: Setup setting 4.Display: Change wave display type USER’S MANUAL...
  • Page 22 DSO3062L/DSO3062AL Digital Oscilloscope     5.Cursor: Set Cursor measure type 6. Measure: Set measurement parameters 7.Acquire: Run ,Stop or other operation setting 8. Utility: Utility setting 9.Vehicle: 10. Window: Window setting USER’S MANUAL...

  • Page 23: The Vertical System

    DSO3062L/DSO3062AL Digital Oscilloscope     11.Help: Turn on help file 1.3 The Vertical System Click “Setup->Vertical” The following figure shows the vertical Setup window. It shows the vertical parameters setting. 1.Select channel: User can select the channel by clicking the Combo box.

  • Page 24: The Horizontal System

    DSO3062L/DSO3062AL Digital Oscilloscope     5.Probe: Set the Select one according to the probe attenuation factor to ensure correct vertical scale reading 6.BW Limit: Reject the frequency component higher than 20MHz. 7.Invert: Invert the selected wave. 2.4 The Horizontal System Click “Setup->Horizontal”...

  • Page 25: The Trigger System

    DSO3062L/DSO3062AL Digital Oscilloscope     2.5 The Trigger System Click “Setup-> Trigger” The following figure shows the trigger system control. Single Trigger: 1.Trigger Mode: Sets the trigger mode 2.Trigger Sweep: Selects the trigger sweep mode to AUTO, NORMAL or SINGLE 3.Trigger Source: Selects the trigger source to CH1, CH2, D0-D15, EXT.
  • Page 26 DSO3062L/DSO3062AL Digital Oscilloscope     Advance Trigger: There are four parts in each condition, Data, Duration, Edge and Relative trigger value. USER’S MANUAL...

  • Page 27: Input Connector

    DSO3062L/DSO3062AL Digital Oscilloscope     2.6 Input Connector CH1/CH2: Input connectors for waveform display. E-TRIG/S: 1. Input connector for an external trigger source. Use the Trigger Menu to select the Ext. source. 2. Output Synchronized signal(DSO3062AL). Other Connector: OUTPUT: Signal output(DSO3062AL).

  • Page 28: Chapter 3 Oscilloscope Functions

    DSO3062L/DSO3062AL Digital Oscilloscope     Chapter 3 Oscilloscope Functions Set Oscilloscope Set Vertical System Set Horizontal System Set Trigger System Save/Load Utility Function Measure Signal Zoom In/Out Waveforms Acquire Signal Print USER’S MANUAL...

  • Page 29: Setup The Oscilloscope

    DSO3062L/DSO3062AL Digital Oscilloscope     3.1 Setup the Oscilloscope Using “AUOSET” to display a signal automatically. Auto setup functions one time each time you push the “AUTOSET” button. The function obtains a stable waveform display for you. It automatically adjusts the vertical scale, horizontal scale and trigger settings.

  • Page 30: Set Vertical System

    DSO3062L/DSO3062AL Digital Oscilloscope     3.2 Set Vertical System Set Channel Click “Vertical” in “Setup” menu. The Channel Selection The Channel Control Panel in sidebar The Vertical function: Turn ON/Off: Turn on/off the channel Volt/DIV: Select the channel voltage/div Coupling: Select the channel coupling Probe: Select the channel probe attenuation Invert: Turn on/off the invert function.
  • Page 31 DSO3062L/DSO3062AL Digital Oscilloscope     Set Channel Coupling Click “Coupling” in “Vertical Setup” window In the sidebar, you can change the channel coupling too You can set the coupling to DC, AC or GND. If you set the coupling to DC, it blocks the AC component of the input signal.
  • Page 32 DSO3062L/DSO3062AL Digital Oscilloscope     Set Math Click “MATH” in Channel menu to set MATH channel. The MATH Setup window: ON/OFF: Turn On/Off the MATH Channel. Source A/B: Set the sources of the math channel. Operate: Set operates type of the math channel.
  • Page 33 DSO3062L/DSO3062AL Digital Oscilloscope     In this function, use the addition, subtraction, multiplication and FFT function to operate and analyze the waveform. Select the operate type in the Operate menu. Select source A and B. Then adjust the vertical scale and offset to view the math channel clearly. The mathematic result can be measured by the measure and the cursor.
  • Page 34 DSO3062L/DSO3062AL Digital Oscilloscope     Invert The invert function turns the displayed waveform 180 degrees, with respect to the ground level. When the oscilloscope is triggered on the inverted signal, the trigger is also inverted. Click “Invert” in MATH. The following picture shows the waveform before inversion: The following picture shows the waveform of inversion: USER’S MANUAL...
  • Page 35 DSO3062L/DSO3062AL Digital Oscilloscope     Set Reference Click “REF” in “Setup” menu to set REF channel. The Reference Channel Function: On/Off: Turn on/off the reference channel. Volt/DIV: Channel the resolution of the reference channel. Load: Load the reference waveform from the “.rfc” file from your computer.

  • Page 36: Setup Horizontal System

    DSO3062L/DSO3062AL Digital Oscilloscope     The Reference Waveform Display Window: Note: If you turn on the “Reference” channel, the load file window will appear. 3.3 Setup Horizontal System Change Time/Div The “Time/Div” elects the horizontal Time/DIV (scale factor) for the main or the window time base The Horizontal Panel Click the blue knob can change Time/Div.

  • Page 37: Set Trigger System

    DSO3062L/DSO3062AL Digital Oscilloscope     In the “Format” item, set the waveform display format (Y-T, X-Y). Y -T: Show the relative relation between vertical voltage and horizontal time X -Y: Show CH1 value at X axis; CH2 value at Y axis...
  • Page 38 DSO3062L/DSO3062AL Digital Oscilloscope     The Edge trigger determines whether the oscilloscope finds the trigger point on the rising or the falling edge of a signal. Select Edge trigger mode to trigger on Rising edge or Falling edge. Mode: Select the trigger mode.
  • Page 39 DSO3062L/DSO3062AL Digital Oscilloscope     Source: PW Condition: Pulse Width: The Pulse Width adjust range is 10ns~10s. When the condition is met, it will trigger and acquire the waveform. The user can also change the trigger setting on trigger panel in sidebar.
  • Page 40 DSO3062L/DSO3062AL Digital Oscilloscope     Video Trigger: Mode: Select the trigger mode. Sweep: Source: Set the Trigger Channel to CH1,CH2. Trigger Sync: Trigger Standard: Options Settings Comments With Video highlighted, an NTSC, PAL or SECAM Video standard video signal will be triggered. The trigger coupling is preset to AC.
  • Page 41 DSO3062L/DSO3062AL Digital Oscilloscope     PW Condition: Set the PW Condition to the following condition. +More: +Pulse width more than selecting pulse condition. +Less: +Pulse width less than selecting pulse condition. +Equal: +Pulse width equal to selecting pulse condition. -More: -Pulse width more than selecting pulse condition.
  • Page 42 DSO3062L/DSO3062AL Digital Oscilloscope     2.Set Bus Trigger The Bus mode includes three trigger modes: Trigger value: Trigger at the appearance of a specified value on the selected bus. Duration: Trigger at x time after the appearance of a specified value.
  • Page 43 DSO3062L/DSO3062AL Digital Oscilloscope     High Frequency Rejection Select “HF Rejection” in “Trigger Setup” window The user can turn on “HF Rejection” to eliminate trigger higher-frequency (20M above) USER’S MANUAL...

  • Page 44: Save/Load

    DSO3062L/DSO3062AL Digital Oscilloscope     3.5 Save/Load Save Click “File” in main menu to save waveform, setups and screen. 1. Save Data Save waveform data as a type file 2. Save Setup Save the current oscilloscope setup to file 3. Save Image Save the software display window as a .bmp or .jpg file...

  • Page 45: Utility Function

    DSO3062L/DSO3062AL Digital Oscilloscope     3.6 Utility Function 3.6.1 Record Click “Record” in “Utility” menu. The Record window will display. The following picture shows the Record Interface. This function can record input waveform form CH1, CH2. Storage: Record waveform and save it as “.dfr” file. “Play Back” button: Click this button to start playing back waveform.
  • Page 46 DSO3062L/DSO3062AL Digital Oscilloscope     File Information: Writing: Recording data. Reading: Playing back data. data.0.drf: the name of the recorded file. The Max. length of this file is about 1GB. When recording data length is more than 1GB, it will create next file named data.1.drf, and so on.
  • Page 47 DSO3062L/DSO3062AL Digital Oscilloscope     The Pass/Fail function monitors changes of signals and outputs pass or fail signals by comparing the input signal with the pre-created mask. Control Setting Source: Select the Pass/Fail channel Output: Select the Pass/Fail output condition.
  • Page 48 DSO3062L/DSO3062AL Digital Oscilloscope     Information Display Fail: It shows the fail waveform number Pass: It shows the pass waveform number Total: It shows the l total Pass/Fail waveform number Operation Click “Start” button to start the Pass/Fail test. Click “Stop” button to stop the Pass/Fail test.
  • Page 49 DSO3062L/DSO3062AL Digital Oscilloscope     3.6.3 Factory Setup Click “Factory Setup” in “Utility” menu to load default setups When you click the Factory Setup in Utility menu, the oscilloscope displays the CH1 and CH2 waveforms and removes all other waveforms.

  • Page 50: Measure Signal

    DSO3062L/DSO3062AL Digital Oscilloscope     3.7 Measure Signal 3.7.1 Cursor Menu Click “Cursor” in main menu. This method allows you to take measurements by moving the cursors 1. Source The user can set the source to CH1, CH2 and MATH.
  • Page 51 DSO3062L/DSO3062AL Digital Oscilloscope     The Cross cursor display window: The Cross measure result displays on status bar 2) Trace The Trace cursors appear as vertical lines on the display and measure the waveform amplitude at the point the waveform crosses the cursor.
  • Page 52 DSO3062L/DSO3062AL Digital Oscilloscope     3) Vertical The Vertical cursors appear as vertical lines on the display and measure the vertical parameters. The Vertical cursor display window: The Vertical cursor measure result display on status bar USER’S MANUAL...
  • Page 53 DSO3062L/DSO3062AL Digital Oscilloscope     4)Horizontal The Horizontal cursors appear as horizontal lines on the display and measure the horizontal parameters. The Horizontal cursor display window: The Horizontal cursor measure result display on status bar 3.7.2 Measure Menu Click “Measure” in main menu.
  • Page 54 DSO3062L/DSO3062AL Digital Oscilloscope     1.Source The user can use the “Source” menu to select a measure source. 2. Vertical Maximum: Voltage of the absolute maximum level, Measured over the entire waveform Minimum: Voltage of the absolute minimum level, Measured over the entire waveform Peak To Peak: Peak-to-peak = Max –Min, Measured over the entire waveform...
  • Page 55 DSO3062L/DSO3062AL Digital Oscilloscope     3.Horizontal Period: Time to take for the first signal cycle to complete in the waveform Frequency: Reciprocal of the period of the first cycle to complete in the waveform Rise Time: Time taken from lower threshold to upper threshold...
  • Page 56 DSO3062L/DSO3062AL Digital Oscilloscope     4. Clear Measure Clear all measure items on display screen. The Measure Display Window: Note: The results of the automatic measurements will be displayed on the bottom of the screen. Maximum 8 results could be displayed at the same time. When there is no room, the next new measurement result will make the previous results moving left, out of screen.

  • Page 57: The Display System

    DSO3062L/DSO3062AL Digital Oscilloscope     3.8 The Display System 3.8.1 Display Type Click “Type” in “Display” menu. The following figure shows the type parameters setting. If the Vectors type mode is selected, the waveform will be displayed as following figure.
  • Page 58 DSO3062L/DSO3062AL Digital Oscilloscope     If the Dots type mode is selected, the waveform will be displayed as following figure. 3.8.2 Display Grid Click “Display” in main menu The grid shows: USER’S MANUAL...
  • Page 59 DSO3062L/DSO3062AL Digital Oscilloscope     The grid not shows: 3.8.3 Intensity Click “Display->Intensity” in main menu. The following figure shows the intensity dialog. It shows the display parameters setting. You can change the grid and waveform color intensity in this dialog.
  • Page 60 DSO3062L/DSO3062AL Digital Oscilloscope     3.8.4 Logic Channel Setting Click “Display->Logic Channel” in main menu. The following figure shows the intensity dialog. It shows the Logic Channel setting.   You can change the channel’s icon size in the dialog. Select LA Channel: Select a channel to set parameter.

  • Page 61: Zoom In/Out And Drag Waveforms

    DSO3062L/DSO3062AL Digital Oscilloscope     3.9 Zoom In/Out and Drag Waveforms The software will stop updating waveform after the user clicked “Stop” button. The user can change the waveform display by adjusting the scale and position. When you change the scale, the waveform display will increase or decrease in size.
  • Page 62 DSO3062L/DSO3062AL Digital Oscilloscope     Drag The user can modify the waveform position after clicked “Drag” in “Acquire” menu following the following steps. 1.Select Channel: 2.Set the Move Step: 3.Change the waveform position: USER’S MANUAL...

  • Page 63: Interpolation

    DSO3062L/DSO3062AL Digital Oscilloscope     3.10 Interpolation At the time base 40ns/div or faster, user can use the 3 different interpolation mode to get waveforms of different smoothness. The Step Interpolation: Linear Interpolation: USER’S MANUAL...
  • Page 64 DSO3062L/DSO3062AL Digital Oscilloscope     The Sin(x)/x Interpolation: Note: The default interpolation mode is Sin(x)/x. Acquisition When you acquire a signal, the oscilloscope converts it into a digital form and displays a waveform. The acquisition mode defines how the signal is digitized and the time base setting affects the time span and level of detail in the acquisition.

  • Page 65: Acquisition Modes

    DSO3062L/DSO3062AL Digital Oscilloscope     3.11 Acquisition Modes There are two acquisition modes: Normal, Average and Peak Detect. Normal: In this acquisition mode, the oscilloscope samples the signal in evenly spaced intervals to construct the waveform. Average: In this acquisition mode, the oscilloscope acquires several waveforms, averages them, and displays the resulting waveform.
  • Page 66 DSO3062L/DSO3062AL Digital Oscilloscope     In “PrintPreview” window, use the “Zoom In” button and the “Zoom Out” button to change the size of the waveform graph. Click the “Close” button to turn this window off and click the “Print” button to print the report.

  • Page 67: Chapter 4 Application Example

    DSO3062L/DSO3062AL Digital Oscilloscope     Chapter 4 Application Example     Simple Measurement Capturing a Single-Shot Signal The Application of the X-Y Taking Cursor Measurement Logic Analyzer Arbitrary Waveform Generator USER’S MANUAL...

  • Page 68: Simple Measurement

    DSO3062L/DSO3062AL Digital Oscilloscope     4.1 Simple Measurement To acquire and display a signal, please do the steps as follows: 1. Connect signal to CH1 by using probe 2. Click the button on toolbar or “Acquire -> Auto Setup” on menu.

  • Page 69: Capturing A Single-Shot Signal

    DSO3062L/DSO3062AL Digital Oscilloscope     4.2 Capturing a Single-Shot Signal To capture a single event, it needs to gather some pre-test knowledge of the signal in order to set up the trigger level and slope correctly. For example, if the event is derived from 3.3V COMS logic, a trigger level of 1.2 or higher Volts should work on a rising edge.
  • Page 70 DSO3062L/DSO3062AL Digital Oscilloscope     pattern representing the input and the output characteristics of the circuit. 6. Adjust the scale and offset of the horizontal and vertical to a desirable waveform display. The following picture shows a typical example. 7. Apply the Ellipse Method to observe the phase difference between the two channels.

  • Page 71: Taking Cursor Measurements

    DSO3062L/DSO3062AL Digital Oscilloscope     4.5 Taking Cursor Measurements Use cursors to make time and amplitude measurements on a waveform quickly. Measure the Peak Frequency or Time of the First Sine Waveform Do these steps: 1. Click “Cursor->Source”, select CH1 (select CH2 if you want measure CH2).
  • Page 72 DSO3062L/DSO3062AL Digital Oscilloscope     2. Click “Cursor->Type”, select Horizontal. 3. Push left mouse button, and the Horizontal lines appear. 4. Drag the mouse button to the point you want to measure. 5. Release the left mouse button, the voltage difference will be shown at the status bar.
  • Page 73 DSO3062L/DSO3062AL Digital Oscilloscope     Trace the Amplitude: Read the details showing in the status bar. Note: Click “Cursor->Type”, select “Cross”, you can measure time and amplitude at one time. USER’S MANUAL...

  • Page 74: Logic Analyzer

    DSO3062L/DSO3062AL Digital Oscilloscope     4.6 Logic Analyzer Set Bus Click the menu “Setup”-> “Bus”. LA Control Panel: Level A: Logic threshold range of D0-D7 is -6V~+6V. Level B: Logic threshold range of D8-D15 is -6V~+6V. DSO3062AL has 16 signals, A0-A15. You can assign parts of them.
  • Page 75 DSO3062L/DSO3062AL Digital Oscilloscope     The LA BUS reference points of the displayed waveforms. Display Style: You can set the display style of the bus in the waveform, Analog or Digital. Analog: Digital: Display Format: The format of the bus data displayed on the waveform.
  • Page 76 DSO3062L/DSO3062AL Digital Oscilloscope     Plug-in I Click “Setup”-> “Plug-in” Select the plug-in and click the “Set” button, you can set up the configurations of the plug-in. USER’S MANUAL...

  • Page 77: Waveform Generator

    DSO3062L/DSO3062AL Digital Oscilloscope     4.7 Waveform Generator Caution: This part is only used for DSO3062AL. DSO 3062AL can also be used as the Arbitrary Waveform Generator, with one channel of arbitrary waveform output, 8 Bits output, synchronized signal out puts. User can edit the waveform arbitrary by the mouse or choose the regular waveforms such as Sine, Square, AM/FM, Ramp, Trapezia, Gause, Arb, Exponent, White.
  • Page 78 DSO3062L/DSO3062AL Digital Oscilloscope     Waveform Parameter Setup Select a wave type, and you can set the “Parameters” in the sidebar. Generate the Sine waveform To output a Sine Wave, please do the following steps: 1. Press the check box "On/Off" to open the wave output function.
  • Page 79 DSO3062L/DSO3062AL Digital Oscilloscope     The Square waveform window as the following: Generate the AM/FM waveform To output an AM/FM Wave, please do the following Steps: 1. Press the check box "On/Off" to open the wave output function. 2. Select the Wave Type "AM/FM".
  • Page 80 DSO3062L/DSO3062AL Digital Oscilloscope     Generate the Ramp waveform To output a Ramp Wave, please do the following steps: 1. Press the check box "On/Off" to open the wave output function. 2. Select the Wave Type "Ramp". 3. Set the Wave Parameters: Frequency: Set the output wave frequency.
  • Page 81 DSO3062L/DSO3062AL Digital Oscilloscope     The Trapezia waveform window as the following: Generate the Gause waveform To output a Gause Wave, please do the following steps: 1. Press the check box "On/Off" to open the wave output function. 2. Select the Wave Type "Gause".
  • Page 82 DSO3062L/DSO3062AL Digital Oscilloscope     Generate the Exponent waveform To output an Exponent Waveform, please do the following steps: 1. Press the check box "On/Off" to open the wave output function. 2. Select the Wave Type "Exponent". 3. Set the Wave Parameters: Frequency: Set the output wave frequency.
  • Page 83 DSO3062L/DSO3062AL Digital Oscilloscope     3. Set the Wave Parameters: Amplitude: Set the output wave amplitude. The White noise waveform window as the following: USER’S MANUAL...
  • Page 84 DSO3062L/DSO3062AL Digital Oscilloscope     Synchronized output If you generate a waveform by software, there is a synchronized signal output from “SYNC” terminal. The signal is square waveform, the frequency of which is equal to the waveform you generated. For example, if you generated an 1 KHz, sine waveform, you will also generate an 1 KHz, square waveform simultaneously.

  • Page 85: Chapter 5 Appendix

    DSO3062L/DSO3062AL Digital Oscilloscope     Chapter 5 Appendix Appendix A: Specifications Appendix B: General Maintenance USER’S MANUAL...

  • Page 86: Appendix A: Specifications

    DSO3062L/DSO3062AL Digital Oscilloscope     Appendix A: Specifications Specifications Table: Vertical Analog Channels Bandwidth 60MHz(-3dB) Rise Time 5.8ns Input Impedance Resistance: 1MΩ ; Capacitance: 25 pF Input Sensitivity 10mV/div to 5V/div Input Coupling AC/DC/GND Vertical Resolution 8 bits Memory Depth...
  • Page 87 DSO3062L/DSO3062AL Digital Oscilloscope     Logic Analyzer High input impendence 200K(C=10p) Input Voltage range -60V~60V Logic threshold range -8~8V Max Sample Rate 100MHz Bandwidth 10MHz Compatible input TTL, LVTTL, CMOS, LVCMOS, ECL, PECL, EIA Storage depth 10K-68M/CH Arbitrary Waveform Generator Mode(DSO3062AL)

  • Page 88: Appendix B: Accessories

    DSO3062L/DSO3062AL Digital Oscilloscope     Appendix B: Accessories X1, X10 two passive probes. The passive probes have a 6MHz bandwidth (rated 100Vrms CAT III) when the switch is in the X1 position, and a maximum bandwidth (rated 300Vrms CAT II) when the switch is in the X10 position.

  • Page 89: Appendix C: General Maintenance

    DSO3062L/DSO3062AL Digital Oscilloscope     Appendix C: General Maintenance General Care Do not store or leave the oscilloscope where the device will be exposed to direct sunlight for long periods of time. Caution To avoid damages to the device or probes, do not expose them to sprays, liquids or solvents.
