Summary of Contents for Hantek LA5034

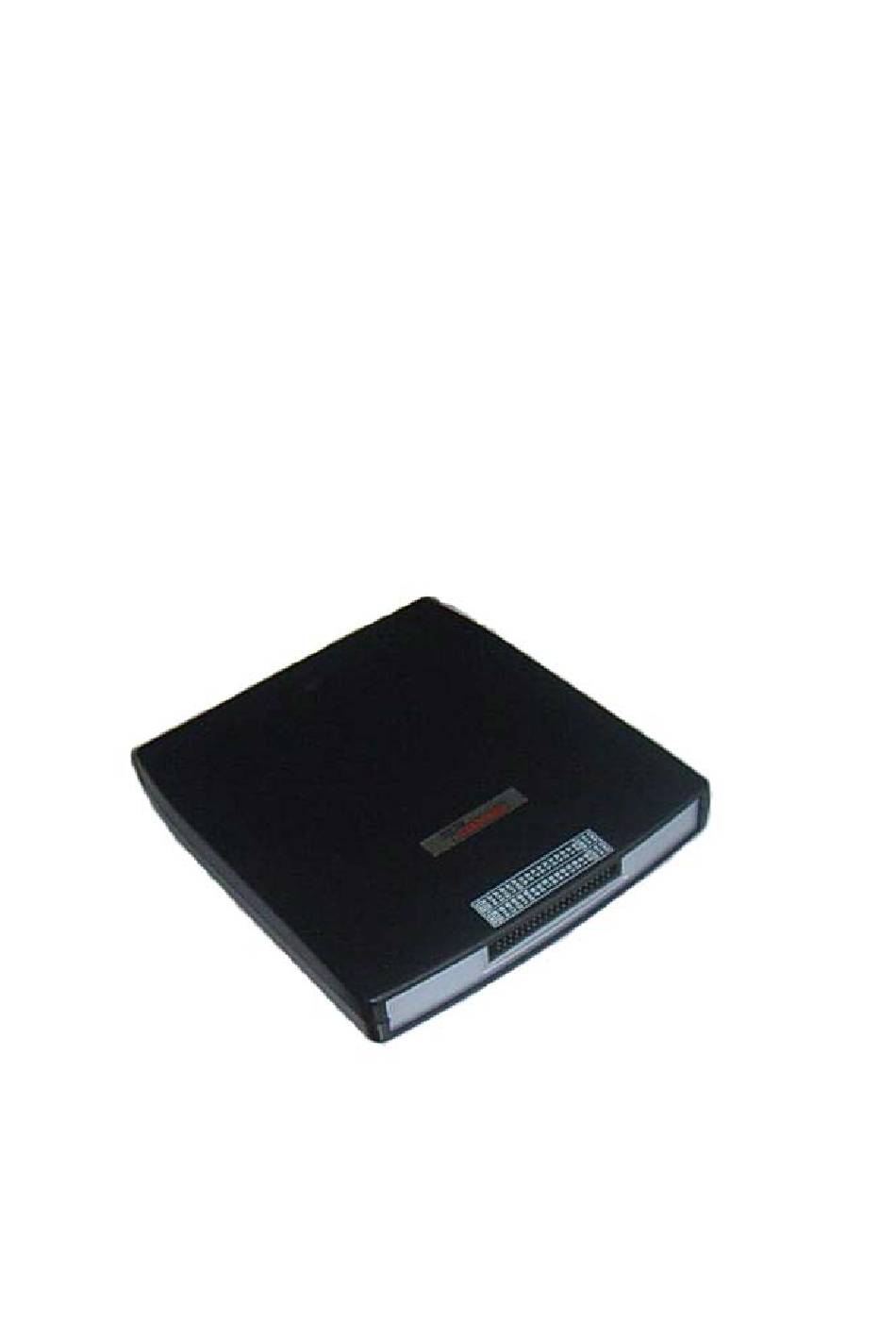

- Page 1 User’s Guide LA5034 Operation Manual...
-
Page 2: Table Of Contents
Content General safety summary ................... I Introduction ...................... II Chapter 1 Getting started ................. 1 System Requirements ............... 2 Installing Hardware ................3 Installing Software ................6 User Interface .................. 10 Chapter 2 Menu ..................... 11 ... -
Page 3: General Safety Summary
Maintain proper ventilation. Do not operate in the humid environment. Do not flammable and explosive environment operation. Please keep the product clean and dry surface. LA5034 USB User’s Manual... -
Page 4: Introduction
ASCII that information to facilitate the repair process and debug. The LA5034 can be triggered in a variety of ways, can display a very long data stream, on the basis of the analysis of that part of the information to make accurate positioning, and capture appropriate information for software analysis by using its tracking function trigger operation procedures. -
Page 5: Chapter 1 Getting Started
LA5034 Chapter 1 Getting started This chapter focuses on the following topics: System Requirements Installing hardware Installing software Understanding of the user interface LA5034 User’s Manual... -
Page 6: System Requirements
Operating System Windows NT/2000/XP/Vista Memory 128MB Graphic Card Microsoft DirectX supported Screen resolution: 1024x768 Color depth: 16bit Recommended System Requirements Operating System Windows 2000/XP/Vista/Win 7 Memory 256MB Graphic Card Microsoft DirectX supported Screen resolution: 1024x768 Color depth: 16bit LA5034 User’s Manual... -
Page 7: Installing Hardware
LA5034 Installing Hardware 1. Connect the A-Type Plug of USB cable to your PC’s USB port. 2. Connect the B-Type Plug of USB cable to LA5034’s USB port. 3. New hardware is found. 4. New hardware search wizard starts. LA5034 User’s Manual... - Page 8 LA5034 5. New hardware search wizard starts to search 6. New hardware wizard installs software LA5034 User’s Manual...
- Page 9 Caution: Do not disconnect any device from the USB bus while the computer is communicating with the LA5034, or you may lose data and/or your ability to communicate with the LA5034. If the LED is illuminated but the turns off, the computer has lost communication with the LA5034.To restore communication, disconnect the...
-
Page 10: Installing Software
1. While in Windows, insert the installation CD into the CD-ROM drive. 2. The installation should start up automatically. Otherwise in Windows Explorer, switch to the CD-ROM drive and run "Setup.exe". 3. The LA5034 Installation is started. Click 'Next' to continue. LA5034 User’s Manual... - Page 11 LA5034 4. Choose a destination directory. Click 'Next' to continue. 5. Check the setup information. Click Next to start copying of files. LA5034 User’s Manual...
- Page 12 LA5034 6. This Status dialog is displayed during copying of files. Updating Your System Configuration. LA5034 User’s Manual...
- Page 13 LA5034 8. The installation is complete. LA5034 User’s Manual...
-
Page 14: User Interface
LA5034 User Interface LA5034 provide users a simple and full-featured interface so that users do not have to spend a lot of time to learn. LA5034 provide clock panel, waveform panel, bus panel, measurement panel, trigger panel and plug manager. -
Page 15: Chapter 2 Menu
LA5034 Chapter 2 Menu This chapter focuses on the following topics: File View Setup Analyzer Help LA5034 User’s Manual... -
Page 16: File
Export As CSV File: Export data to file as “CSV” Export As TXT File: Export data to file as “TXT” Export As BMP File: Export data to file as “BMP” Print…: Print the current waveform Exit: Exit LA5034 LA5034 User’s Manual... -
Page 17: View
Show or hide the trigger line of waveform Show Mark: Show or hide the mark of waveform Show Measurement: Show or hide the measurement of waveform Zoom In: Enlargement waveform view Zoom Out: Reduction waveform view Zoom All: Show entire waveform view LA5034 User’s Manual... -
Page 18: Setup
LA5034 Setup Signal Name Setup: Set the signal name. Bus Setup: Configure the bus and signals. Trigger Setup: Configure the trigger condition. LA5034 User’s Manual... -
Page 19: Analyzer
Scroll to Mark: Causes the waveform view to roll to the mark position New Mark: Create a new Mark New Measurement: Create a new measurement. Plug Manager: Configure the plug of LA5034 Auto set: Set the waveform optimal. LA5034 User’s Manual... -
Page 20: Help
LA5034 Help Help Content: Open the User Manual About: Show the copyright of LA5034 LA5034 User’s Manual... -
Page 21: Chapter 3 Advanced
LA5034 Chapter 3 Advanced This chapter focuses on the following topics: Clock Panel Bus Panel Waveform Panel Measurement Panel Export Data LA5034 User’s Manual... -
Page 22: Clock Panel
Horizontal: Set the clock and sample rate Inner Clock: When inner clock is chosen, the LA5034 will sample at a rate specified by the “Sample Rate” combo box. Ext Clock: When ext clock is chosen, you can select which clock input will be used for sampling. -
Page 23: Bus Panel
Bus Panel Click the menu “Setup”->”Bus Setup…” to open the dialog. LA5034 has 34 signals, ACK, BCLK, A0 ~A15, B0~B15. You can assign the parts of them to some bus. The list box contains all of the bus; you can add or delete the bus. - Page 24 3. Double-click the name of the bus, which is “NewBus1” in this example. Then popup an edit box, in which you can input the bus name “My Bus”. LA5034 User’s Manual...
- Page 25 LA5034 4. Then Click “OK”, the “My bus” has been added to the waveform. LA5034 User’s Manual...
-
Page 26: Waveform Panel
2. Display Order: The order of the signals displayed in the list. 3. Display Style: You can set the display style of the bus in the waveform, Analog or Digital. 4. Color: You can modify the color of the bus displayed in the waveform. LA5034 User’s Manual... - Page 27 LA5034 5. Show Property: Open the bus setup panel. Click the waveform with the right mouse button, the waveform help menu popup. You can operate the LA5034 by the menu. LA5034 User’s Manual...
-
Page 28: Measurement Panel
Click the “Delete”; you can delete the measurement item selected in the list. Click the “Show Property”; you can modify the measurement. Also, you can click the main menu “Analyzer”->”New Mark” to add new mark for measurement. LA5034 User’s Manual... -
Page 29: Export Data
LA5034 Export Data Click the menu “File”; you can export the data to file. If you select the CSV file, you will export the data as the following. LA5034 User’s Manual... -
Page 30: Chapter 4 Trigger
LA5034 Chapter 4 Trigger This chapter focuses on the following topics: Base Trigger Setup Advance Trigger Setup LA5034 User’s Manual... -
Page 31: Base Trigger Setup
Base Trigger Setup Click the menu “Setup”->”Trigger Setup”, you can configure the trigger condition. LA5034 provide 6 base triggers for you. Single signal: Rising edge; Falling edge; Rising or falling edge. Bus: Data, Data value delay, Data and edge 1. Rising edge: Select the “Rising edge”... - Page 32 Trigger at x time after the appearance of a specified value 6. Data and edge: Trigger at the appearance of a specified value on the selected bus and rising, falling, or rising or falling edge of the selected signal. LA5034 User’s Manual...
-
Page 33: Advance Trigger Setup
There are two trigger conditions: trigger A and trigger B. You can set the trigger mode by clicking the Trigger Mode group box. There are four parts in each condition, Data, Duration, Edge and Relative trigger value. LA5034 User’s Manual... -
Page 34: Chapter 5 Plug Manager
LA5034 Chapter 5 Plug Manager This chapter focuses on the following topics: Summary Example LA5034 User’s Manual... -
Page 35: Summary
The list box contains all of the plugs installed in your computer. You can add them to waveform by checking them. Select a plug and click the “Edit” button, you can modify the property of the plug. LA5034 User’s Manual... -
Page 36: Example
2. Open the plug manager and the I C setup dialog. Click menu “Analyzer”->“Plug-in-Manager”, then select I C and click the “E dit” button. 3. Click menu “Setup”-> “Trigger Setup” or toolbar , open the bus setup dialog, do these steps: LA5034 User’s Manual... - Page 37 LA5034 4. Select “Normal” in trigger mode. 5. Then you can see the following. LA5034 User’s Manual...
- Page 38 I2C signals. If there is measuring instrument line interference, user can adjust the trigger voltage value. Set initial trigger voltage value for SCL and SDA is 1.5V, try to adjust the value to obtain the stable signal. LA5034 User’s Manual...
-
Page 39: Appendix
LA5034 Appendix Hardware specification Input connector pin assignments Block Diagram Cleaning and Maintenance LA5034 User’s Manual... -
Page 40: Hardware Specification
-6V~6V Max Sample Rate 500 MHz Max input Signal bandwidth 150 MHz Min time resolution Sample Depth 2KSample Trigger’s Max rate 250 MHz TTL,LVTTL,CMOS,LVCOMS,ECL,PEC Compatible input L,EIA Electrostatic Protected 15KV Power USB Port Temperature range -10℃~60℃ LA5034 User’s Manual... -
Page 41: Channels
Pin Number Wire ID Wire Color Contact Color Ground Black Black BCLK Blue Blue Ground Black Black Black Orange White Orange Gray Orange Blue Orange Green Orange Yellow Orange Orange Orange Orange Black Orange White Orange Gray Orange LA5034 User’s Manual... - Page 42 LA5034 Blue Orange Green Orange Yellow Orange Orange Orange Orange Ground Black Black LA5034 User’s Manual...
-
Page 43: Block Diagram
LA5034 Block Diagram LA5034 User’s Manual... -
Page 44: Cleaning And Maintenance
Don’t put the equipment under the sun for a long time. Put it in wind to the best of one's abilities Caution: In order to not mangle the equipment, you should not put it in fog, water or impregnate. LA5034 User’s Manual...
