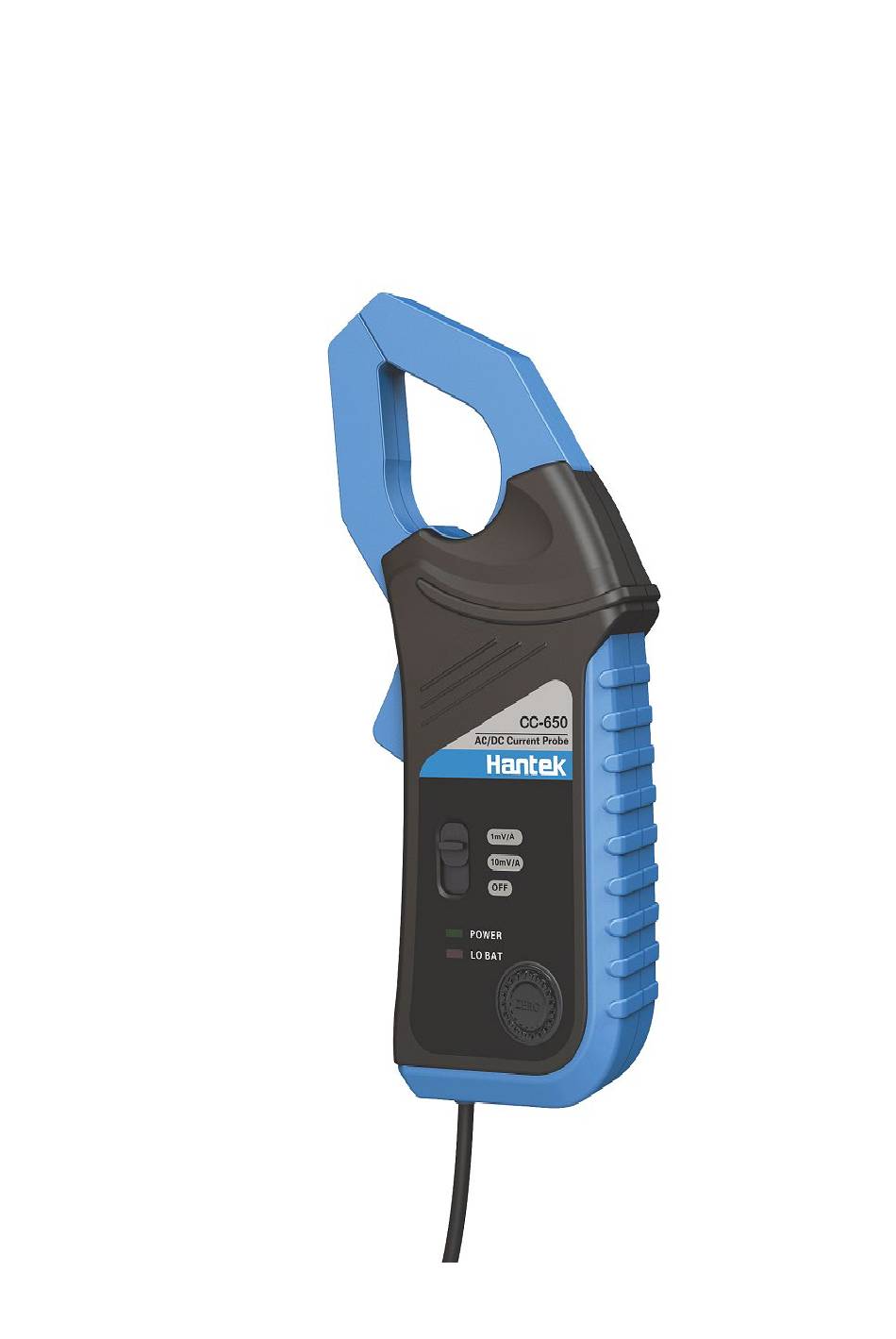

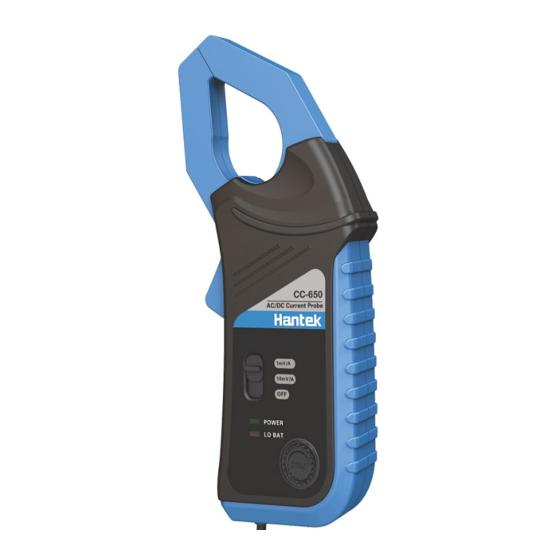

CC-650 AC/DC CURRENT PROBE

OPERATOR'S MANUAL

Page 1 CC-650 AC/DC CURRENT PROBE OPERATOR’S MANUAL...
Page 2 INTRODUCTION The multimeter/oscilloscope can directly measure the DC current of no more than 650A and the AC current of no more than 500A through the AC/DC current probe, and the measurement frequency is up to 5KHz. When measuring current with this current probe, there is no need to destroy the current loop or peel off the insulating layer.
Page 3 test is 5×1000=5000mA. When connecting an oscilloscope to measure AC current, you can use the measurement function of the oscilloscope to measure the peak-to-peak value and effective value of the AC current. For details, please refer to the operating manual of the corresponding oscilloscope.
Page 4 Optional accessories: adapter BNC/banana-KJJ Electrical characteristics :(23±5℃, 70%R.H. maximum)  Effective measuring range 10mV/A: 1A to 40A, DC or rms AC 1mV/A: 1A to 500A, rms AC 1A to 650A, DC Accuracy System accuracy: The accuracy of the current probe and the accuracy of the digital multimeter or oscilloscope.
