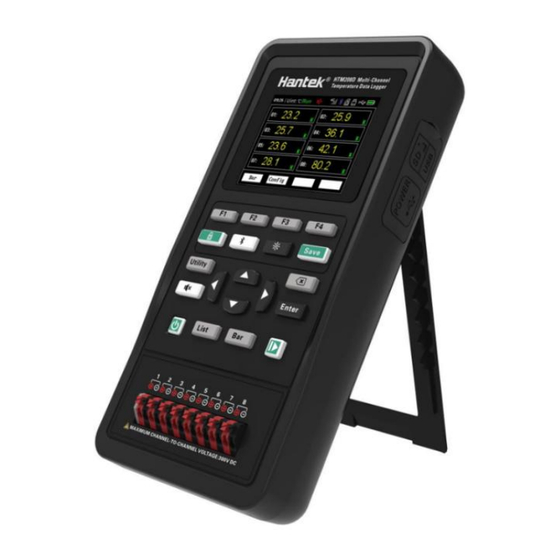

- Page 1 HTM200 Series Multi-channel Temperature Recorder User Manual 2022.06...
- Page 2 This document is copyrighted by Qingdao Hantek Electronics Co., LTD. Statement Qingdao Hantek Electronics Co., Ltd. reserves the right to amend this document without prior notice. Qingdao Hantek Electronics Co., Ltd. promises that the information provided is correct and reliable but does not guarantee that this document is without error.
-
Page 3: Table Of Contents
2 Product features ......................... 7 3 Document Overview ........................8 4 Quick Start ..........................10 4.1 General Inspection ..........................10 4.2 Appearance and Dimensions .......................11 4.3 Preparation before Use ......................... 11 4.3.1 Adjusting the Stand ....................... 11 Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... - Page 4 4.5 Safety lock hole ..........................22 5 Function introduction .......................23 5.1 Measurement list ..........................23 5.2 Measurement bar chart ......................... 23 5.3 Channel configuration ........................24 5.4 System settings ..........................25 5.4.1 User ................................25 HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD...
- Page 5 7.2.2 Setting Interface ............................. 35 8 Windows Software ........................39 8.1 Software Download and Installation ...................39 8.2 Software Functions .........................40 8.2.1 User Interface ............................40 8.2.2 File Storage ............................. 40 8.2.3 Connection Method ..........................41 Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual...
- Page 6 8.2.4 Record ..............................44 8.2.5 Display ..............................44 8.2.6 Shortcuts ..............................45 8.2.7 Channel settings ..........................46 9 Troubleshooting ........................47 10 Appendix ..........................48 10.1 Appendix A: Accessories ......................48 HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD...
-
Page 7: Figures
Figure 7.2 Main interface of the Android application ........... 34 Figure 7.3 Channel settings ....................35 Figure 7.4 Android application setting interface ............35 Figure 7.5 Data source selection ..................36 Figure 7.6 Import network data ..................36 Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... - Page 8 Figure 8.7 Viewing historical data ..................43 Figure 8.8 Record menu .....................44 Figure 8.9 Display menu .....................44 Figure 8.10 Track ......................... 44 Figure 8.11 Zoom ......................... 45 Figure 8.12 Shortcuts ......................45 Figure 8.13 Channel settings .................... 46 HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD...
- Page 9 Table 5.3 User menu table ....................26 Table 5.4 File menu table ....................27 Table 5.5 Function menu descriptions ................27 Table 5.6 Error code descriptions ..................29 Table 6.1 Network connection status symbols .............. 32 Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual...
-
Page 10: Safety Requirements
Maintain proper ventilation. Do not operate in a damp environment. Do not operate in inflammable and explosive environment. Please keep the product surface clean and dry. Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 11: Safety Notices And Symbols
Indicates that you may damage the product or other property if you do so. Safety terms on the product: Warning: Indicates that if you do not perform this operation, potential harm may be caused. Safety symbols on the product: Warning HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 12: Measurement Category
For example, electricity meters, measurements on primary overcurrent protection equipment, and measurements on pulse control units. Working Environment Temperature Operating: 0℃ - 50 ℃ Non-operating: -20℃ - 60 ℃ Humidity ≤+104℉(≤+40°C): ≤90%RH 106℉~122℉ (+41°C ~50°C): ≤60%RH Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... - Page 13 Pollution level 1: No pollution, or only dry non-conductive pollution. This pollution level has no impact. For example, clean room or air-conditioned office environment. Pollution level 2: Generally, only dry non-conductive pollution occurs. Transient HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD...
-
Page 14: Maintenance And Cleaning
Before powering on again, ensure that the device is dry enough to avoid electrical short circuit or personal injury caused by moisture. Environmental Considerations The following symbol indicates that the product complies with WEEE Directive Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... - Page 15 To avoid the release of harmful substances and reduce the cost of natural resources, it is recommended that appropriate methods be used to recycle this product to ensure most of the materials can be properly reused. HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD...
-
Page 16: Product Features
Widely used in cold storage, warehouse temperature, electronic components surface measurement and other fields. HTM200 series handheld multi-channel temperature recorder adopts high-performance 32-bit ARM microprocessor control, can simultaneously collect multi-channel temperature data in real time, support list display and bar chart display, upper and lower limit alarm, 11 kinds of thermocouple types and broken couple detection function. -
Page 17: Document Overview
Tip: The latest version of this manual can be downloaded at http://www.hantek.com Software version Software update may change or add product functions. Please visit Hantek website to obtain the latest version. Document format conventions: Button Use icons to represent front panel buttons, for example, represents “Utility"... -
Page 18: Table 3.1 Model List
Document Overview Model Channel U disk Bluetooth SD card 4G (China) (General) HTM202E Support HTM204B HTM204C HTM204D Support HTM204E Support HTM208B HTM208C HTM208D Support HTM208E Support Table 3.1 Model list Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 19: Quick Start
Check the instrument If the appearance of the instrument is damaged, the instrument does not work properly, or fails the performance test, please contact the dealer responsible for the business. HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 20: Appearance And Dimensions
When using the instrument, the user can open the stand to tilt the instrument upward for easy operation and observation. When the instrument is not in use, the user can close the stand for easy placement or handling. Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 21: Charging
When the battery is low, the instrument will prompt "power off after 5s". In order to avoid automatic shutdown due to insufficient power, please charge in time. HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 22: Turn-On Check
2 - represents connecting the negative end of the thermocouple Note: 1. The isolation voltage between channels should not exceed 300VDC, otherwise the instrument may be damaged. 2. The red connector of the thermocouple line is the positive end. Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 23: Product Introduction
Corresponding to the four menus displayed at the bottom of the LCD. 3 Button lock Press the button, the indicator light will be on and the button lock symbol will be HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... - Page 24 10 Thermocouple connection end 11 Shortcuts for saving files Quickly access the page for saving files. 12 Screen brightness shortcut button Adjust screen brightness in a loop. 13 Delete button Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual...
-
Page 25: Side Panel Overview
Figure 4.5 Side panel 1 USB storage interface Insert a USB flash drive (FAT32 format) to save the file. 2 Type - C interface Connect type-c wire for charging and remote control. HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 26: Top Panel Overview
2 SD card slot Insert a SD card (FAT32). Only for models with SD card function. 4.3.10 User Interface Figure 4.7 User interface 1 Status display Status Mark Instructions display Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... - Page 27 3 seconds to open the network transfer function. The 4G symbol will be displayed in the status bar. 4G error When some errors occur, such as SIM card missing, poor signal HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD...
-
Page 28: Storage And Replacement Of Batteries
50% to 70% and be removed from the instrument to store in a dry and cool environment. If the lithium battery appears broken, rust, leakage, swelling, etc., it needs to be taken out immediately and scrapped. Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 29: Battery Replacement
2 Take out the battery from the negative pole, and then take out the battery after the negative pole leaves. 3 When installing the battery, ensure that the positive terminal of the battery has HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 30: Figure 4.9 Install The Battery
4 Install the battery. Figure 4.9 Install the battery Note: When replacing the battery, pay attention to the positive and negative Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 31: Safety Lock Hole
Insert the other end into the safety lock. Turn the key clockwise to lock the instrument and remove the key to meet the most basic anti-theft requirements. Figure 4.10 Safety lock hole HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 32: Function Introduction
< Bar chart >. If you are on any other page, you can just press to enter the < Bar chart > page. The < Bar chart > page mainly highlights the proportion of the measurement results to the limit value. Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 33: Channel Configuration
The upper limit value can be set ranges from -200 ° C to 2480 ° C. Lower limit Set the temperature lower limit. The initial value is -200. When the HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 34: System Settings
User to enter the < User > page, use the up or down arrow buttons to select the corresponding function, and then press the Edit button to change the corresponding settings. Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 35: File
Users can save temperature data in real time to USB memory or Micro SD card (optional). Press > File to the < File > page. If you are on any other page, you can just press to quickly enter the < File > page. HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 36: Table 5.4 File Menu Table
Time interval options: 5 s, 30 s, 1 min, 10 min, 30 min, 60 min. 5 Press the start button, the instrument will start recording data, and the < List > page Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 37: Service
At this time, the indicator light at the lower right corner starts flashing red and green, indicating that the instrument has entered Dfu mode. Release F1. HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 38: Error Code Description
The temperature is out of the current thermocouple testable range. ERROR1 Please refer to the Data Manual of this series for details of measuring ranges of different thermocouples. ERROR2 The cold end temperature is abnormal. Table 5.6 Error code descriptions Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 39: Remote Control And Data Transmission
Control via USB Press the power button to turn on the instrument. Use the USB cable to connect the instrument to an Android phone or a Windows computer to carry out USB communication. HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 40: Control Via Bluetooth
Bluetooth function, and all the buttons will be restored to use. The Bluetooth name corresponding to the instrument is HTM-XXXXXX. Bluetooth communication protocol: Support BLE4.2 protocol, backward compatibility. Network data transmission The instrument with 4G (universal) module supports universal 4G function Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 41: Table 6.1 Network Connection Status Symbols
The instrument will upload temperature data to the background server at a set interval and frequency. Holding down the exit button will disable the 4G network transmission function. HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 42: Android Application
Android application Android application Application download and installation Users can download the instrument's Android mobile application from Hantek's official website: http://hantek.com.cn/products/detail/12273 It can also be downloaded by scanning the QR code on the back of the instrument. Figure 7.1 Application download QR code Use an Android phone to install the application of the instrument, and the icon will be displayed on the phone desktop after installation. -
Page 43: Application Introduction
The main interface will move with the finger. The user can choose to view the line chart or bar chart. C. Gently click any channel to open the channel setting window. You can set alarm HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 44: Setting Interface
The channel names displayed by the application will also change. Figure 7.3 Channel settings 7.2.2 Setting Interface Figure 7.4 Android application setting interface Data source Data source includes Bluetooth, USB, network device and offline simulation. For details Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 45: Figure 7.5 Data Source Selection
Figure 7.6 Import network data Data file export Save the recorded temperature Data to the internal memory of the mobile phone in .csv. The file path is Thermodetector/Data. HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 46: Figure 7.7 Data File Export
Figure 7.9 Delete file Channel settings You can open or close any channel, click "Save" to close the channel of the instrument, and the channel will not be displayed on the home page. Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 47: Figure 7.10 Channel Settings
You can set the range of X and Y axes on a line chart. The X axis is time and the Y axis is temperature. Figure 7.11 Line chart settings Check the update Check whether the application is the latest version. Unit The unit can be set to ℃ and ℉. HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 48: Windows Software
Windows Software Windows Software Software Download and Installation The application software can be downloaded from the Hantek website: http://hantek.com.cn/products/detail/12273 Also you can scanning the QR code on the back of the instrument and download the software. Application software installation Double-click the Setup.exe file and follow the installation wizard to install it. -
Page 49: Software Functions
User Interface Figure 8.1 Windows software user interface Menu Shortcuts Temperature line chart Switch button between line chart and bar chart Temperature list Channel settings 8.2.2 File Storage Figure 8.2 File menu HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 50: Connection Method
After the instrument is successfully connected, double-click the IO icon in the status bar at the lower right corner of the desktop to open "Keysight Connection Expert 2022", and the device will be displayed in the window list. Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 51: Figure 8.4 Communication Connection Window
For the connection method, refer to Control via Bluetooth. Support BLE4.2 protocol, backward compatibility. Choose Connect > Bluetooth, the software will automatically find Bluetooth devices. The Bluetooth name corresponding to the instrument is HTM-XXXXXX. HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 52: Figure 8.6 Bluetooth Connection
Figure 8.7 Viewing historical data Offline simulation mode When there is no connection, you can choose the offline simulation mode, and the temperature data is the simulated random value. Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 53: Record
Select this menu to turn on the tracking function, as shown below, to track the temperature data at a certain point in time. Deselect to turn off tracking. Figure 8.10 Track HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 54: Shortcuts
Click this button to clear all collected temperature data and line charts. Settings You can set the temperature unit of the selected device or remove the selected device. Interval Set the interval for software to obtain the temperature. Copyright Qingdao Hantek Electronics Co., LTD HTM200 user manual... -
Page 55: Channel Settings
1. Channel name: You can click to edit the channel name 2. Channel switch 3. Temperature lower limit 4. Temperature upper limit 5. Reset the channel name 6. Change the thermocouple type HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... -
Page 56: Troubleshooting
2) Check whether the battery voltage is higher than 3.4V. 3) After the above examination, restart the instrument. 4) If you still cannot start up the product normally, please contact Hantek. 2. The screen is too dark to see clearly. -
Page 57: Appendix
This product provides the following accessories. User can obtain all accessories from the local supplier. Standard accessories: • Power adapter • USB cable • Two Type K thermocouple test cables • Product certificate HTM200 user manual Copyright Qingdao Hantek Electronics Co., LTD... - Page 58 Address: Building 35, Lian Dong U Gu, No.780 Baoyuan Road, High-tech Zone, Qingdao, Shandong Province Switchboard: 400-036-7077 E-mail: service@hantek.com Tel: 0532-55678770, 55678772, 55678773 Postcode: 266000 Website: www.hantek.com Qingdao Hantek Electronics Co., LTD...
