Seagull Models Magic Star 3D EP Assembly Manual page 8

MAGIC STAR 3D EP
Wheel collar.
Washer.
Wheel Pant.
C/A glue.

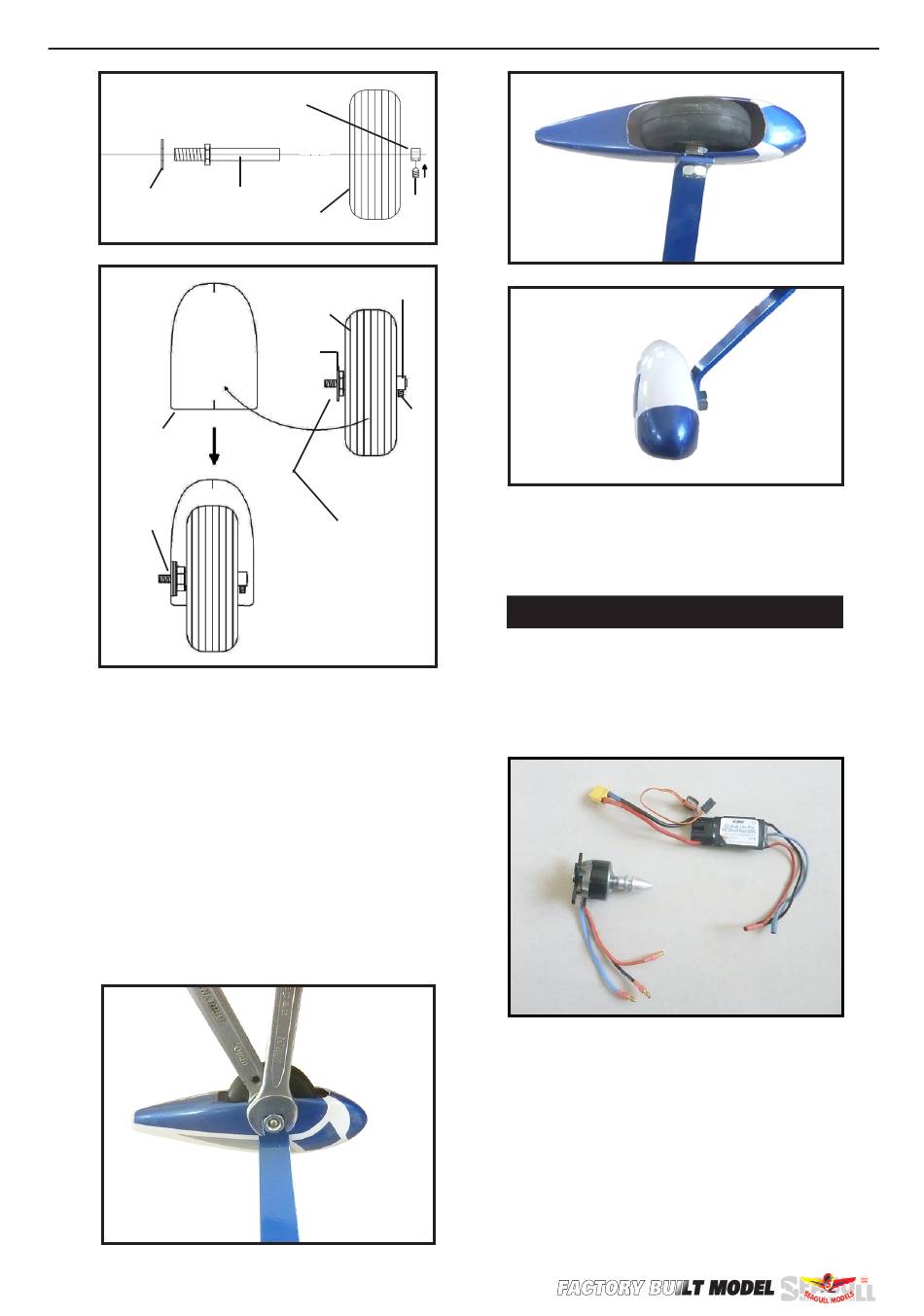

6) Slide the threaded end of the axle
through the hole in the bottom of the
landing gear leg. Use a washer and lock-
nut to tighten the axle to the landing gear.
Make sure to use threadlock on the nut so
it won't vibrate loose in flight as shown.
7) Tighten the setcrews using a hex
wrench to secure the collars on the axle
over the flat spot to retain the wheel as
shown.
8
Axle.
Wheel.
Wheel collar.
Wheel.
Washer.
nut.--
Lite-Plywood
block.
M3
Axle.
M3.
Repeat steps to install remaining wheel
pants to the landing gear.
ELECTRIC POWER CONVERSION.
1) Locate the items neccessary to install
the electric power conversion included
with your model.
2) Recommend the items necessary to in-
stall the electric power conversion parts
included with your model.
Instruction Manual.
