Repeat steps to install the remaining ai-
leron control horn and pushrod.

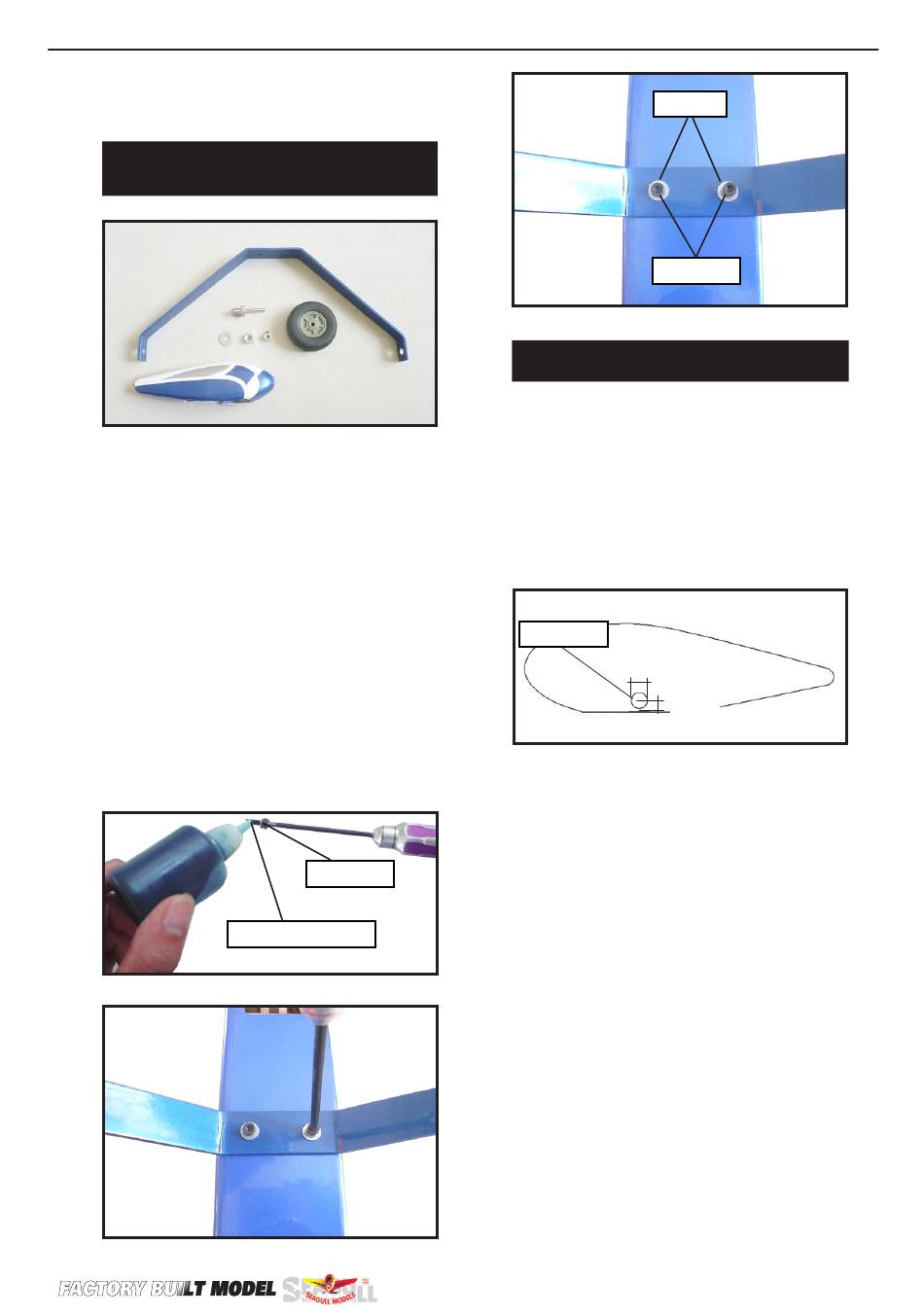

INSTALLING THE MAIN LANDING
GEAR TO FUSELAGE.
1) The blind nuts for securing the land-
ing gear are already mounted inside the
fuselage.
2) Using the hardware provided, mount
the main landing gear to the fuselage.
3) Place the fuselage inverted on the
workbench in a suitable stand. Set the
landing gear in place and use a screw-
drive to secure the landing gear to the fu-
selage using bolts M3x15mm and wash-
ers. Make sure to use the threadlock on
the bolts so they don't vibrate loose.
Thread locker glue.
WWW.SEAGULLMODELS.COM
M3x15mm
C/A glue.
M3x15mm
WHEELS AND WHEEL PANTS.
1) Locate the items neccessary to install
2) Follow diagram below for wheel pant
installation:
Use a drill and 8mm drill bit to drill a
hole in the wheel pants.
Drill a hole.
8mm
14mm
3) You have to trim each axle using a tool
cutting and cut-off wheel.
4) Slide the collar to the axle and setscrew
the collars to secure the collar to the axle
and then slider the wheel on the axle with
a drop of oil on the axle so the wheel will
spin freely when installed. Prepare a sec-
ond collar and tighten the setscrew using
hex wrench to secure the collar to the
axle.
5) Place the wheel assembly in the wheel
pants. The threaded portion of the axle
will fit the notch of the wheel pant as
shown.
.
