MAGIC STAR 3D EP

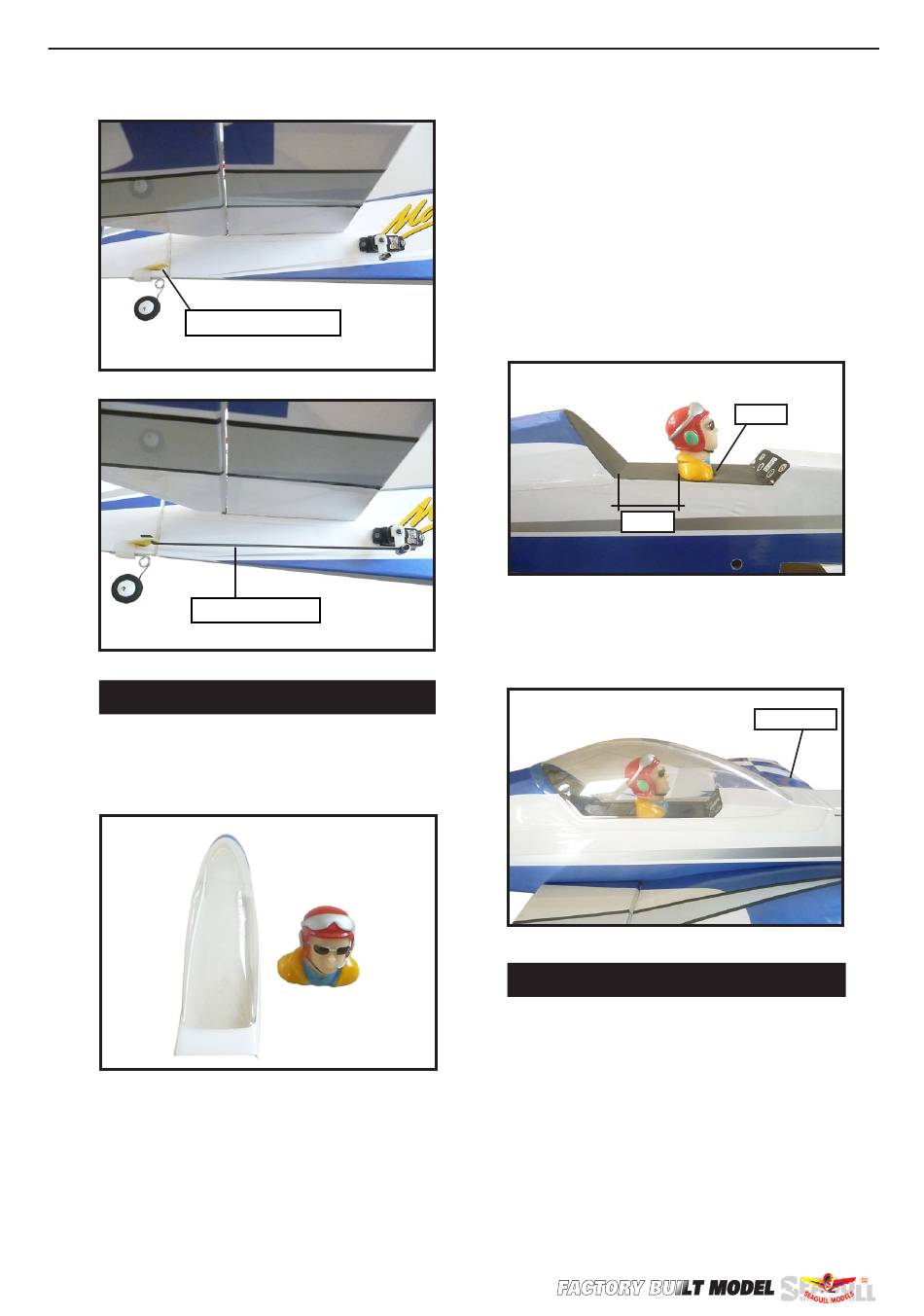

Repeat steps to install the rudder servo.
Rudder control horn.
Rudder pushrod.
INSTALLATION PILOT AND CANOPY.
1) Locate items necessary to install pilot,
.
seats.
2) A scale pilot is included with this ARF.
The Seagull Pilot included fitting well to
the cockpit. (or you can order others scale
pilot figures made by Seagull factory.
They are available at Seagull distributors.)
18
If you are going to install a pilot figure,
please use a sanding bar to sand the base
of the figure so that it is flat.
3) Position the pilot figure on the canopy
floor as show. Locate the oval shaped on
the canopy floor and remove the cover-
ing. Use epoxy to glue this into the base of
the pilot figure and glue the cockpit panel
in place with C/A glue, please see pictures
as shown.
40mm
4) Position the canopy onto the fuselage.
Trace around the canopy and onto the fu-
selage using a felt-tipped pen.
APPLY THE DECALS.
1) If all the decals are precut and ready to
stick. Please be certain the model is clean
and free from oily fingerprints and dust.
Position decal on the model where de-
sired, using the photos on the box and aid
in their location.
Instruction Manual.
Epoxy.
C/A glue.
