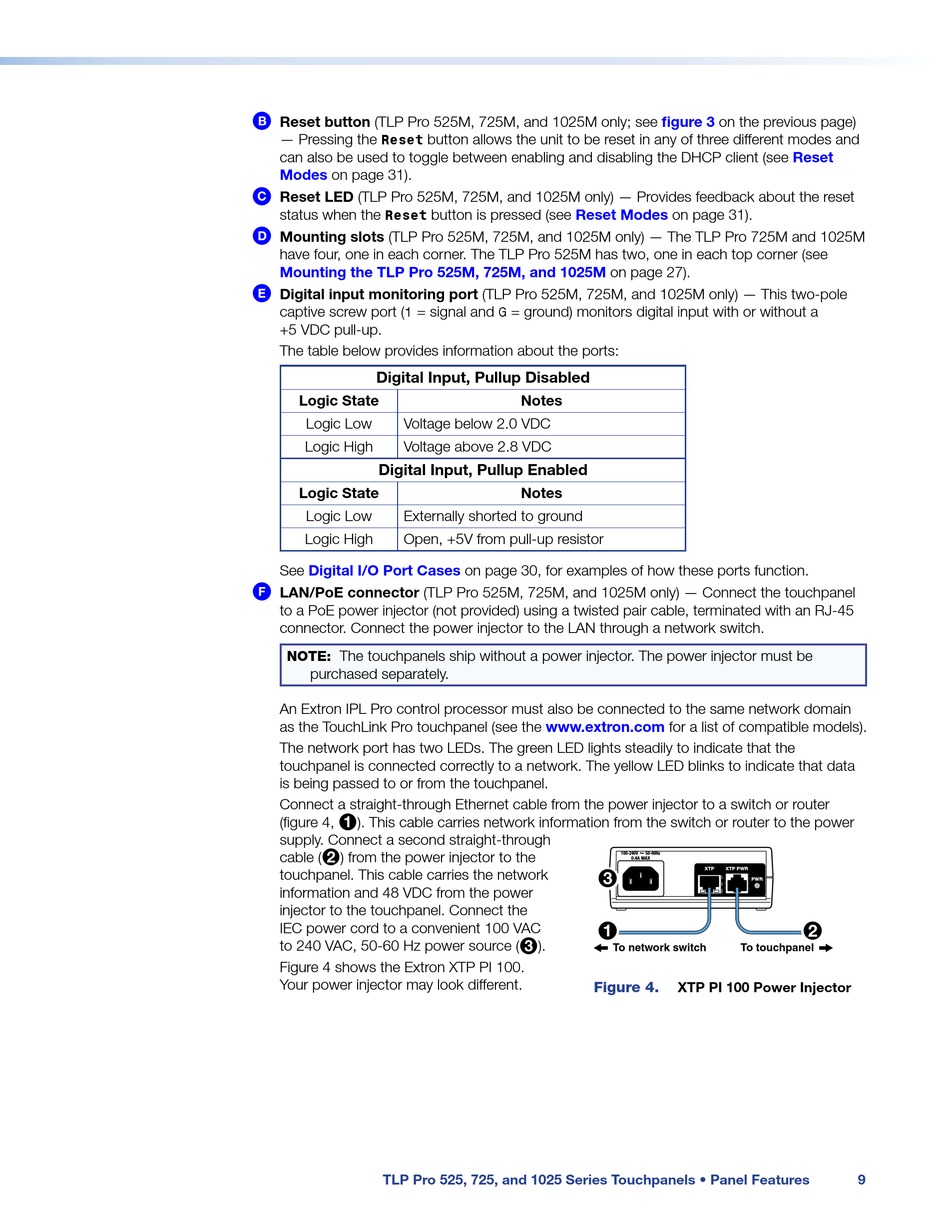

Extron electronics TouchLink Pro User Manual page 19

B
Reset button (TLP Pro 525M, 725M, and 1025M only; see
— Pressing the button allows the unit to be reset in any of three different modes and
Reset
can also be used to toggle between enabling and disabling the DHCP client (see
Modes on page 31).
C
Reset LED (TLP Pro 525M, 725M, and 1025M only) — Provides feedback about the reset
status when the button is pressed (see
Reset
D
Mounting slots (TLP Pro 525M, 725M, and 1025M only) — The TLP Pro 725M and 1025M
have four, one in each corner. The TLP Pro 525M has two, one in each top corner (see
Mounting the TLP Pro 525M, 725M, and 1025M
E
Digital input monitoring port (TLP Pro 525M, 725M, and 1025M only) — This two-pole
captive screw port ( = signal and
1
+5 VDC pull-up.
The table below provides information about the ports:
Digital Input, Pullup Disabled
Logic State
Logic Low Voltage below 2.0 VDC
Logic High Voltage above 2.8 VDC
Digital Input, Pullup Enabled
Logic State
Logic Low Externally shorted to ground
Logic High Open, +5V from pull-up resistor
See Digital I/O Port Cases
F
LAN/PoE connector (TLP Pro 525M, 725M, and 1025M only) — Connect the touchpanel
to a PoE power injector (not provided) using a twisted pair cable, terminated with an RJ-45
connector. Connect the power injector to the LAN through a network switch.
The touchpanels ship without a power injector. The power injector must be
NOTE:
purchased separately.
An Extron IPL Pro control processor must also be connected to the same network domain
as the TouchLink Pro touchpanel (see the
The network port has two LEDs. The green LED lights steadily to indicate that the
touchpanel is connected correctly to a network. The yellow LED blinks to indicate that data
is being passed to or from the touchpanel.
Connect a straight-through Ethernet cable from the power injector to a switch or router
(figure 4, 1 ). This cable carries network information from the switch or router to the power
supply. Connect a second straight-through
cable ( 2 ) from the power injector to the
touchpanel. This cable carries the network
information and 48 VDC from the power
injector to the touchpanel. Connect the
IEC power cord to a convenient 100 VAC
to 240 VAC, 50-60 Hz power source (
Figure 4 shows the Extron XTP PI 100.
Your power injector may look different.
TLP Pro 525, 725, and 1025 Series Touchpanels • Panel Features
Reset Modes
on page 27).
= ground) monitors digital input with or without a
G
Notes
Notes
on page 30, for examples of how these ports function.
www.extron.com
~
100-240V
0.4A MAX
3 3
1 1
).
3
To network switch
Figure 4.
figure 3 on the previous page)
Reset
on page 31).
for a list of compatible models).
50-60Hz
XTP XTP PWR
PWR
2 2
To touchpanel
XTP PI 100 Power Injector
