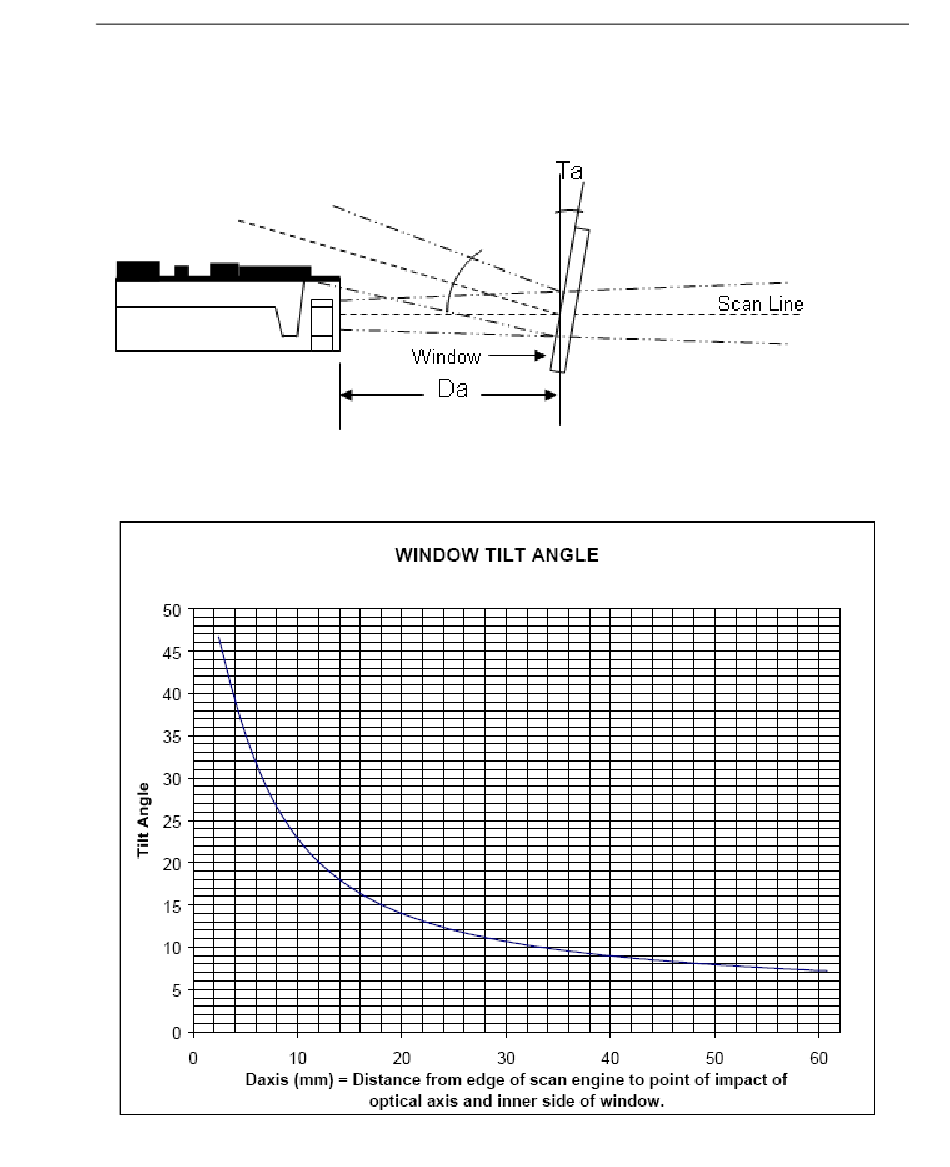

Calculating Window Tilt Angle and Localization
Minimum Window Tilt Angle
-1
Ta° = TAN
(Da / 4) (from perpendicular to scan line)
Window Tilt Angle Graph
MS-1 Scan Engine Integration Manual
Installation
3-5
