Macros - Microscan MS-1 Integration Manual

Macros

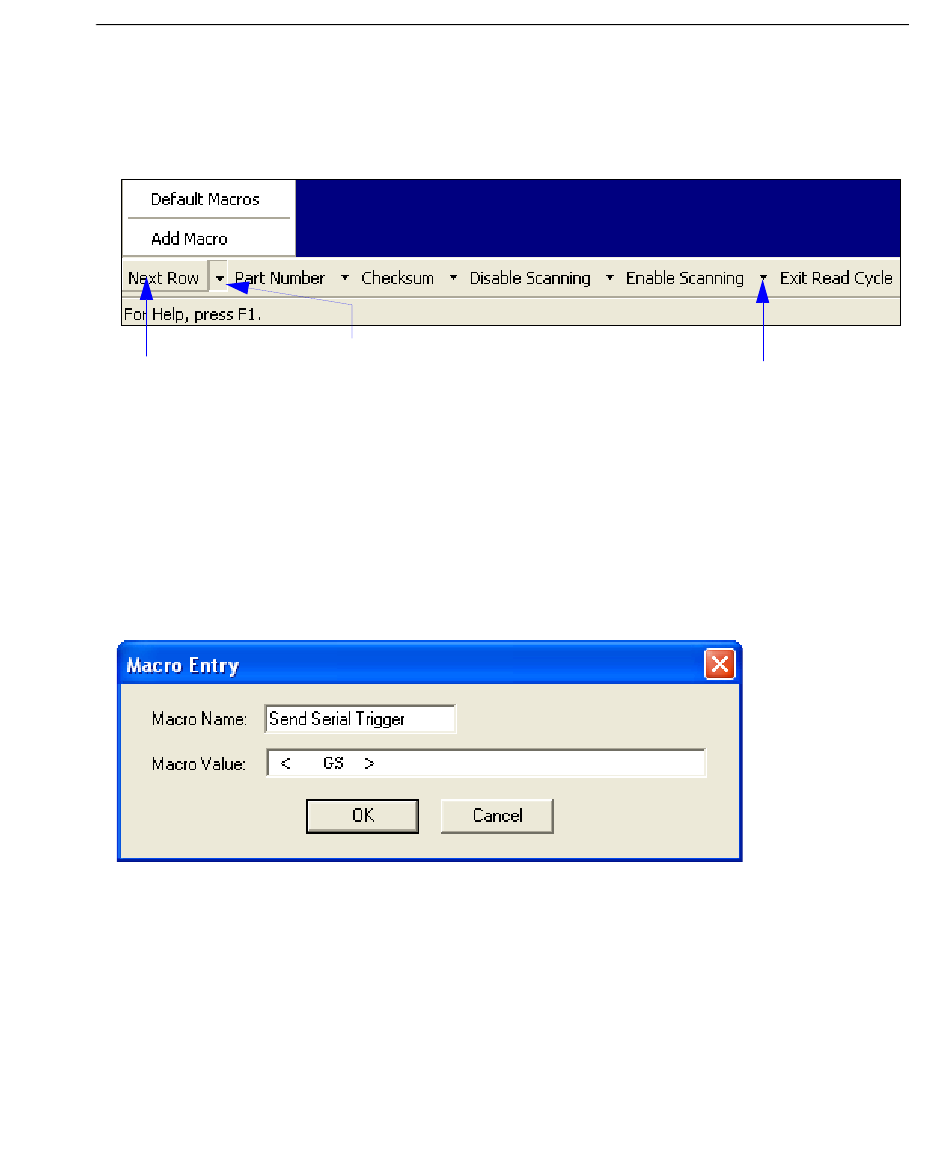

Macros can be stored in a macro selection bar, edited in a separate window, and executed
by clicking on the macro name.
Click on Next
Row to see the
next row of
macros
When you click on the macro name, the macro is executed in the Terminal window.
If the macro is a command, it is sent to the MS-1 at the same time that it is displayed.
Editing a Macro
When you click the arrow next to any macro and select Edit Macro, the following dialog
appears:
You can edit an existing Macro Name or Macro Value by typing a new name or value in
the corresponding text field and clicking OK.
MS-1 Scan Engine Integration Manual
Click on the first arrow here to see Add
Macro or Default Macros.
When you default macros, the entire
macros set is restored to their original
macro commands.
Terminal
Click on subsequent
arrows to edit macros.
8-5
