Calculating Aperture Size

Minimum Aperture Width
La = 2 * [( Da + 7.9 ) * TAN( (49 / 2) + 4.2) + 12 / (COS( 49 / 2 + 4.2))]
= 2 *[( Da + 7.9 ) * 0.55 + 13.68] mm

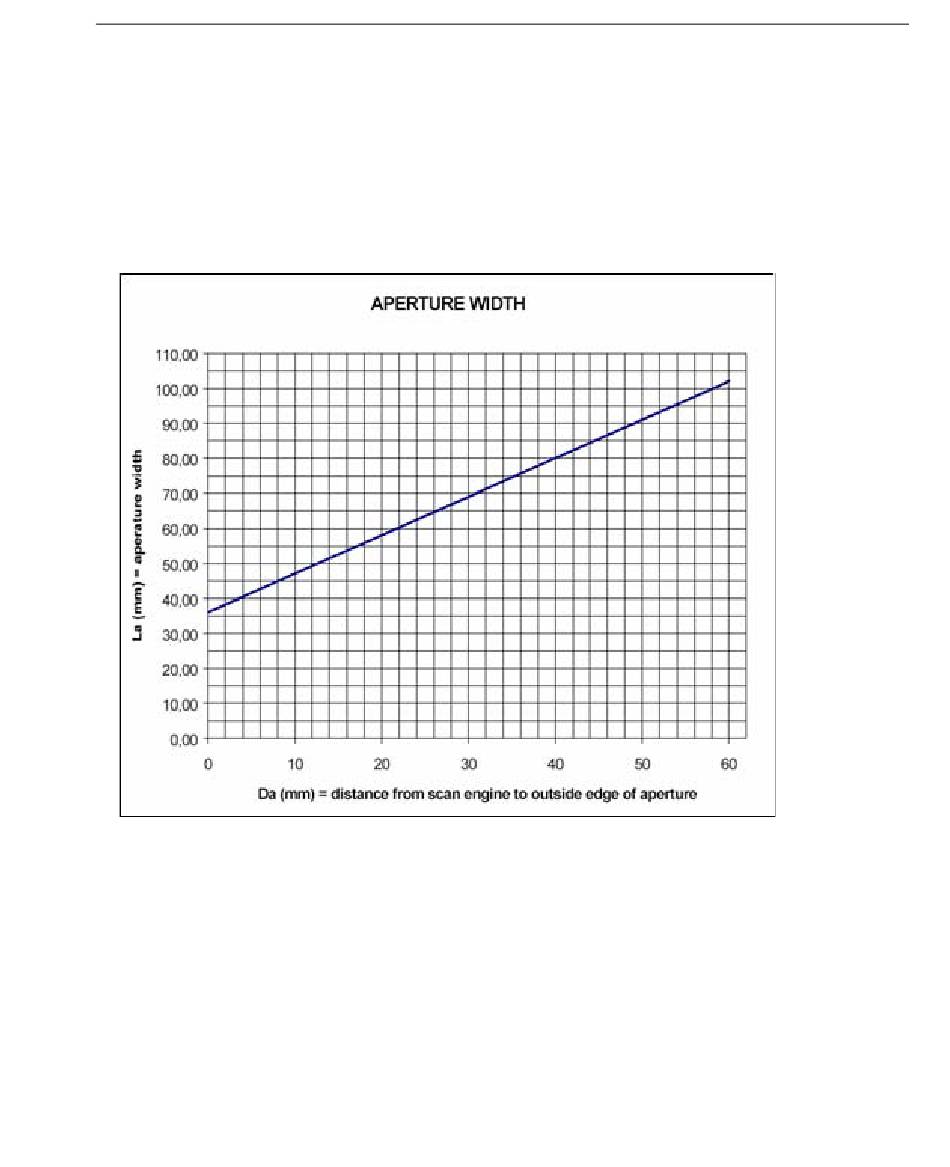

Aperture Width Graph
MS-1 Scan Engine Integration Manual
Installation
3-3
