Configure the MS-1 Scan Engine
Step 7 — Configure the MS-1 Scan Engine

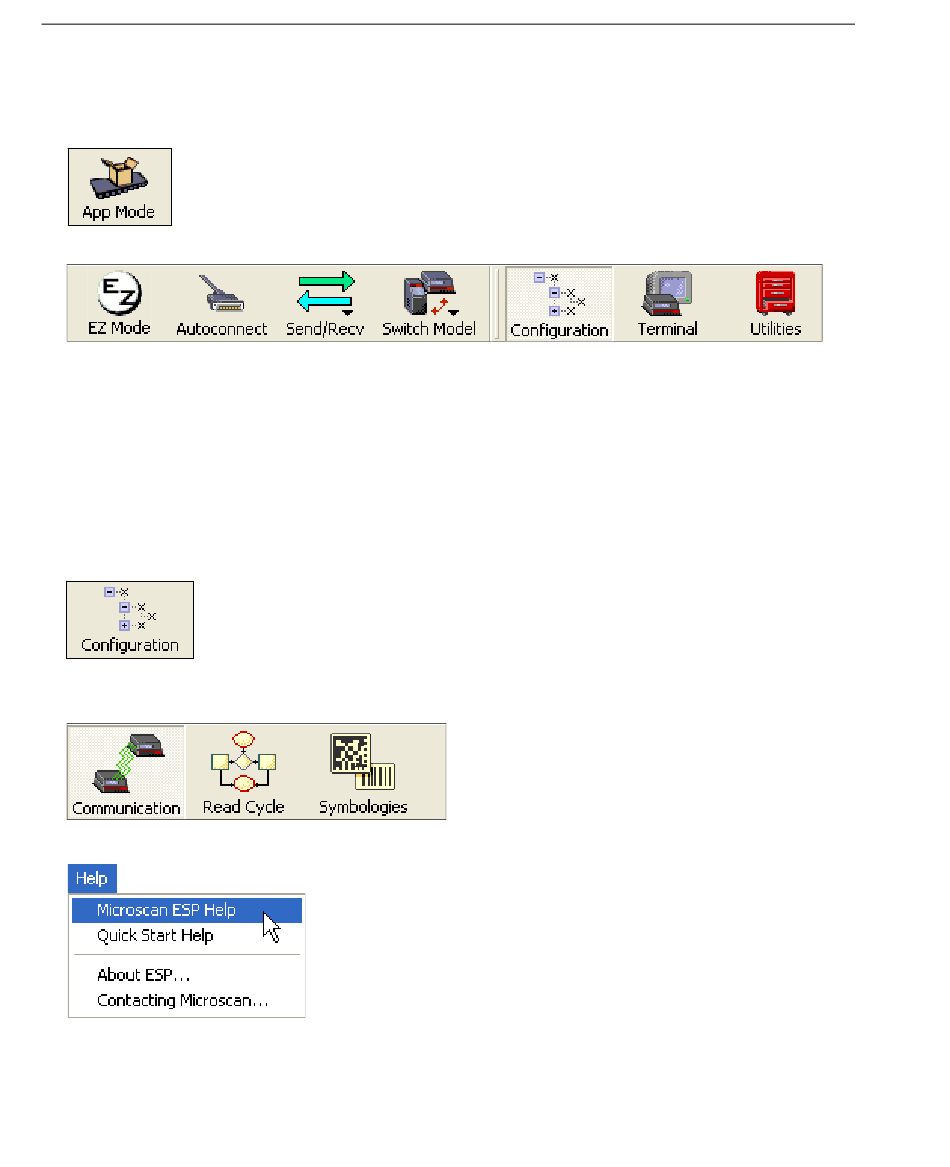

To make setup changes, click the App Mode button.
The following modes are accessible by clicking the buttons in the first row of App Mode icons:
• Click the Autoconnect button to establish communications between ESP and the MS-1.
• Click the Send/Recv button to send or receive commands.
• Click the Terminal button to display decoded symbol data, and to send serial commands
to the MS-1 using text or macros.
• Click the Utilities button to test Read Rate, request or clear Counters, enable or disable
the MS-1 or send output pulses in Device Control, determine the Differences from
Default in the current settings, add or remove master symbol data in Master Database,
and verify or update the MS-1's firmware.
Click the Configuration button to display the second row of ESP icons.
From here you can make changes in the tree controls that can be accessed by clicking the
buttons on the second row of icons in the ESP window.
For further details, see Microscan ESP Help in the dropdown Help menu.
