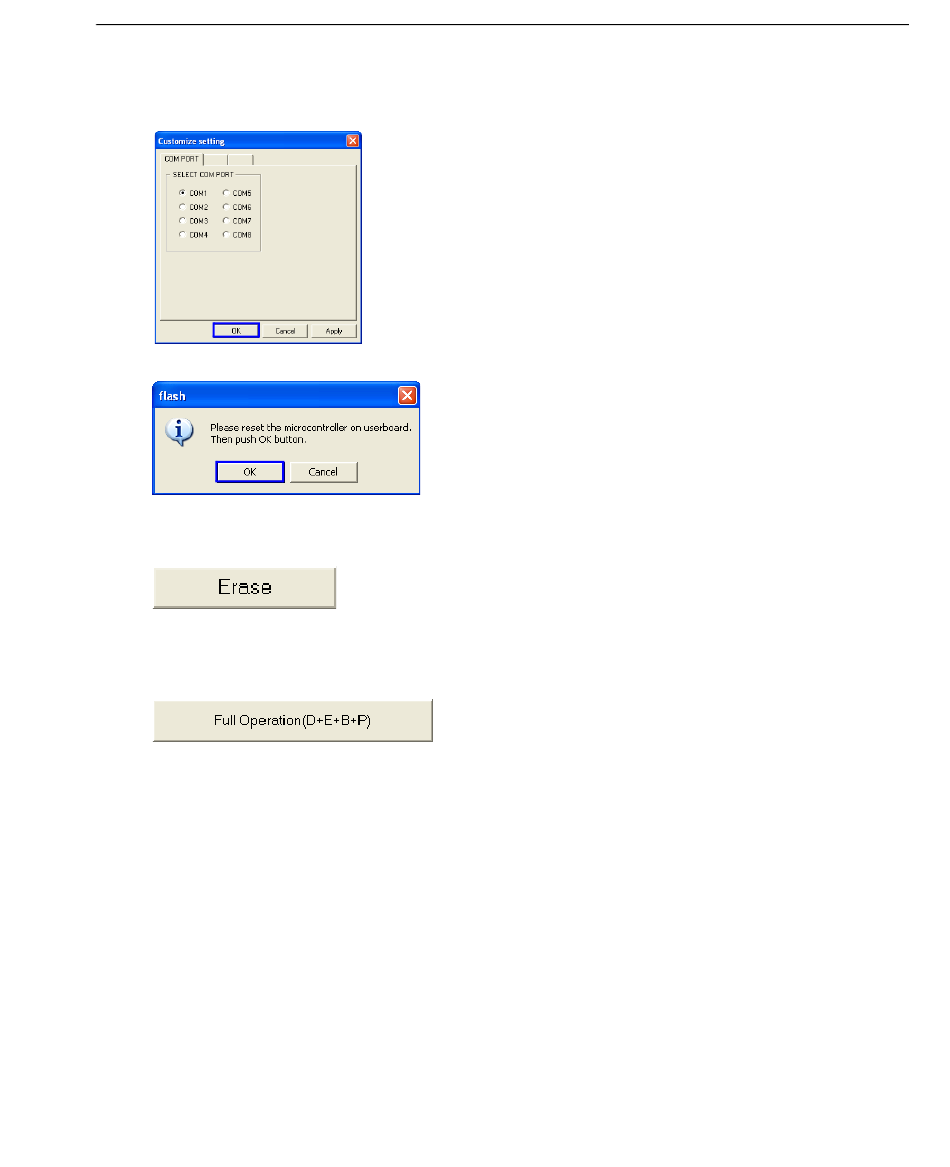

7. Click the Set Environment button to bring up the COM Port menu.
8. Select the appropriate COM Port and click OK.
9. Click the Download button, pull Pin 12 as a low trigger signal, and click OK to connect.
10. Click OK again once a connection is established.
11. Click the Erase button to clear old firmware.
12. Click OK again when you see the dialog stating that old firmware has been erased.
13. Click Full Operation(D+E+B+P), supply a low trigger signal to Pin 12 and click OK to
begin the firmware download.
14. Click OK again when you see the dialog stating that the firmware download is complete.
15. Set Pin 8, Pin 11, and Pin 12 of the MS-1 to Decoded Operation status (see Hardware
Signal Settings table on the previous page) and supply a low trigger signal to Pin 12.
16. Verify installation of the new firmware using
17. If the firmware update procedure fails, check hardware and pinout connectivity, and
repeat the procedure.
Caution: Do not interrupt power or disconnect the host cable while download is in
progress. Be sure that each download is complete before moving on to the next.
Important: When updating firmware, be sure that the application code and boot
code versions are mutually compatible.
