S3756P Hardware Installation Manual
The ports can connect other Ethernet terminal devices through the UTP port and the
direct-through or cross network cable. The numbering order of the pins in the UTP port is the
same as the console port, as shown in the following figure:

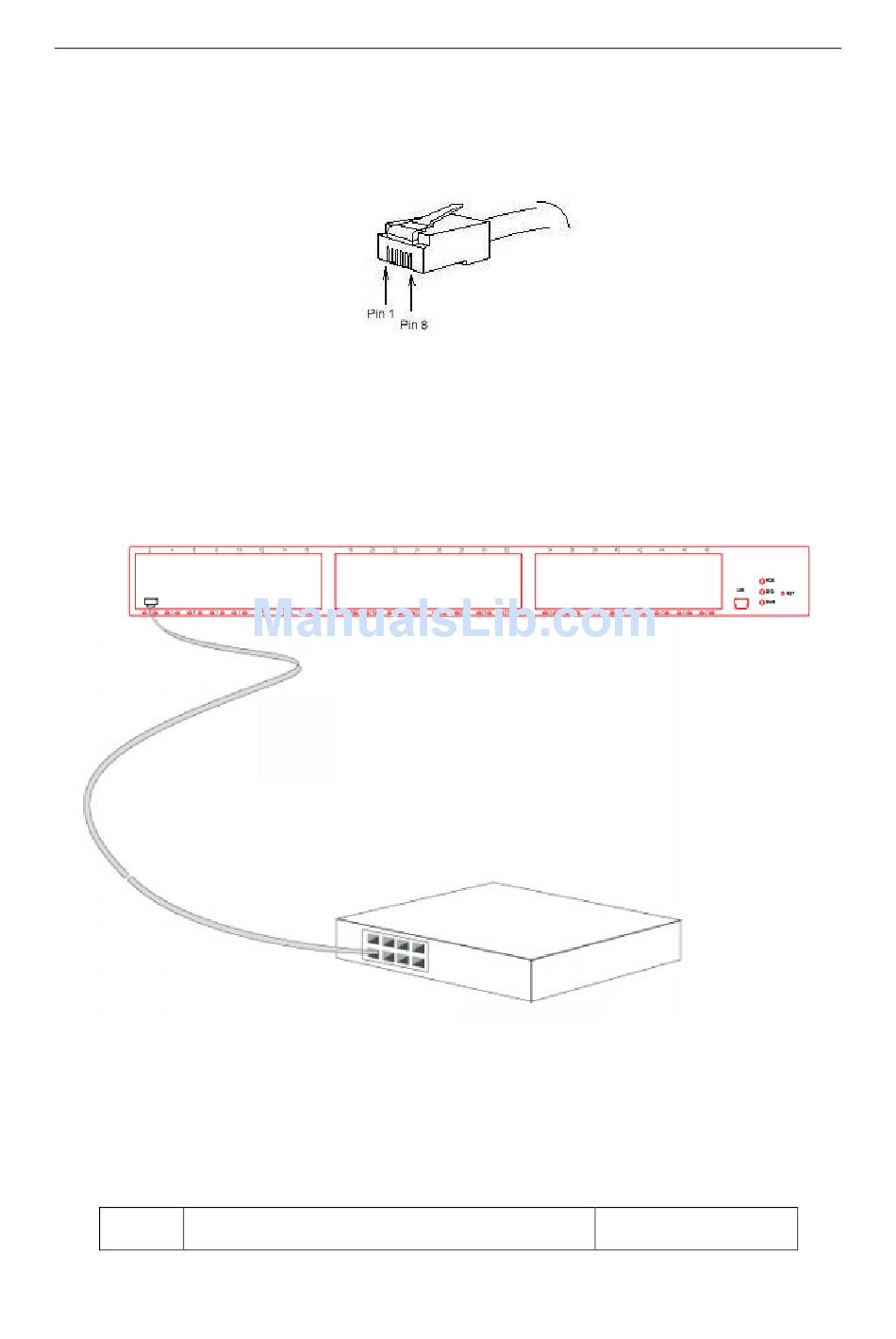

Figure 3-6 RJ-45 connector of the console port
Because the 48 10/100/1000Base-T ports of S3756P support the MDI/MDIX self-identification
of the cable, S3756P can adopt five types of direct-through/cross network cables when it
connects other Ethernet terminals.
Figure 3-7 Connecting the 1000Base-TX port and other Ethernet terminals
Note: The machine in the figure does not represent the material S3756P.
Table 3-2 Pins of gigabit RJ45
No. Pin Name Remark
