1
ABOUT THIS DOCUMENT
8
O P E R A T I N G I N S T R U C T I O N S | deTec4 Core

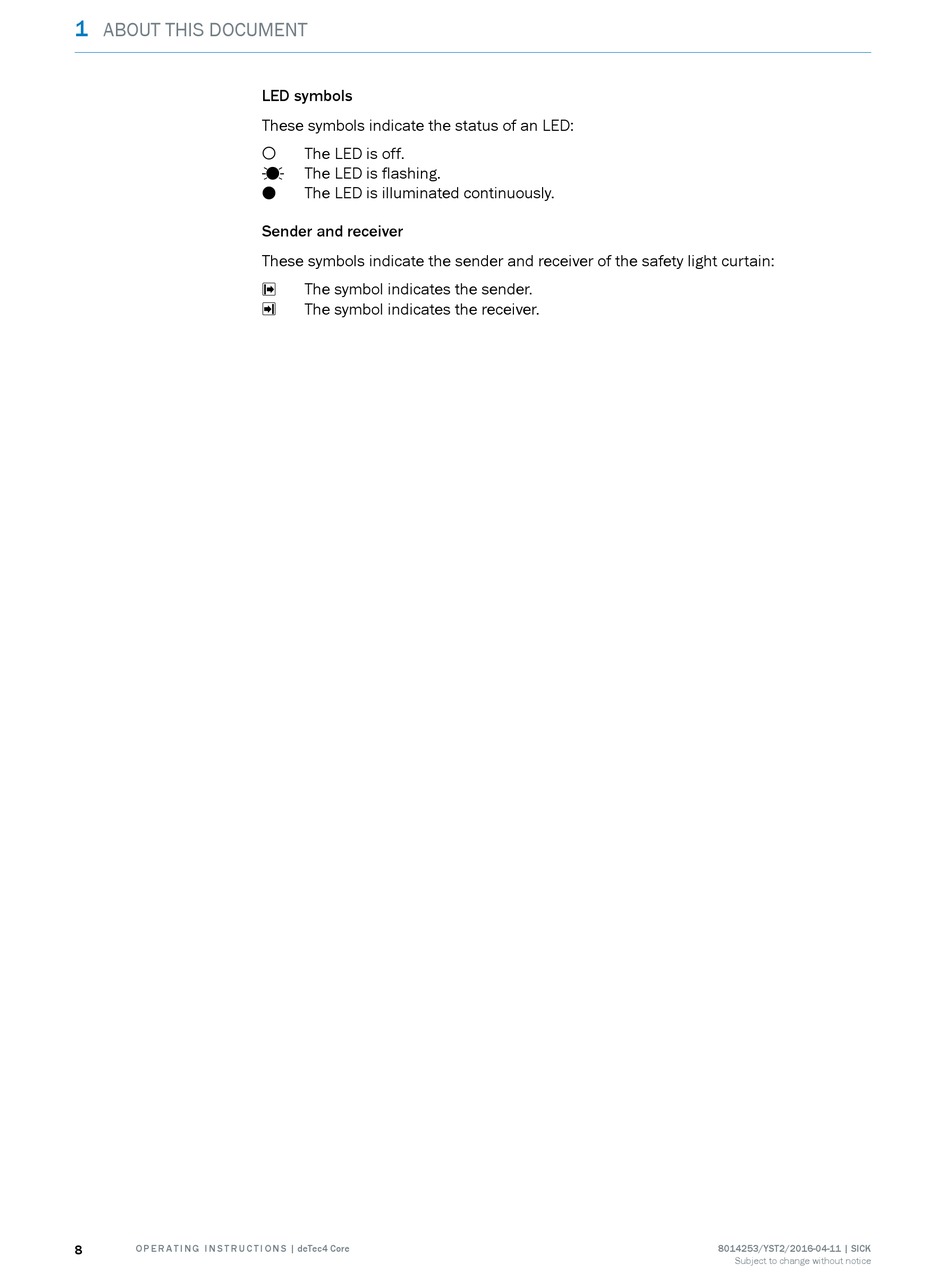

LED symbols
These symbols indicate the status of an LED:
The LED is off.
The LED is flashing.
The LED is illuminated continuously.
Sender and receiver
These symbols indicate the sender and receiver of the safety light curtain:
The symbol indicates the sender.
The symbol indicates the receiver.
8014253/YST2/2016-04-11 | SICK
Subject to change without notice
