± 15°

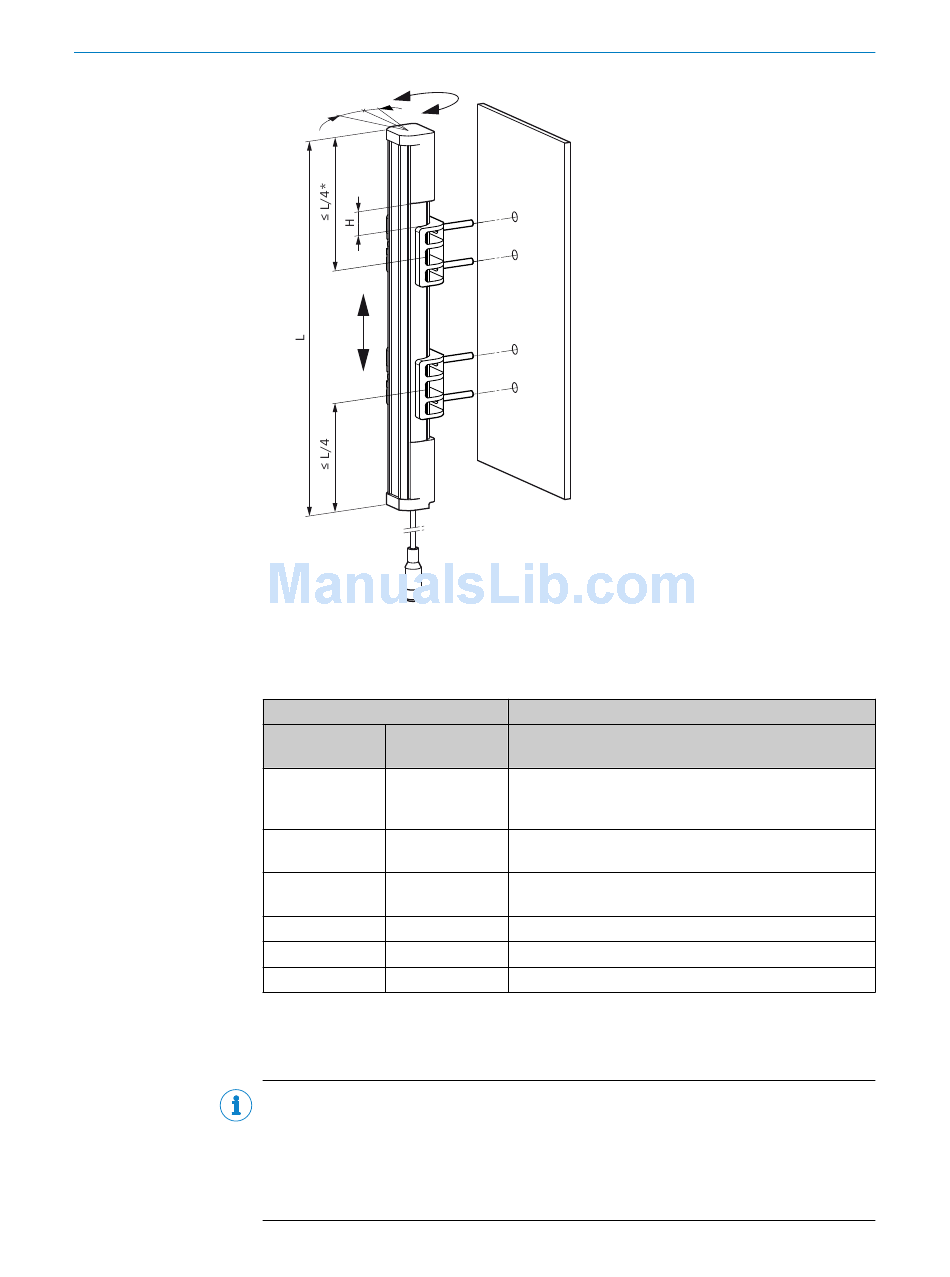

Figure 29: FlexFix bracket: adjust vertically/rotate
Indication of the alignment quality
Indication
Alignment quality OSSD LED
LEDs
No LED lights up Red
1 LED lights up Red
2 LEDs light up Red
2 LEDs light up Green
3 LEDs light up Green
4 LEDs light up Green
Table 3: Blue alignment quality LEDs
1) If the protective fields are very wide, there is a possibility that all four alignment quality LEDs will not light
up even when alignment is good.
NOTE
Once three blue alignment quality LEDs light up, alignment is good and availability is
stable.
Please note that objects in the protective field (e.g., hand, tool, AR60 optional laser
alignment aid) may impair the function of the alignment quality LEDs. Remove all
objects from the protective field to allow the alignment quality to be assessed.
*) Exception for protective field height 300 mm
Meaning
Alignment is insufficient or the protective field is at least
partially interrupted. The receiver cannot synchronize
with the sender.
Alignment is insufficient or the protective field is at least
partially interrupted.
Alignment is insufficient or the protective field is inter‐
rupted at least partially.
Alignment is not yet sufficient for stable availability.
Alignment is good, stable availability.
Alignment is very good.
