MOUNTING
5.3.2

Mount optional FlexFix bracket

30 O P E R A T I N G I N S T R U C T I O N S | deTec4 Core
• On the side
With the M5 screw through the QuickFix bracket to the machine or profile
°
frame. A screw nut or threaded hole is required on the machine or profile
frame.
With the M5 screw through the machine or profile frame to the QuickFix
°
bracket. A screw nut is required for each QuickFix bracket.
• On the back
With the M5 screw through the QuickFix bracket to the machine or profile
°
frame. A screw nut or threaded hole is required on the machine or profile
frame.
When choosing the length of the M5 screw (hexagon head or cylinder head screw),
b
consider the QuickFix bracket and the machine or profile frame.
CAUTION
Risk of injury from protruding screws thread
When mounting through the machine or profile frame to the QuickFix bracket, the M5
screw can present an injury risk if too long.
Select an appropriate screw length to prevent any risk of injury from an overrun.
b
1

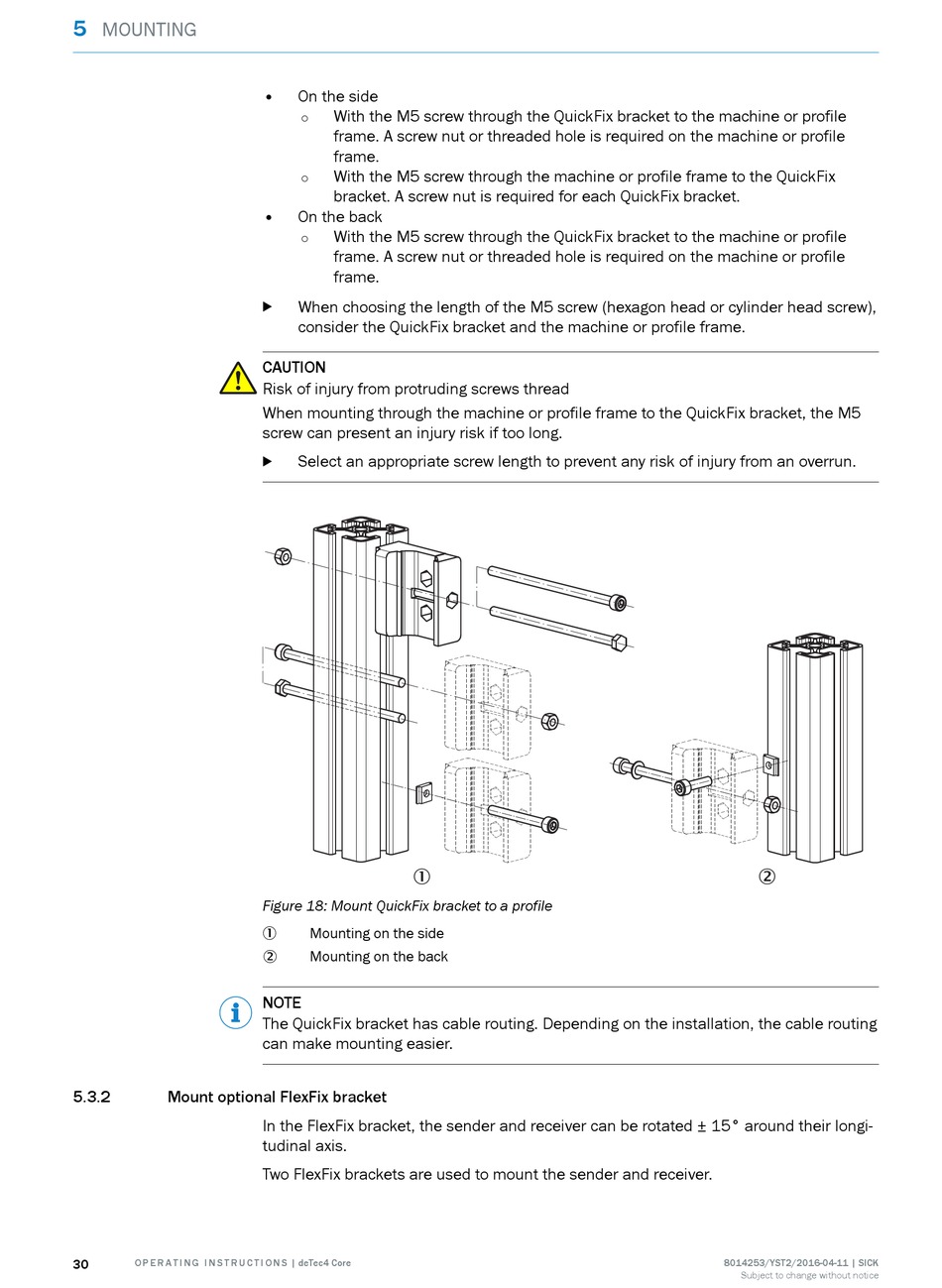

Figure 18: Mount QuickFix bracket to a profile
Mounting on the side
1
Mounting on the back
2
NOTE
The QuickFix bracket has cable routing. Depending on the installation, the cable routing
can make mounting easier.
In the FlexFix bracket, the sender and receiver can be rotated ± 15° around their longi‐
tudinal axis.
Two FlexFix brackets are used to mount the sender and receiver.
2
