Deflector mirrors

14.6.1

Mounting

14.6.2

Change in scanning range using deflector mirrors

8014253/YST2/2016-04-11 | SICK
Subject to change without notice
Function and use
Deflector mirrors can be used to shape the protective field to secure hazardous points
from multiple sides using a single safety light curtain.
DANGER
Hazard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
Only mount deflector mirrors to solid walls or machine components. The position
b
of the deflector mirrors must not change after alignment.
Do not use deflector mirrors if contamination, beading water, condensation, or
b
frost on the deflector mirrors is to be expected.
Make sure that the deflector mirrors are intact and free of scratches, contamina‐
b
tion, beading water, condensation, frost, etc. at all times.

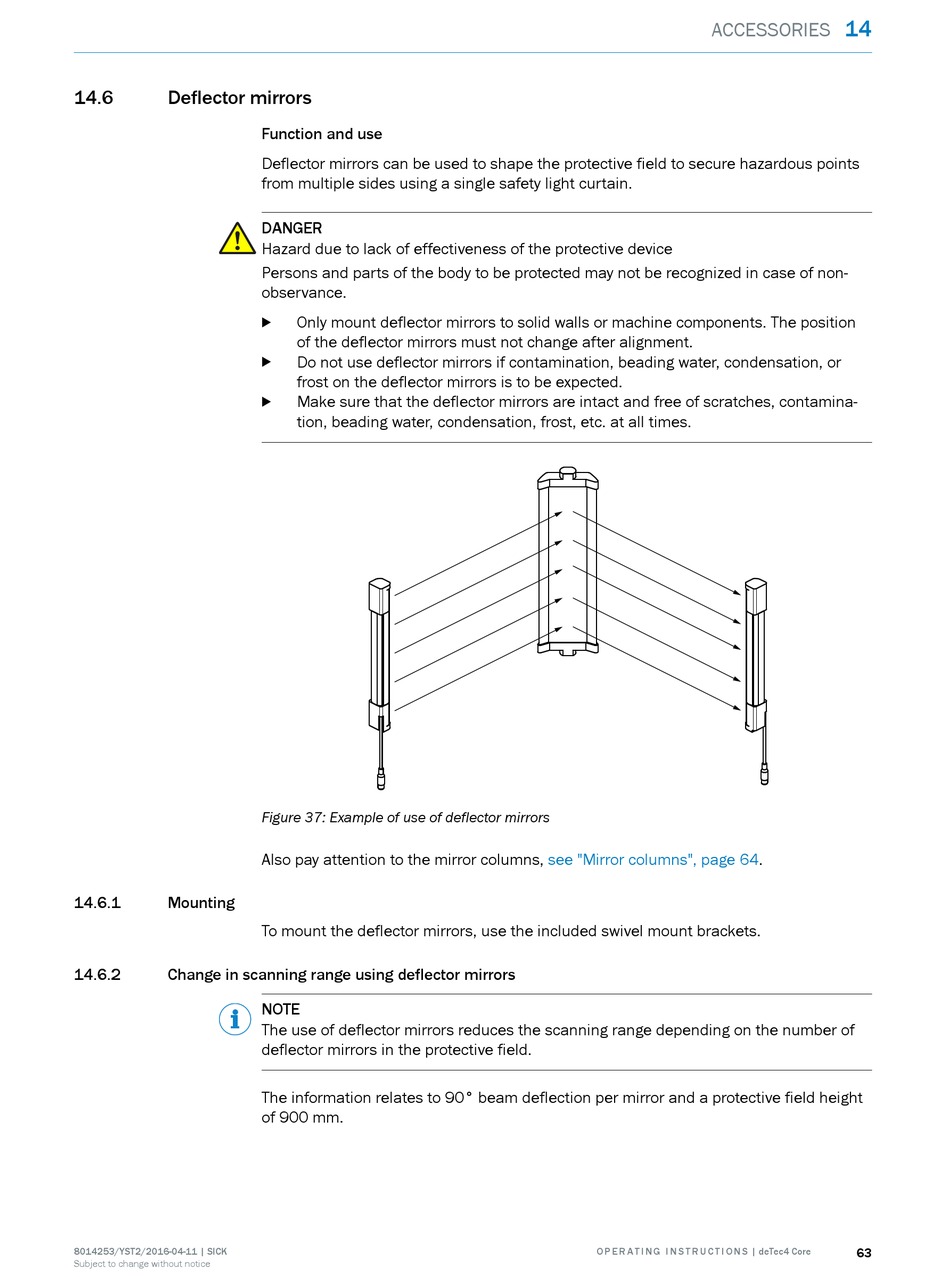

Figure 37: Example of use of deflector mirrors
Also pay attention to the mirror columns,
To mount the deflector mirrors, use the included swivel mount brackets.
NOTE
The use of deflector mirrors reduces the scanning range depending on the number of
deflector mirrors in the protective field.
The information relates to 90° beam deflection per mirror and a protective field height
of 900 mm.
ACCESSORIES
see "Mirror columns", page
