5.3.3

Mount optional exchange bracket

8014253/YST2/2016-04-11 | SICK
Subject to change without notice
If you wish to mount the sender and receiver in the center of the device column, use
washers between the FlexFix brackets and the device column.
NOTE
The FlexFix mounting kit (part number 2073543) contains two FlexFix brackets, one
alignment tool, and the required screws, sliding nuts, and washers,
page 59.
1. After mounting the FlexFix brackets, screw the sender and receiver into the FlexFix
brackets from the front and align the sender and receiver,
and receiver", page 39.
2. Use the M5 screw to fix the position of the sender and receiver in the FlexFix
bracket.

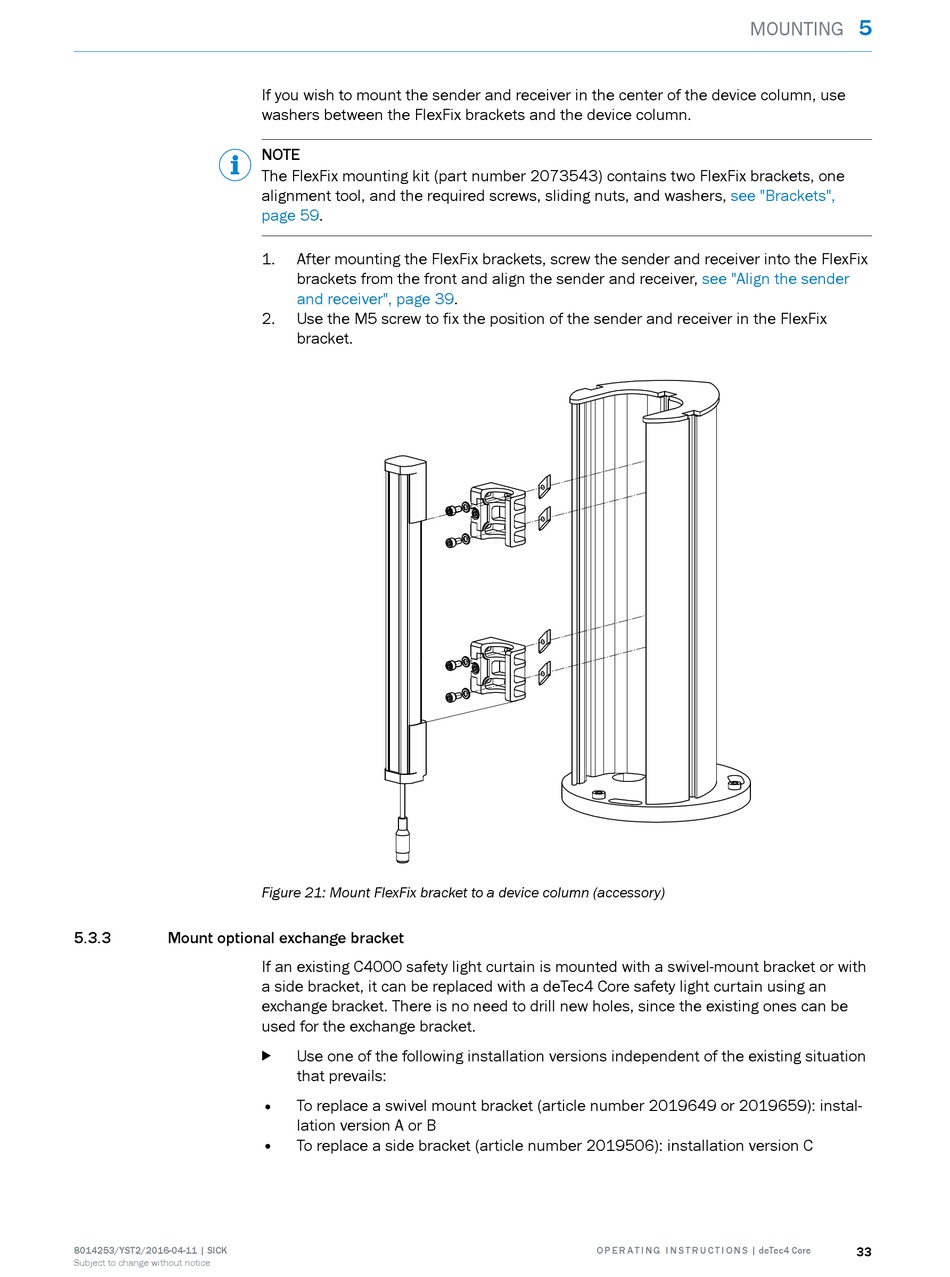

Figure 21: Mount FlexFix bracket to a device column (accessory)
If an existing C4000 safety light curtain is mounted with a swivel-mount bracket or with
a side bracket, it can be replaced with a deTec4 Core safety light curtain using an
exchange bracket. There is no need to drill new holes, since the existing ones can be
used for the exchange bracket.
Use one of the following installation versions independent of the existing situation
b
that prevails:
•
To replace a swivel mount bracket (article number 2019649 or 2019659): instal‐
lation version A or B
•
To replace a side bracket (article number 2019506): installation version C
MOUNTING
see "Brackets",
see "Align the sender
O P E R A T I N G I N S T R U C T I O N S | deTec4 Core
