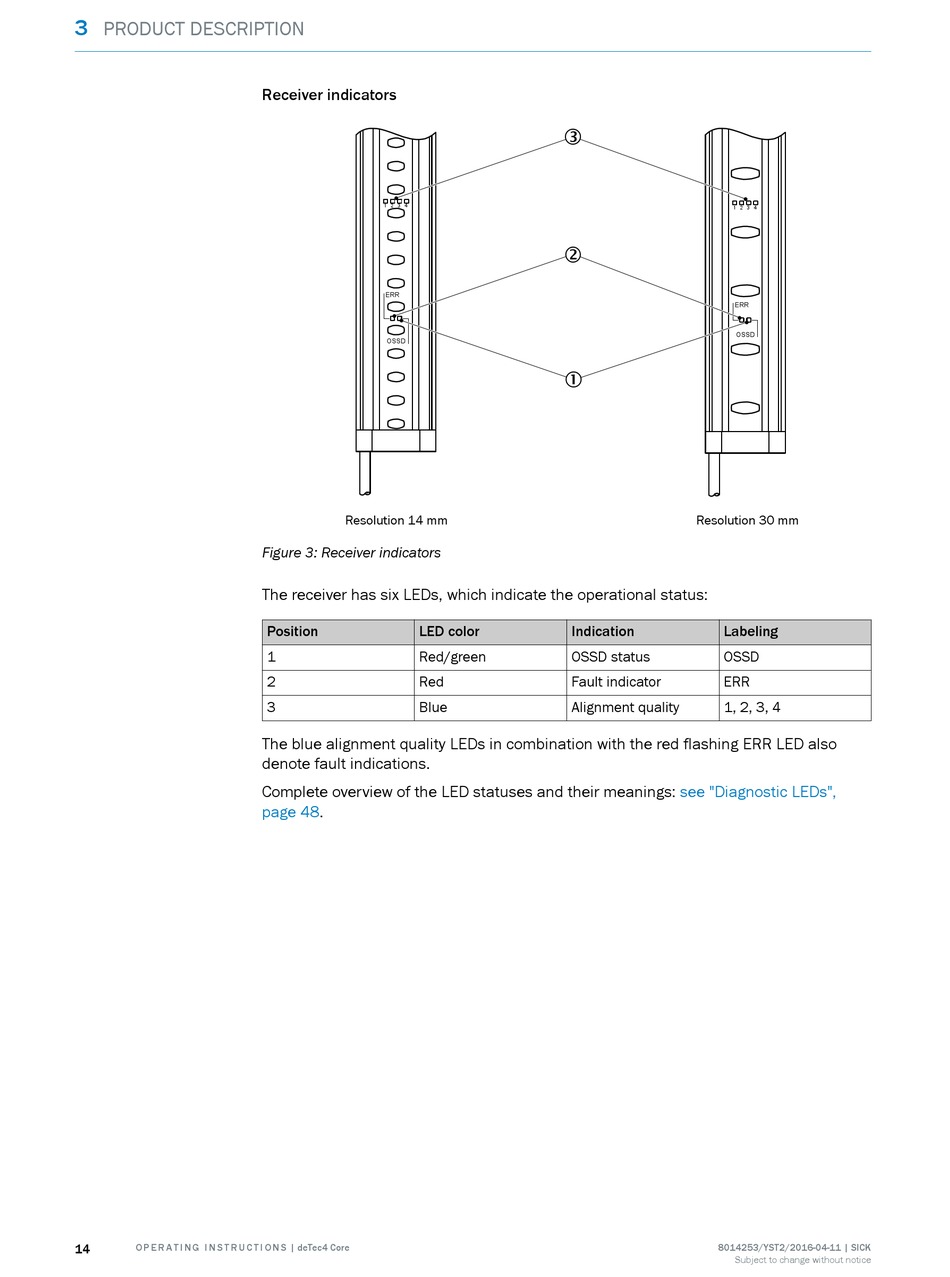

Receiver indicators
1 2 3 4
ERR
OSSD
Resolution 14 mm
Figure 3: Receiver indicators
The receiver has six LEDs, which indicate the operational status:
Position LED color
1 Red/green
2 Red
3 Blue
The blue alignment quality LEDs in combination with the red flashing ERR LED also
denote fault indications.
Complete overview of the LED statuses and their meanings:
page 48.
3
1 2 3 4
2
ERR
OSSD
1
Resolution 30 mm
Indication Labeling
OSSD status OSSD
Fault indicator ERR
Alignment quality 1, 2, 3, 4
see "Diagnostic LEDs",
