Faults and malfunctions

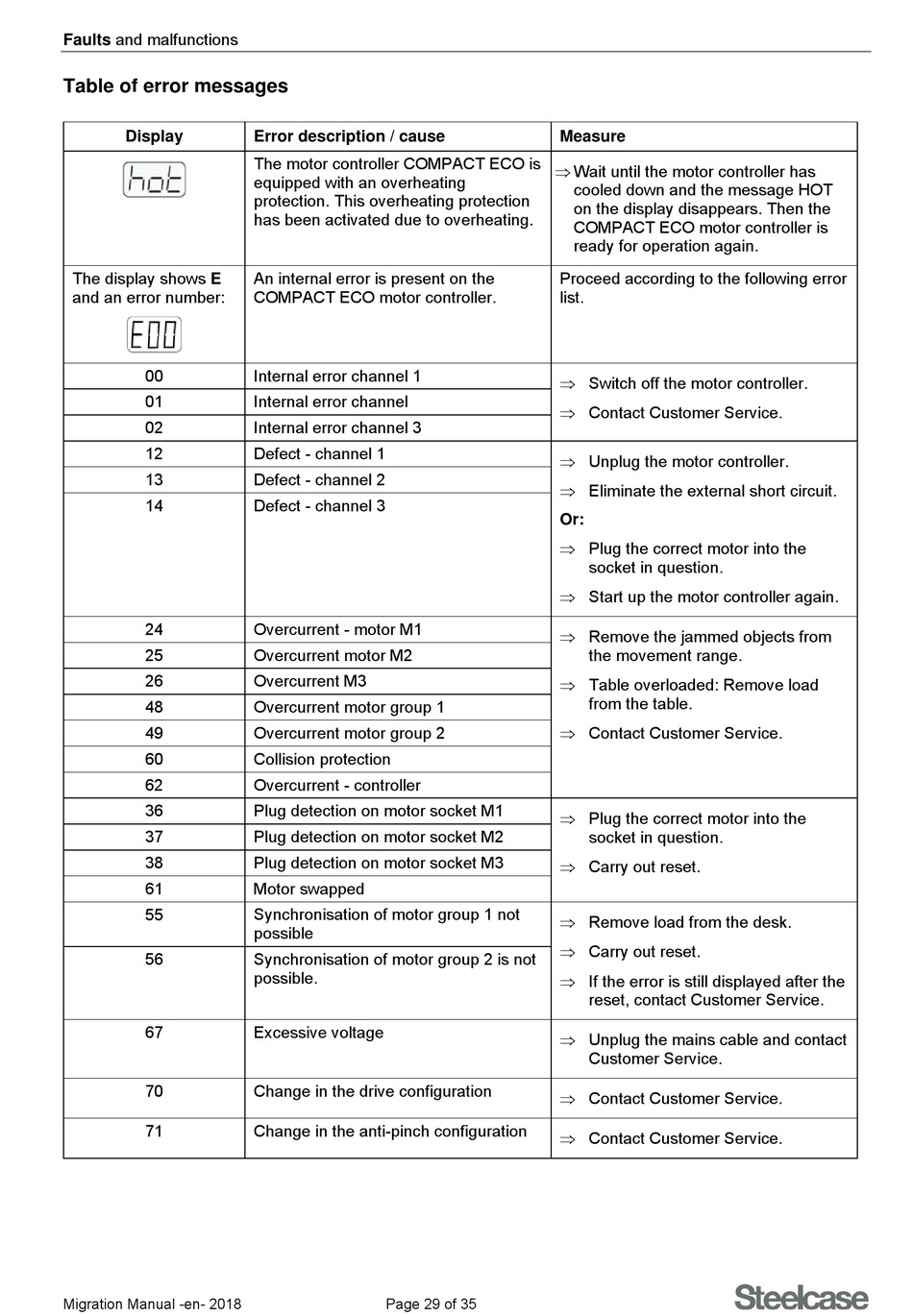

Table of error messages

Display
The display shows E
and an error number:
00
01
02
12
13
14
24
25
26
48
49
60
62
36
37
38
61
55
56
67
70
71
Migration Manual -en- 2018
Error description / cause
The motor controller COMPACT ECO is
equipped with an overheating
protection. This overheating protection
has been activated due to overheating.
An internal error is present on the
COMPACT ECO motor controller.
Internal error channel 1
Internal error channel
Internal error channel 3
Defect - channel 1
Defect - channel 2
Defect - channel 3
Overcurrent - motor M1
Overcurrent motor M2
Overcurrent M3
Overcurrent motor group 1
Overcurrent motor group 2
Collision protection
Overcurrent - controller
Plug detection on motor socket M1
Plug detection on motor socket M2
Plug detection on motor socket M3
Motor swapped
Synchronisation of motor group 1 not
possible
Synchronisation of motor group 2 is not
possible.
Excessive voltage
Change in the drive configuration
Change in the anti-pinch configuration
Page 29 of 35
Measure
 Wait until the motor controller has
cooled down and the message HOT
on the display disappears. Then the
COMPACT ECO motor controller is
ready for operation again.
Proceed according to the following error
list.
 Switch off the motor controller.
 Contact Customer Service.
 Unplug the motor controller.
 Eliminate the external short circuit.
Or:
 Plug the correct motor into the
socket in question.
 Start up the motor controller again.
 Remove the jammed objects from
the movement range.
 Table overloaded: Remove load
from the table.
 Contact Customer Service.
 Plug the correct motor into the
socket in question.
 Carry out reset.
 Remove load from the desk.
 Carry out reset.
 If the error is still displayed after the
reset, contact Customer Service.
 Unplug the mains cable and contact
Customer Service.
 Contact Customer Service.
 Contact Customer Service.
