Product description

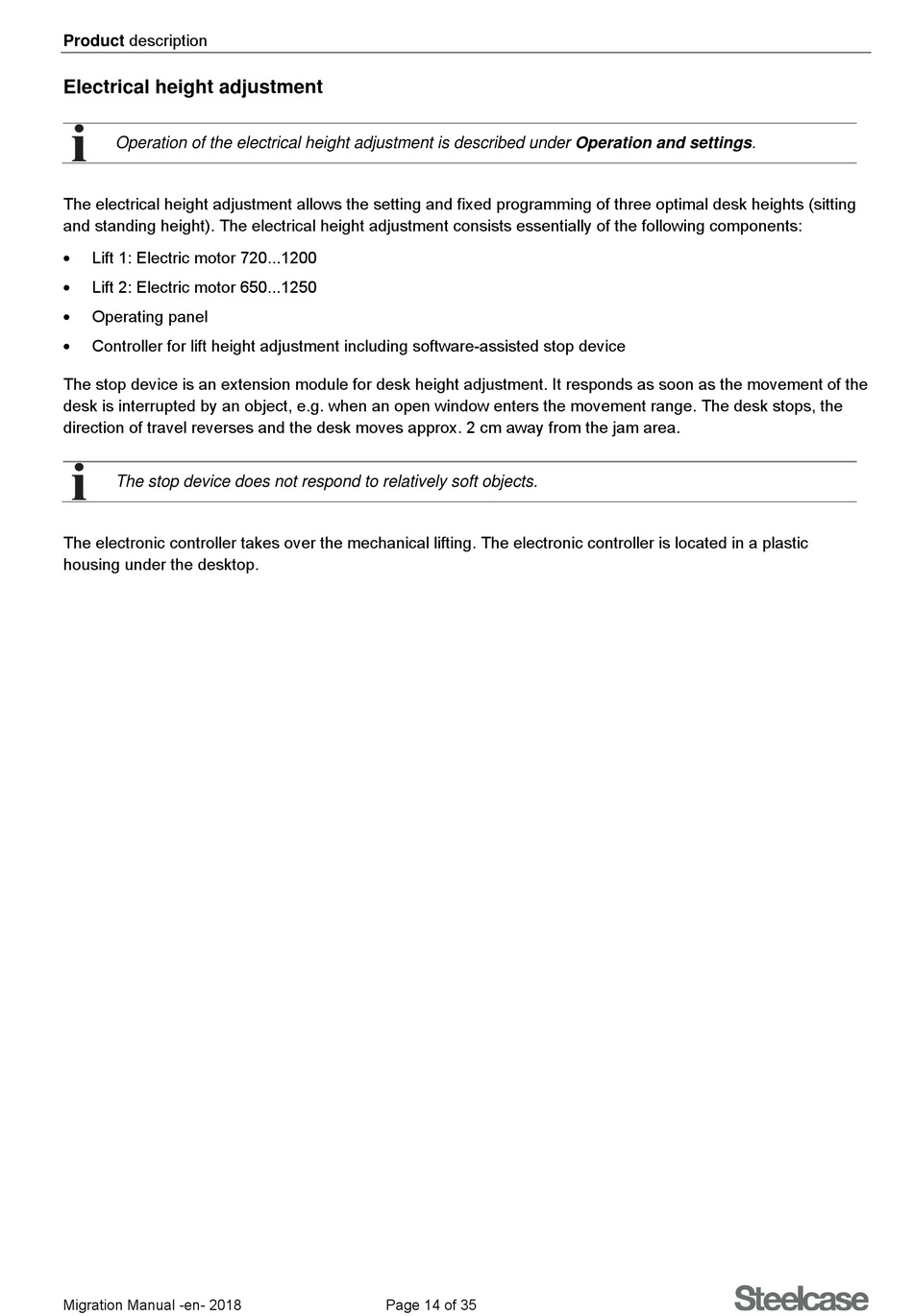

Electrical height adjustment

Operation of the electrical height adjustment is described under Operation and settings.
The electrical height adjustment allows the setting and fixed programming of three optimal desk heights (sitting
and standing height). The electrical height adjustment consists essentially of the following components:

Lift 1: Electric motor 720...1200

Lift 2: Electric motor 650...1250

Operating panel

Controller for lift height adjustment including software-assisted stop device
The stop device is an extension module for desk height adjustment. It responds as soon as the movement of the
desk is interrupted by an object, e.g. when an open window enters the movement range. The desk stops, the
direction of travel reverses and the desk moves approx. 2 cm away from the jam area.
The stop device does not respond to relatively soft objects.
The electronic controller takes over the mechanical lifting. The electronic controller is located in a plastic
housing under the desktop.
Migration Manual -en- 2018 Page 14 of 35
