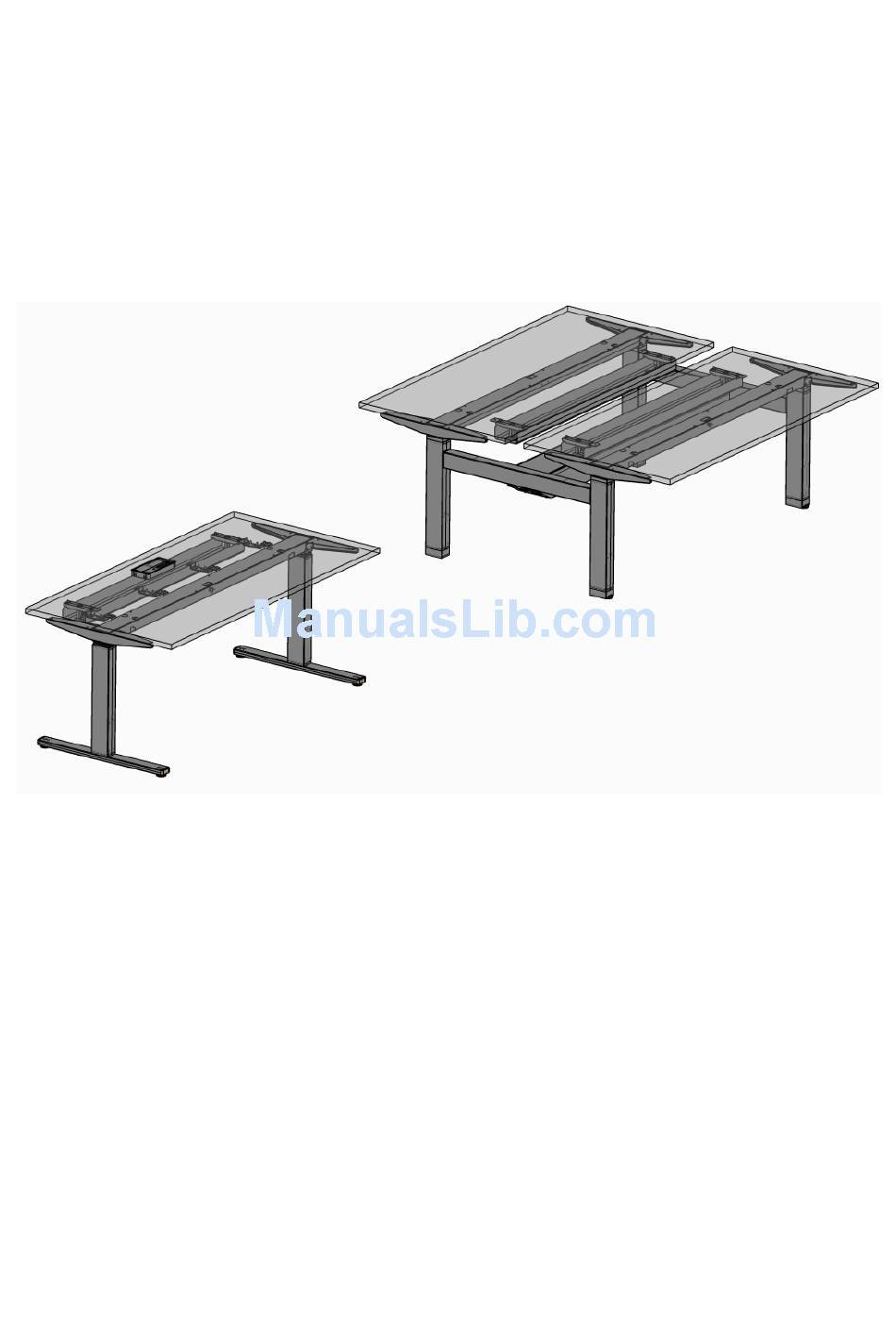

- Page 1 Migration Migration Bench User Manual Translation of the original user manual...
-
Page 2: Copyright
Improper assembly by unauthorised personnel. Use of components and adaptations that do not originate from Steelcase. Third-party parts are not guaranteed to be designed and manufactured to meet the requirements of stress and safety. Plans from third party suppliers that have been proven to lead to misuse of the product. - Page 3 Steelcase applies a quality management system that meets the requirements of DIN EN ISO 9001. Steelcase has the right to use the GS Mark for the product line Migration.
-
Page 4: Table Of Contents
Factory setting on delivery ..........................10 Components ..............................11 Accessories ..............................11 Overview of Migration and Migration Bench desks ..................12 Operating panel up/down ..........................13 Operating panel Memory (optional) ......................... 13 Electrical height adjustment ..........................14 ... - Page 5 Table of contents Assembling the desk ............................17 Height compensation ............................17 Disassembling and reassembling the desk temporarily ............. 18 Disassembling the desk ........................... 18 Reassembling the desk ........................... 18 Operation and settings ....................... 19 ...
- Page 6 Table of contents Disposal of the desk ......................34 Customer Service ......................35 Delivery, installation, instruction ........................35 Repairs and spare parts ..........................35 Migration Manual -en- 2018 Page 6 of 35...
-
Page 7: About This User Manual
The safety instructions are intended to prevent personal injury and material damage. The users of the desk Migration commit to read and follow these safety instructions. Steelcase assumes no liability and no warranty for damage or malfunctions resulting from non-compliance with the user manual. -
Page 8: Safety Instructions And Warnings
About this user manual Safety instructions and warnings To prevent personal injury and damage to property, this user manual contains warnings at the appropriate locations. The symbols and signal words have the following meaning: DANGER Danger Source of danger Prevention measures ... -
Page 9: Safety
Improper use of the product may result in dangers to life and limb as well as property damage. For this reason, improper use is prohibited. In case of improper use, Steelcase assumes no liability for any damage that may occur and does not guarantee that the components will function properly. -
Page 10: Product Description
Product description Product description Technical data Desk Migration / Migration Bench Dimensions see delivery note Weight see delivery note Electrical components Controller and drive Temperature range at the installation site: +5 °C to +35°C Relative humidity: 5 % to 80 % (non-condensing) Rated voltage: 230 V AC ~ ±... -
Page 11: Components
Migration: Columns with skid made of steel tube 65x25x2 mm, screwed, including adjustment screw for compensating floor unevenness, cable duct (optional) Migration Bench: Columns without skids, cross member (screwed), central cable duct optional Top cantilever left/right ... -
Page 12: Overview Of Migration And Migration Bench Desks

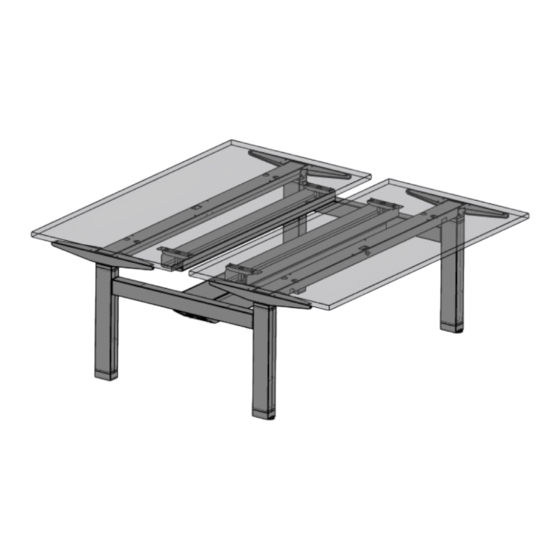

Product description Overview of Migration and Migration Bench desks Each illustration shows one of many design variants of the desks Migration and Migration Bench. The illustrations merely serve to demonstrate the desk components. Fig. 1 Migration, Lift 1/Lift 2 Fig. 2... -
Page 13: Operating Panel Up/Down
Product description Operating panel up/down The control panel with the functions "up" and "down" is located usually on the right underside of the desktop. Operating panel up/down Operating panel Button "up" Button "down" Operating panel Memory (optional) The operating panel Memory allows the storing of three positions. Operation and settings describes how to set the memory positions. -
Page 14: Electrical Height Adjustment
Product description Electrical height adjustment Operation of the electrical height adjustment is described under Operation and settings. The electrical height adjustment allows the setting and fixed programming of three optimal desk heights (sitting and standing height). The electrical height adjustment consists essentially of the following components: ... -
Page 15: Transport And Storage
Transport and storage Transport and storage Safety instructions WARNING Injuries and damage are possible! When lifting on the desktop or attached components, the fastening screws may tear. Transport or move the desk only by grabbing the base frame. NOTICE Risk of damaging the lifting mechanism! Values stored in the controller do not match the settings of another desk. -
Page 16: Installation And Assembly
Corner protectors made of polyethylene (PE). These materials are recyclable. When the product is assembled by Steelcase or an authorised installer, the packaging is disposed of by the manufacturer. If you install yourself, please ensure sorted separation and return to the recycling cycle. -
Page 17: Installing The Desk
Installation and assembly Installing the desk Installation and use of the product requires detailed planning. For this purpose, Steelcase offers its own planning department. The partially assembled components of the Migration desk are usually delivered by specialist dealers or directly from the manufacturer. -
Page 18: Disassembling And Reassembling The Desk Temporarily
Disassembling and reassembling the desk temporarily Disassembling and reassembling the desk temporarily If you want to disassemble, temporarily store and reassemble the desk, for example for a move, see sections Transport and storage and Installation and assembly. Disassembling the desk The desk can be disassembled into its partially assembled components. -
Page 19: Operation And Settings
Operation and settings Operation and settings Safety instructions The desk Migration may be used and operated only in perfect technical condition and in compliance with the user manual. Before you change the desk height, make sure of the following: The desktop must be horizontal. -
Page 20: Optimum Desk Height
Fig. 6 Migration height compensation Fig. 7 Migration Bench height compensation Adjusting screw Adjusting screw Remove all objects from the desk. Turn the adjusting screw until height compensation is complete. -
Page 21: Height Adjustment Of The Desks
Operation and settings Height adjustment of the desks Remove all objects from the desk. Loosen the adjusting wheel. Variants Lift 1 and Lift 2 The desk can be continuously adjusted by electric motor to a height between 720 mm and 1200 mm (Variant Lift 1) or between 720 mm und 1200 mm (Variant Lift 2). -
Page 22: Manuel Reset On Operating Panel Up/Down
Operation and settings NOTICE Risk of damaging the operating panel! Do not lean on the operating panel. Do not place any objects on the operating panel. Do not pour liquids over the control panel. Manuel reset on operating panel up/down You must carry out an end position calibration of the lowest desktop position: ... -
Page 23: Faulty Manual Reset
Operation and settings Faulty manual reset If the manual reset was not successful, proceed as follows: Press the "up" and "down" buttons simultaneously and hold for at least 5 seconds. Restart the manual reset process as described above. Adjusting the desk height with operating panel up/down Before adjusting the height of the desk, ensure the following: ... -
Page 24: Operating Panel Memory (Optional)
Operation and settings Operating panel Memory (optional) It is necessary to carry out a manual reset before first use. Fig. 9 Buttons and display on operating panel Memory Button "Down" Button "Up" Display Button "STORE" Keypad "MEMORY 1 / 2 / 3 / 4" Manuel reset on operating panel Memory WARNING Danger of crushing and shearing! -
Page 25: Adjusting The Desk Height With Operating Panel Memory
Operation and settings Adjusting the desk height with operating panel Memory Before adjusting the height of the desk, ensure the following: The display of the operating panel does not show an error message (see Error messages on the display of operating panel Memory). -
Page 26: Switching The Display Between Centimetres And Inches
Operation and settings Switching the display between centimetres and inches You can select between displaying the height in centimetres [cm] or in inches [inches]. This function does not change the desk height. To change the display, proceed as indicated in the following table: ... -
Page 27: Calling Up A Memory Position
Operation and settings Press the desired position memory button, e.g. 2. The display shows S 2. The set desktop position will now be stored under the selected position memory button. A double click will sound; after approx. 2 seconds, the saved desktop position will be displayed. -
Page 28: Faults And Malfunctions
Faults and malfunctions Faults and malfunctions Safety instructions For troubleshooting, the following always applies: DANGER Danger from electrical voltage! Contact with electrical voltage can cause severe injury or death by electric shock! Remove or insert connectors only in de-energised state. ... -
Page 29: Table Of Error Messages
Faults and malfunctions Table of error messages Display Error description / cause Measure The motor controller COMPACT ECO is Wait until the motor controller has equipped with an overheating cooled down and the message HOT protection. This overheating protection on the display disappears. - Page 30 Faults and malfunctions Display Error description / cause Measure Internal error Carry out reset. Unplug the mains cable and plug it back after a few seconds. If this error occurs regularly, unplug the mains cable and contact Customer Service.
-
Page 31: Maintenance
Maintenance Maintenance Safety instructions Only appropriately qualified and authorised personnel may carry out maintenance and repair work. Only use suitable tools for these operations! A damaged mains cable of this unit must be replaced by the manufacturer, his customer service or similarly qualified personnel to prevent hazards. - Page 32 Follow the separate assembly instructions. NOTICE Using unapproved spare parts may cause damage to the desk. Only components provided by Steelcase may be used as spare parts. Coordinate the installation of other parts with Steelcase. Observe the specified maintenance and inspection intervals.
-
Page 33: Disclaimer Of Liability
Maintenance Disclaimer of liability Steelcase assumes no liability or warranty in the following cases (see Liability): Inadequate monitoring of the product components (function checks). Improper maintenance. Maintenance through a third party. Maintenance by unqualified and unauthorised personnel. -
Page 34: Disposal Of The Desk
Disposal of the desk Disposal of the desk Disassembly should be carried out by qualified personnel. Follow these steps to disassemble and dispose of the Migration desk Disconnect the desk from the mains supply. Disassemble the desk into its components. ... -
Page 35: Customer Service
The Manufacturer or a specialist retailer will instruct the users. Repairs and spare parts Original spare parts and accessories are available from the manufacturer. If it is not possible to eliminate faults or malfunctions, please contact the Customer Service Department: Steelcase AG LineOne EMEA Georg-Aicher-Strasse 7 83026 Rosenheim, Germany Phone: +49 (0) 80 31 405 –...
