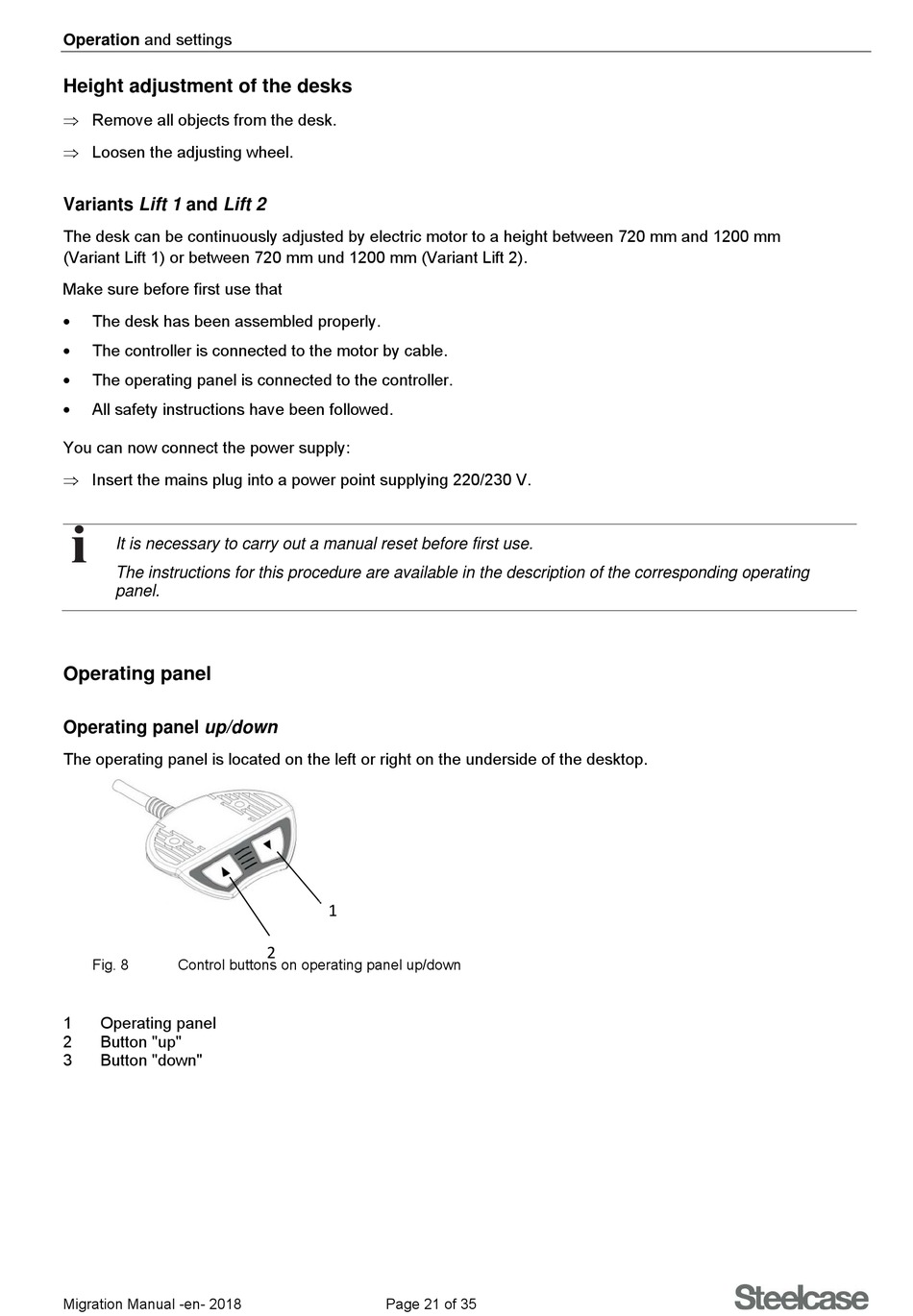

Height Adjustment Of The Desks; Variants Lift 1 And Lift 2; Operating Panel; Operating Panel Up/Down - Steelcase Migration Bench User Manual

Operation and settings

Height adjustment of the desks

 Remove all objects from the desk.
 Loosen the adjusting wheel.

Variants Lift 1 and Lift 2

The desk can be continuously adjusted by electric motor to a height between 720 mm and 1200 mm
(Variant Lift 1) or between 720 mm und 1200 mm (Variant Lift 2).
Make sure before first use that

The desk has been assembled properly.

The controller is connected to the motor by cable.

The operating panel is connected to the controller.

All safety instructions have been followed.
You can now connect the power supply:
 Insert the mains plug into a power point supplying 220/230 V.
It is necessary to carry out a manual reset before first use.
The instructions for this procedure are available in the description of the corresponding operating
panel.

Operating panel

Operating panel up/down

The operating panel is located on the left or right on the underside of the desktop.
Fig. 8 Control buttons on operating panel up/down
1 Operating panel
2 Button "up"
3 Button "down"
