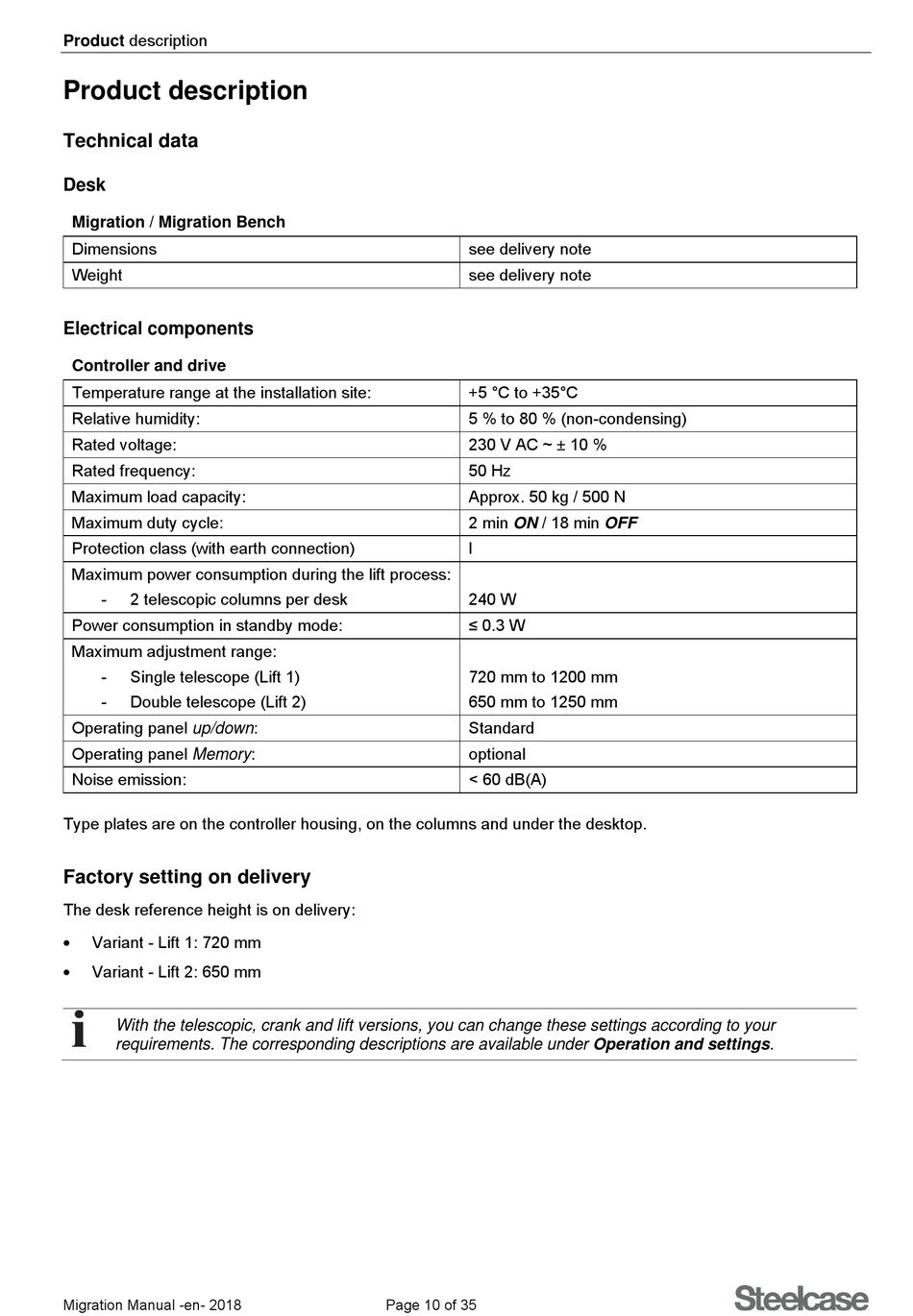

Product description

Product description

Technical data

Desk

Migration / Migration Bench
Dimensions
Weight

Electrical components

Controller and drive
Temperature range at the installation site:
Relative humidity:
Rated voltage:
Rated frequency:
Maximum load capacity:
Maximum duty cycle:
Protection class (with earth connection)
Maximum power consumption during the lift process:
- 2 telescopic columns per desk
Power consumption in standby mode:
Maximum adjustment range:
- Single telescope (Lift 1)
- Double telescope (Lift 2)
Operating panel up/down:
Operating panel Memory:
Noise emission:
Type plates are on the controller housing, on the columns and under the desktop.

Factory setting on delivery

The desk reference height is on delivery:

Variant - Lift 1: 720 mm

Variant - Lift 2: 650 mm
With the telescopic, crank and lift versions, you can change these settings according to your
requirements. The corresponding descriptions are available under Operation and settings.
Migration Manual -en- 2018
see delivery note
see delivery note
+5 °C to +35°C
5 % to 80 % (non-condensing)
230 V AC ~ ± 10 %
50 Hz
Approx. 50 kg / 500 N
2 min ON / 18 min OFF
I
240 W
≤ 0.3 W
720 mm to 1200 mm
650 mm to 1250 mm
Standard
optional
< 60 dB(A)
Page 10 of 35
