Page 7: About This User Manual
Steelcase assumes no liability and gives no warranty for damage or malfunctions resulting from non- compliance with the user manual. This user manual is part of the Migration desk. It is only valid as a complete document. Even when reselling the desk, this user manual is part of the delivery contents. -
Page 8: Safety-Relevant Information And Warnings
About this user manual Safety-relevant information and warnings To prevent personal injury and damage to property, this user manual contains warnings at the appropriate locations. The symbols and signal words have the following meaning: DANGER Danger Source of danger Measures for prevention Used to indicate an imminent dangerous situation that will result in death or severe injury if the safety precautions are not followed. -
Page 9: Safety
Safety Intended use The Migration desk is exclusively designed to be used as office furniture. Any other use, or use beyond the specified intended use is considered to be improper use. Intended use also includes compliance with all instructions in the user manual. -
Page 10: Product Description
Product description Product description Technical data Desk Migration / Migration H Bench Dimensions See delivery note Weight See delivery note Electrical components Controller and drive Temperature range at the setup location: +5 °C bis +35 °C Relative humidity: 5 % to 80 % (non-condensing) Rated voltage: 220 - 240 V AC~ Rated current... -
Page 11: Components
Product description Components The Migration desk mainly consists of the components listed below (the description of the variants can be found under the respective chapter): • Desktop with plastic parts for desktop mounting • Migration: Columns with steel pipe runner (65x25x2 mm), screwed, including adjustment screw for compensating floor unevenness, cable duct (optional) •... -
Page 12: Overview Of Migration And Migration Bench Desks

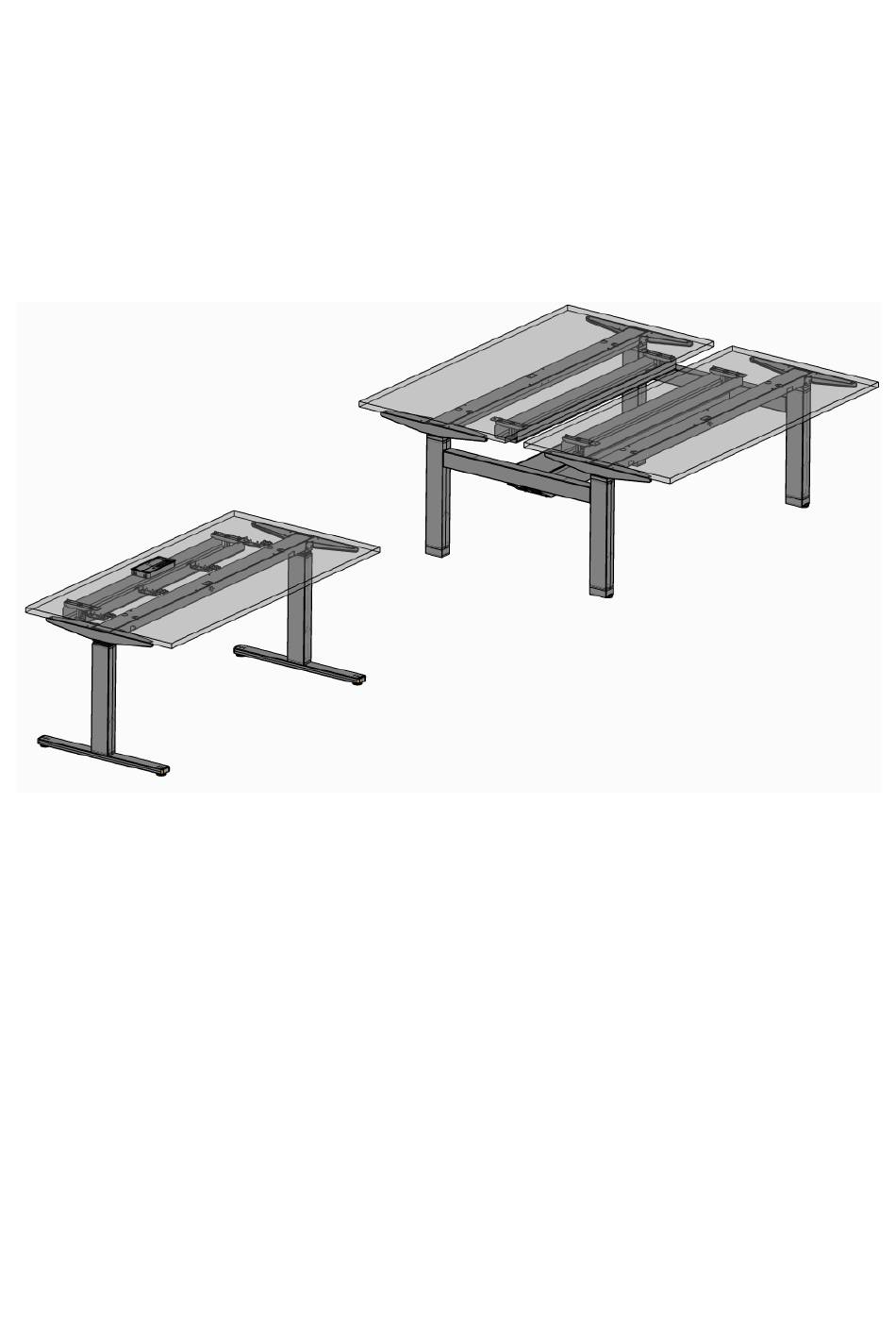

Product description Overview of Migration and Migration Bench desks Each of the illustrations shows one of the many design variants of the Migration and Migration Bench desks. The illustrations merely serve to represent the desk components. Figure 1 Migration, Lift 1/Lift 2/Lift 3 Figure 2 Migration Bench, Lift 1/Lift 2/Lift 3 Desktop Desktop... -
Page 13: Up/Down Control Panel
Product description Up/Down control panel The control panel with the functions "up" and "down" is usually located on the right underside of the desktop. Up/Down control panel Control panel "Up" button "Down" button Memory control panel (optional) Three different memory positions can be entered via the Memory control panel. How to set the memory positions is detailed under Operation and settings. -
Page 14: Electrical Height Adjustment Unit
Product description Electrical height adjustment unit Operation of the electrical height adjustment unit is described under Operation and settings. The electrical height adjustment unit enables the adjustment and fixed programming for three optimum desk heights (sitting and standing heights). The electrical height adjustment unit basically consists of the following components: •... -
Page 15: Transport And Storage
Transport and storage Transport and storage Safety-relevant information WARNING Injury and damage possible! The fastening screws could tear if the desk is lifted by the desktop or the attached components. Always take hold of the desk at the underframe to transport or move it. ATTENTION Risk of damage to lift mechanism! The values saved in the controller do not match the values for another... -
Page 16: Setup And Assembly
• Corner protectors made of polyethylene (PE). These materials are recyclable. If assembled by Steelcase or an assembly company authorised by Steelcase, the manufacturer will dispose of the packaging. If you assemble the desk yourself, please ensure that the packaging material is correctly sorted by type and recycled. -
Page 17: Setting Up The Desk
Setup and assembly Setting up the desk Setup and use of the product requires detailed planning. For this Steelcase offers the services of a separate planning department. The partially assembled components of the Migration desk are generally supplied via retailers or directly from the manufacturer. -
Page 18: Temporarily Disassembling And Reassembling The Desk
Temporarily disassembling and reassembling the desk Temporarily disassembling and reassembling the desk If you want to disassemble, temporarily store and reassemble the desk, for example for a move, see sections Transport and storage and Setup and assembly. Dismantling the desk The desk can be dismantled into its pre-assembled components. -
Page 19: Operation And Settings
Operation and settings Operation and settings Safety-relevant information The Migration desk may only be used and operated when in a technically perfect condition and in compliance with the user manual. Before changing the height of the desk, ensure that: •... -
Page 20: Optimum Desk Height
Operation and settings Ensure that the connecting cables for the devices on the desk are long enough. Optimum desk height The adjustment to the optimum desk height (sitting height) is crucial for the correct sitting posture at the workstation. The correct desk height setting for the workstation can be found in the workstation analysis (pursuant to the German Occupational Safety and Health Act, the German VDU Ordinance, or accident prevention regulations, for example). -
Page 21: Desk Height Adjustment
Operation and settings Desk height adjustment Remove all objects from the desk. Loosen the adjustment wheel. Variants: Lift 1 / Lift 2 / Lift 3 (special lift) The electric motor enables variable vertical desk adjustment to between 720 mm and 1200 mm (Lift 1 variant) or to between 650 mm und 1250 mm (Lift 2 variant) or to between 620 mm and 1280 mm (Lift 3 variant). -
Page 22: Manuel Reset Via Up/Down Control Panel
Operation and settings Manuel reset via Up/Down control panel An end position calibration of the lowest desktop position must be performed: • Before first use. • When the actual desktop position no longer matches the displayed desktop position. • When a previously configured motor controller is used in a different electrically height adjustable workstation of the same design. -
Page 23: Faulty Manual Reset
Operation and settings Faulty manual reset In the event that the manual reset process could not be successfully performed, proceed as follows: Press the "Up" and "Down" buttons simultaneously and keep them depressed for at least 5 seconds. Restart the manual reset process as described above. Adjusting the desktop height with the intuitive control panel Before performing the height adjustment, you must ensure that: •... -
Page 24: Memory Control Panel (Optional)
Operation and settings Memory control panel (optional) Prior to placing the desk in service it is necessary to perform a manual reset. Figure 9 Buttons and display on Memory control panel "Down" button "Up" button Display "STORE" button "MEMORY keypad 1 / 2 / 3 / 4" Manuel reset via Memory control panel WARNING Danger of crushing and shearing! -
Page 25: Adjusting The Desk Height With The Memory Control Panel
Operation and settings Adjusting the desk height with the Memory control panel Before performing the height adjustment, you must ensure that: • The display of the control panel does not show an error message (see Error messages displayed on the Memory control panel). -
Page 26: Switching The Display Between Centimetres And Inches
Operation and settings Switching the display between centimetres and inches A selection can be made to have the height displayed in centimetres [cm] or inches [inch]. This selection does not affect the actual height of the desk. To change the unit displayed, proceed according to the information in the table below: ... -
Page 27: Calling Up A Memory Position
Operation and settings S is indicated on the display. Press the desired memory position button, e.g. 2. S 2 is indicated on the display. The set desktop position will now be saved under the selected memory position button. -
Page 28: Errors And Malfunctions
Error messages displayed on the Memory control panel If faults occur during operation of the Migration desk, please check whether it is operated in accordance with the user manual. In most cases, this manual will help you to locate and correct the fault. -
Page 29: Table Of Error Messages
Errors and malfunctions Table of error messages Display Error description / Cause Measure The SMARTneo motor controller is Wait until the motor controller has equipped with an overheating protection cooled down and the message HOT circuit. This overheating protection disappears from the display. - Page 30 Errors and malfunctions Display Error description / Cause Measure Internal error Perform a reset. Unplug the mains cable and plug it back in after a few seconds. If this error occurs regularly, unplug the mains cable and contact Customer Service.
-
Page 31: Maintenance
Functional checks The Migration desk components should be checked for correct functionality at regular intervals. Pay particular attention to the electrical connections: Regularly check the electrical equipment for the desk. Rectify defects such as loose connections and damaged cables immediately. -
Page 32: Maintenance
Maintenance Maintenance Only authorised and qualified personnel may carry out maintenance work. Please contact our Customer Service Department for assistance (see Repairs and spare parts). Before adjusting the height of the desk, make sure that the desktop is level. If the floor is uneven, align the desktop with the adjusting screws on the feet. -
Page 33: Disclaimer
Coordinate the installation of differing parts with Steelcase. Compliance with the specified maintenance and inspection intervals is required. Disclaimer Steelcase assumes no liability or warranty in the following cases (see Liability): • Inadequate monitoring of the product components (functional checks). •... -
Page 34: Disposing Of The Desk
Disposing of the desk Disposing of the desk Dismantling should only be realised by skilled and qualified personnel. Follow these steps to disassemble and dispose of the Migration desk. Disconnect the desk from the mains. Dismantle the desk into its components. -
Page 35: Customer Service
Repairs and spare parts Original spare parts and accessories can be obtained from the manufacturer. If it is not possible to eliminate faults or malfunctions, please contact the Customer Service Department: Steelcase AG LineOne EMEA Georg-Aicher-Strasse 7 83026 Rosenheim, Germany Phone: +49 (0) 80 31 405 –...
