Features And Functions - NTI RACKMUX-DS17-NT-4DVIHD Installation And Operation Manual

NTI RACKMUX KVM Drawer with UNIMUX Switch

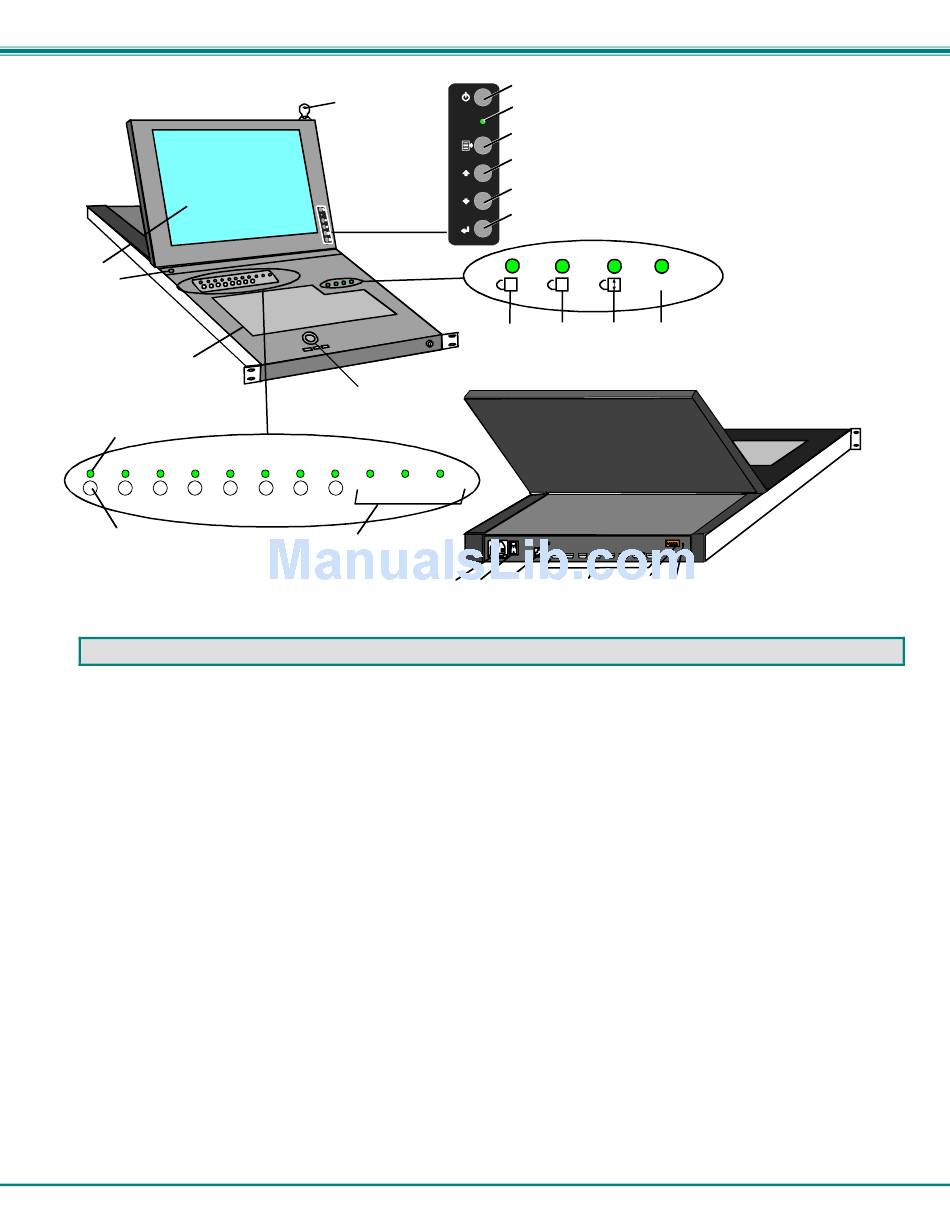

Front View
RACKMUX-DS17-NT-8DVIHD
15
14
13
17
1 2 3 4 5
16

FEATURES AND FUNCTIONS

1. Power Button- press to turn the LCD monitor ON and OFF
2. Power LED- Indicates operation status
Green = Power-ON, Video Input Signal OK
Red = Suspend / Stand-by, or no Video Input Signal
3. Menu Button- press to turn ON the OSD menu
4. Up Arrow Button- press to move the cursor in the OSD menu up
5. Down Arrow Button- press to move the cursor in the OSD menu down
6. Select Button- press to select a menu item (when OSD menu is ON) or press to auto adjust the video quality (when OSD
menu is OFF)
7. NumLock LED- illuminates when the Num Lock is ON
8. CapsLock LED- illuminates when Caps Lock is ON
9. Scroll Lock LED- illuminates when the Scroll Lock keyboard feature is ON
10. Compose LED- illuminates when the Compose keyboard feature is ON
11. Keylock- to prevent unauthorized use of the RACKMUX
12. 3-button Touch Pad or Trackball- for controlling mouse movements on the monitor and controlling the computer
13. Keyboard- for manual data entry and computer control
14. Auto Shut-OFF- switch automatically shuts OFF the LCD display when the monitor is folded down
15. LCD Display- for viewing the video signal from the connected CPU
16. CPU Select Switch- push to manually switch to a specific CPU or change the switch operating mode
17. CPU Status LED- for visual indication of connection between the user and a specific CPU
18. Mode Status LEDs- for visual indication of switch operating mode
19. IEC Connector w/Built-in 2A 240VAC Replaceable Fuse- for attachment of the AC power cord to power the RACKMUX
drawer
20. Power Switch- to power the RACKMUX ON/OFF
21. RS232- RJ45 connector- for attachment of an RS232 control cable
22. CPU x- HDMI Type A female connectors- for connecting USB-DHEXT-xx-MM cables from CPUs
23. RS232 DIP Switches- for controlling the baud rate of the RACKMUX for RS232 communication
24. DDC- recessed button used to reset DDC information between the RACKMUX and the connected CPU
11
12
Broadcast Command
Scan
6 7 8
18
19
1
2
3
4
5
6
Compose
1 A
7 8 9
VIDEO 8 VIDEO 7 VIDEO 6 VIDEO 5 VIDEO 4 VIDEO 3 VIDEO 2 VIDEO 1
23
22
20 21
3
10
ON DDC
1 8
24
Rear View
RACKMUX-DS17-NT-8DVIHD
