NTI UNIMUX 2-PORT USB KVM SWITCH

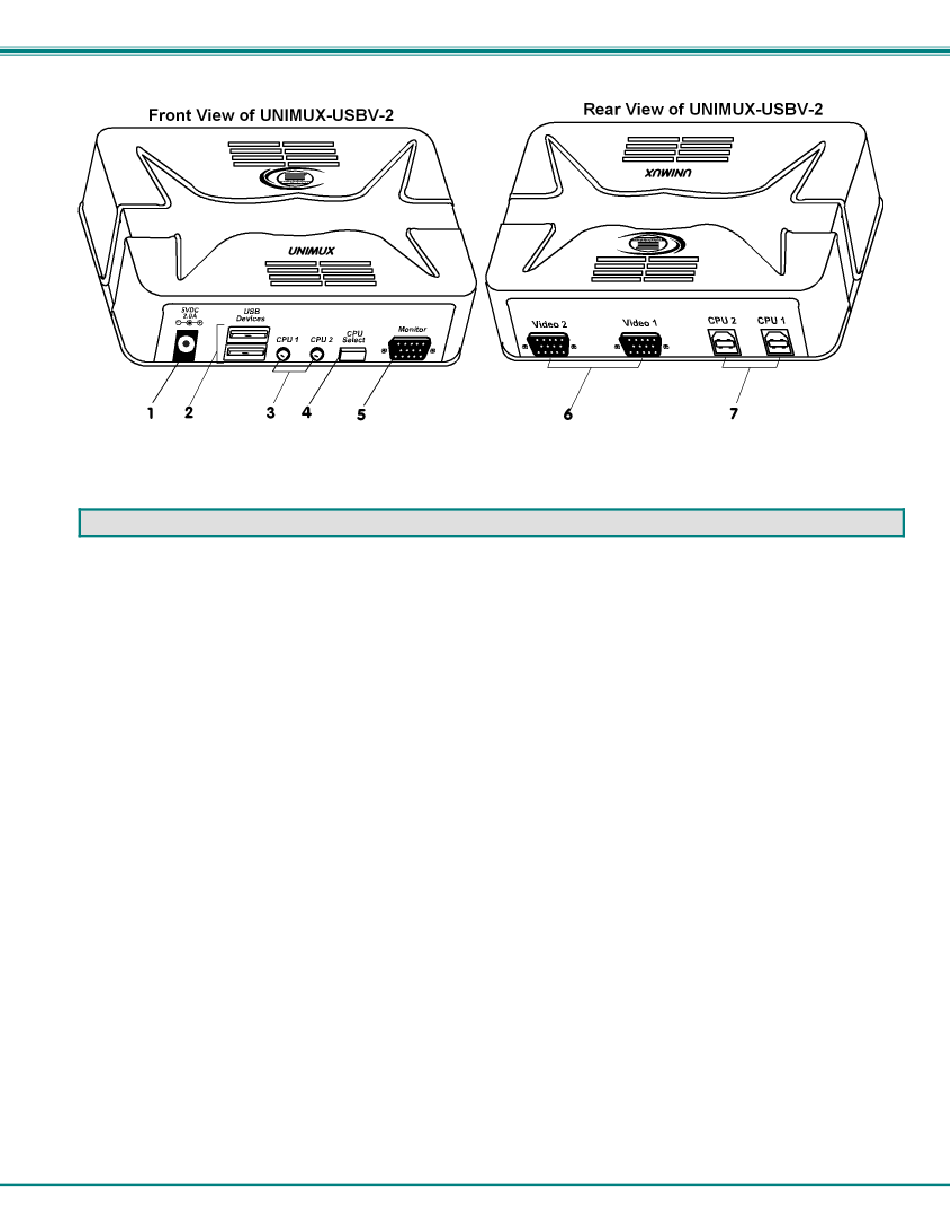

FEATURES AND FUNCTIONS

1. 5VDC- connection jack for the AC adapter
2. USB DEVICES- USB type A female receptacles- for connection of user USB device(s)
3. CPU Status/Mode LEDs- for visual indication of switch connection between the user and a specific CPU as well
as mode status
4. CPU Select Switch- push to manually switch to a specific CPU or to change the switch operating mode
5. MONITOR- for connection of the user video monitor
6. VIDEO x- Video connectors- for connecting video cables from CPUs
7. CPU x- USB type B female receptacles-for connection of USB device cables from CPUs
