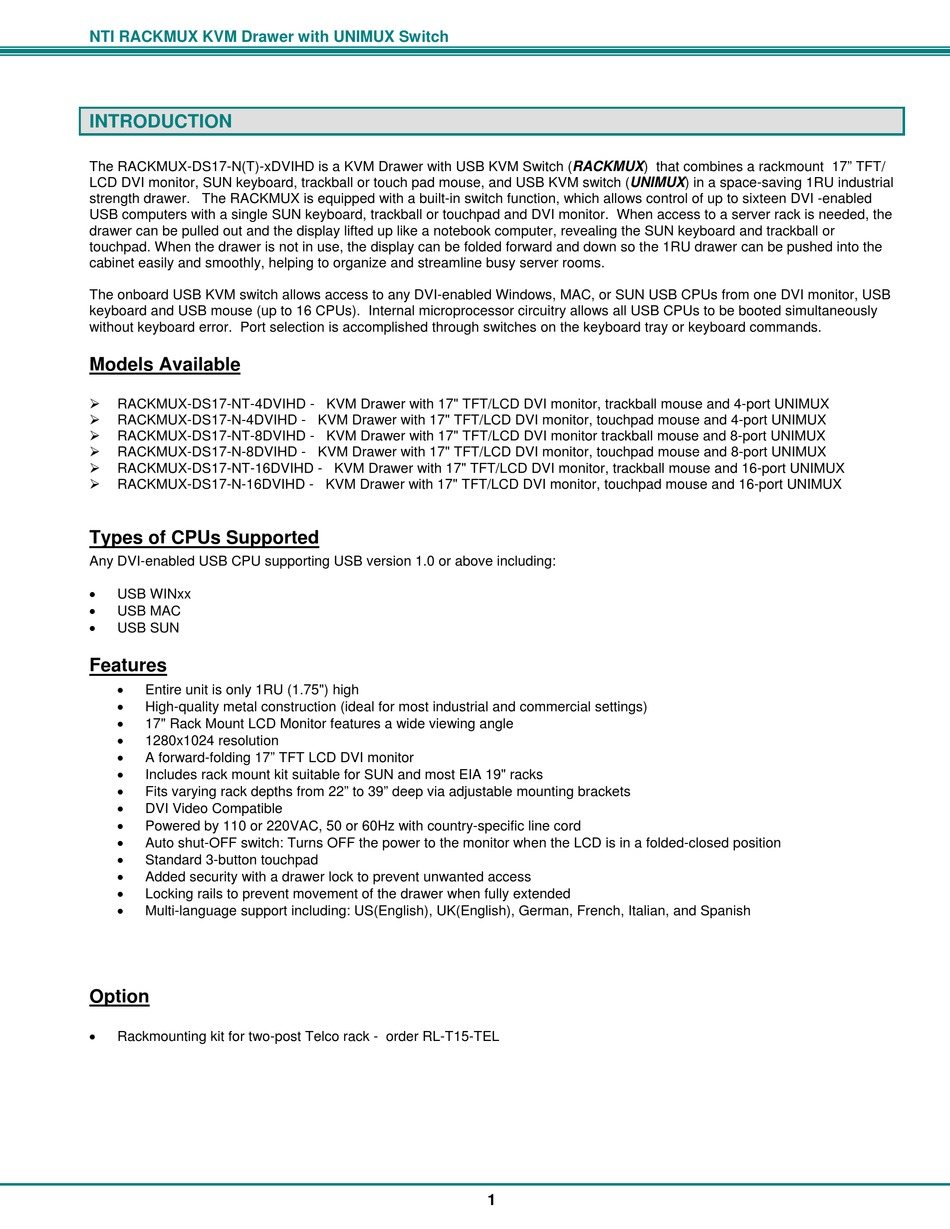

INTRODUCTION

The RACKMUX-DS17-N(T)-xDVIHD is a KVM Drawer with USB KVM Switch (RACKMUX) that combines a rackmount 17" TFT/
LCD DVI monitor, SUN keyboard, trackball or touch pad mouse, and USB KVM switch (UNIMUX) in a space-saving 1RU industrial
strength drawer. The RACKMUX is equipped with a built-in switch function, which allows control of up to sixteen DVI -enabled
USB computers with a single SUN keyboard, trackball or touchpad and DVI monitor. When access to a server rack is needed, the
drawer can be pulled out and the display lifted up like a notebook computer, revealing the SUN keyboard and trackball or
touchpad. When the drawer is not in use, the display can be folded forward and down so the 1RU drawer can be pushed into the
cabinet easily and smoothly, helping to organize and streamline busy server rooms.
The onboard USB KVM switch allows access to any DVI-enabled Windows, MAC, or SUN USB CPUs from one DVI monitor, USB
keyboard and USB mouse (up to 16 CPUs). Internal microprocessor circuitry allows all USB CPUs to be booted simultaneously
without keyboard error. Port selection is accomplished through switches on the keyboard tray or keyboard commands.

Models Available


RACKMUX-DS17-NT-4DVIHD - KVM Drawer with 17" TFT/LCD DVI monitor, trackball mouse and 4-port UNIMUX

RACKMUX-DS17-N-4DVIHD - KVM Drawer with 17" TFT/LCD DVI monitor, touchpad mouse and 4-port UNIMUX

RACKMUX-DS17-NT-8DVIHD - KVM Drawer with 17" TFT/LCD DVI monitor trackball mouse and 8-port UNIMUX

RACKMUX-DS17-N-8DVIHD - KVM Drawer with 17" TFT/LCD DVI monitor, touchpad mouse and 8-port UNIMUX

RACKMUX-DS17-NT-16DVIHD - KVM Drawer with 17" TFT/LCD DVI monitor, trackball mouse and 16-port UNIMUX

RACKMUX-DS17-N-16DVIHD - KVM Drawer with 17" TFT/LCD DVI monitor, touchpad mouse and 16-port UNIMUX

Types of CPUs Supported

Any DVI-enabled USB CPU supporting USB version 1.0 or above including:

USB WINxx

USB MAC

USB SUN

Features


Entire unit is only 1RU (1.75") high

High-quality metal construction (ideal for most industrial and commercial settings)

17" Rack Mount LCD Monitor features a wide viewing angle

1280x1024 resolution

A forward-folding 17" TFT LCD DVI monitor

Includes rack mount kit suitable for SUN and most EIA 19" racks

Fits varying rack depths from 22" to 39" deep via adjustable mounting brackets

DVI Video Compatible

Powered by 110 or 220VAC, 50 or 60Hz with country-specific line cord

Auto shut-OFF switch: Turns OFF the power to the monitor when the LCD is in a folded-closed position

Standard 3-button touchpad

Added security with a drawer lock to prevent unwanted access

Locking rails to prevent movement of the drawer when fully extended

Multi-language support including: US(English), UK(English), German, French, Italian, and Spanish
Option

Rackmounting kit for two-post Telco rack - order RL-T15-TEL
