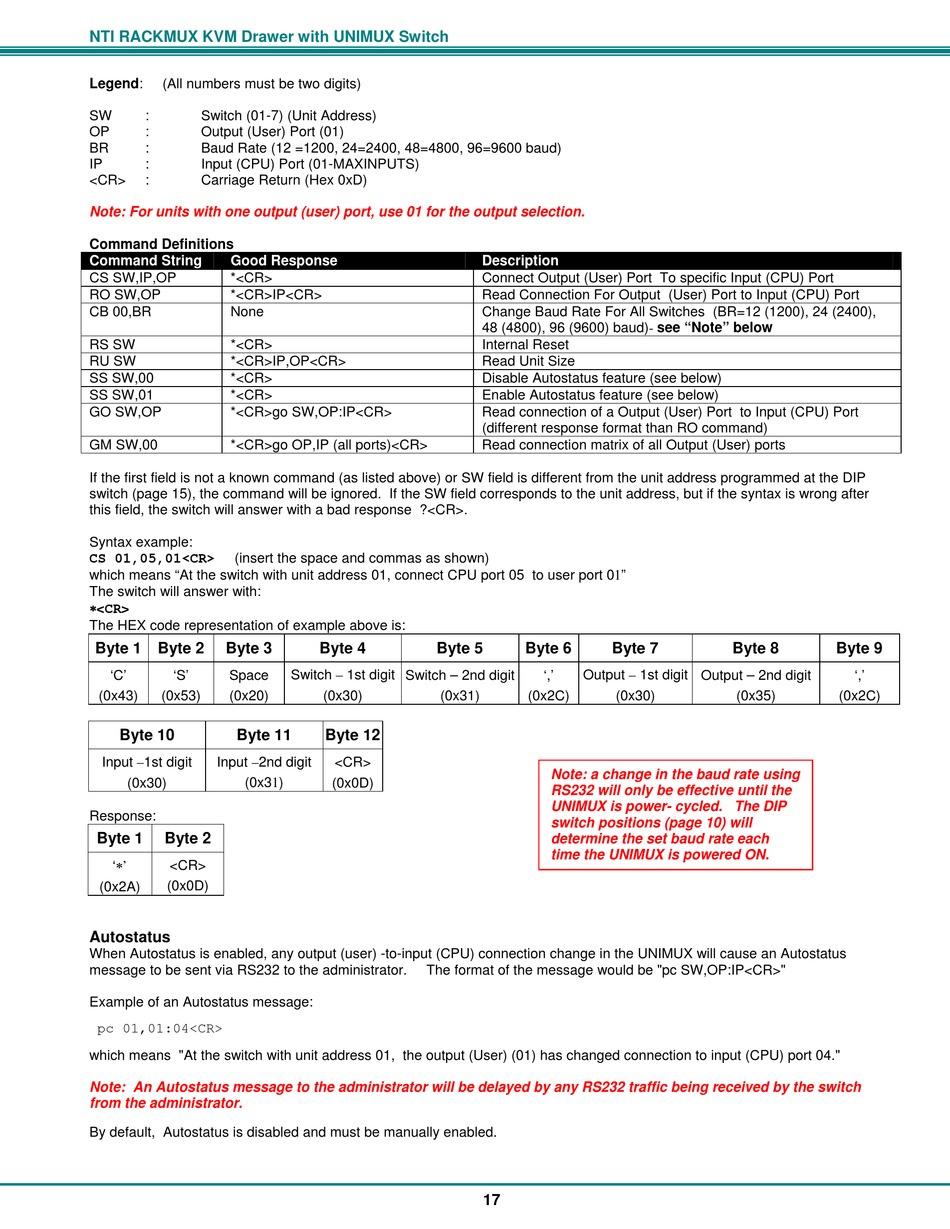

NTI RACKMUX-DS17-NT-4DVIHD Installation And Operation Manual page 21

NTI RACKMUX KVM Drawer with UNIMUX Switch
Legend: (All numbers must be two digits)
SW : Switch (01-7) (Unit Address)
OP : Output (User) Port (01)
BR : Baud Rate (12 =1200, 24=2400, 48=4800, 96=9600 baud)
IP : Input (CPU) Port (01-MAXINPUTS)
<CR> : Carriage Return (Hex 0xD)
Note: For units with one output (user) port, use 01 for the output selection.
Command Definitions
Command String Good Response
CS SW,IP,OP *<CR>
RO SW,OP *<CR>IP<CR>
CB 00,BR None
RS SW *<CR>
RU SW *<CR>IP,OP<CR>
SS SW,00 *<CR>
SS SW,01 *<CR>
GO SW,OP *<CR>go SW,OP:IP<CR>
GM SW,00 *<CR>go OP,IP (all ports)<CR>
If the first field is not a known command (as listed above) or SW field is different from the unit address programmed at the DIP
switch (page 15), the command will be ignored. If the SW field corresponds to the unit address, but if the syntax is wrong after
this field, the switch will answer with a bad response ?<CR>.
Syntax example:
(insert the space and commas as shown)
CS 01,05,01<CR>
which means "At the switch with unit address 01, connect CPU port 05 to user port 01"
The switch will answer with:
<CR>
The HEX code representation of example above is:
Byte 1 Byte 2 Byte 3
'C' 'S' Space
(0x43) (0x53) (0x20)
Byte 10 Byte 11
Input –1st digit Input –2nd digit
(0x30) (0x31)
Response:
Byte 1 Byte 2
<CR>
''
(0x0D)
(0x2A)
Autostatus
When Autostatus is enabled, any output (user) -to-input (CPU) connection change in the UNIMUX will cause an Autostatus
message to be sent via RS232 to the administrator.
Example of an Autostatus message:
pc 01,01:04<CR>
which means "At the switch with unit address 01, the output (User) (01) has changed connection to input (CPU) port 04."
Note: An Autostatus message to the administrator will be delayed by any RS232 traffic being received by the switch
from the administrator.
By default, Autostatus is disabled and must be manually enabled.
Byte 4 Byte 5
Switch – 1st digit
Switch – 2nd digit
(0x30) (0x31)
Byte 12
<CR>
(0x0D)
The format of the message would be "pc SW,OP:IP<CR>"
Description
Connect Output (User) Port To specific Input (CPU) Port
Read Connection For Output (User) Port to Input (CPU) Port
Change Baud Rate For All Switches (BR=12 (1200), 24 (2400),
48 (4800), 96 (9600) baud)- see "Note" below
Internal Reset
Read Unit Size
Disable Autostatus feature (see below)
Enable Autostatus feature (see below)
Read connection of a Output (User) Port to Input (CPU) Port
(different response format than RO command)
Read connection matrix of all Output (User) ports
Byte 6 Byte 7
Output – 1st digit
','
(0x2C) (0x30)
Note: a change in the baud rate using
RS232 will only be effective until the
UNIMUX is power- cycled. The DIP
switch positions (page 10) will
determine the set baud rate each
time the UNIMUX is powered ON.
17
Byte 8 Byte 9
Output – 2nd digit ','
(0x35) (0x2C)
