Front View
RACKMUX-V15-N-PRIMUX

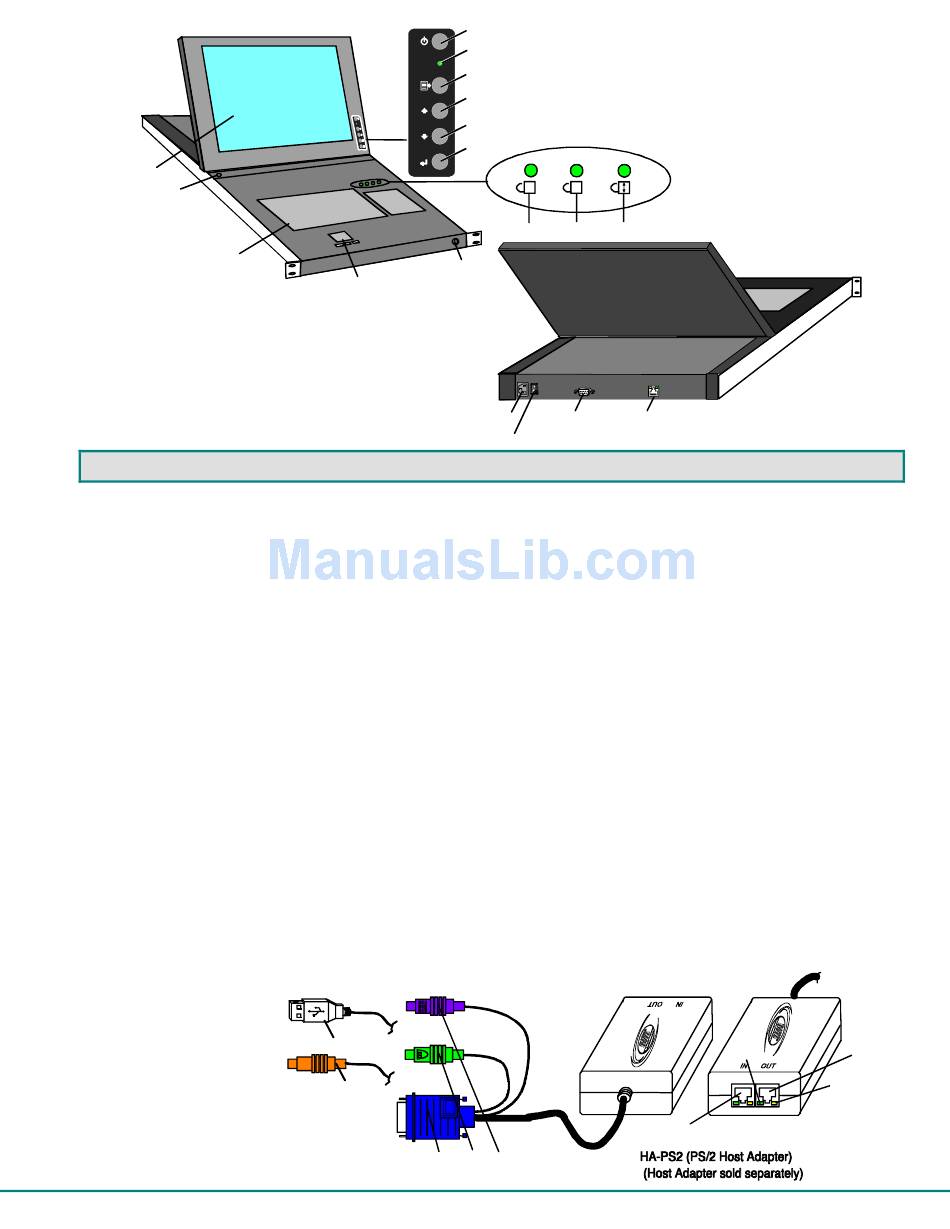

FEATURES AND FUNCTIONS

1. Power Button- press to turn the LCD monitor ON and OFF
2. Power LED- Indicates operation status
Green = Power-ON, Video Input Signal OK
Red = Suspend / Stand-by, or no Video Input Signal
3. Menu Button- press to turn ON the OSD menu
4. Up Arrow Button- press to move the cursor in the OSD menu up
5. Down Arrow Button- press to move the cursor in the OSD menu down
6. Select Button- press to select a menu item (when OSD menu is ON) or press to auto adjust the video quality (when OSD
menu is OFF)
7. NumLock LED- illuminates when the number lock is ON
8. CapsLock LED- illuminates when CapsLock is ON.
9. Scroll Lock LED- illuminates when the Scroll Lock keyboard feature is ON.
10. LCD Display- for viewing the video signal from the connected CPU
11. Auto Shut-OFF- switch automatically shuts OFF the LCD display when the monitor is folded down
12. 3-button touch pad- for controlling mouse movements on the monitor and controlling the computer
13. Keylock- to prevent unauthorized use of the RACKMUX
14. Keyboard- for manual data entry and computer control
15. IEC Connector w/Built-in 2A 240VAC Replaceable Fuse- for attachment of the IEC power cord to power the RACKMUX
drawer
16. Switch- for powering ON and OFF the RACKMUX drawer
17. RS232- DB9 male- serial communication port for updating firmware
18. Cat5 - RJ45 female- for connection of CAT5 cable between Host Adapter and User Station
18a. Yellow LED- power indicator- illuminates when power has been supplied to the unit
18b. Green LED- traffic indicator- illuminates when there is communication between the User Station and Host Adapters.
19. Video Connector- blue 15HD male- for connecting to the video port on the CPU
20. Mouse Connector- green male 6 miniDIN (HA-PS2 only)- for connecting to the mouse port on a PS2 CPU
21. Keyboard Connector- purple male 6 miniDIN (HA-PS2 only)- for connecting to the keyboard port on a PS2 CPU
21a. Device Connector- male USB Type A (HA-USB only)- for connecting to a device port on a USB CPU
21b. Device Connector- orange male 8 miniDIN (HA-SUN only) - for connecting to the device port on a SUN CPU
22. Cat5- RJ45 female- for connection of CAT5 cable between daisy-chained Host Adapters
