NTI RACKMUX KVM Drawer with UNIMUX Switch
Note: To provide sufficient room for the LCD monitor to be opened to a proper viewing angle (a minimum 90 degree
position from the keyboard), ensure that all devices mounted above the RACKMUX extend no more than 1.75" from the
rack frame. (See Figure 8)

Optional Telco 2-Post Mounting

If the Telco 2-post mounting bracket kit (NTI# RL-T15-TEL) is to be used, secure the short and long brackets to each side of the
drawer as shown in Figure 9.
screws (supplied) per bracket to the post at the desired height.
adjustments easy. Be sure to properly tighten all nuts and screws before using the drawer.
"X" must be
less than 1.75"
for LCD to open
to full 90
90
Side View of RACKMUX

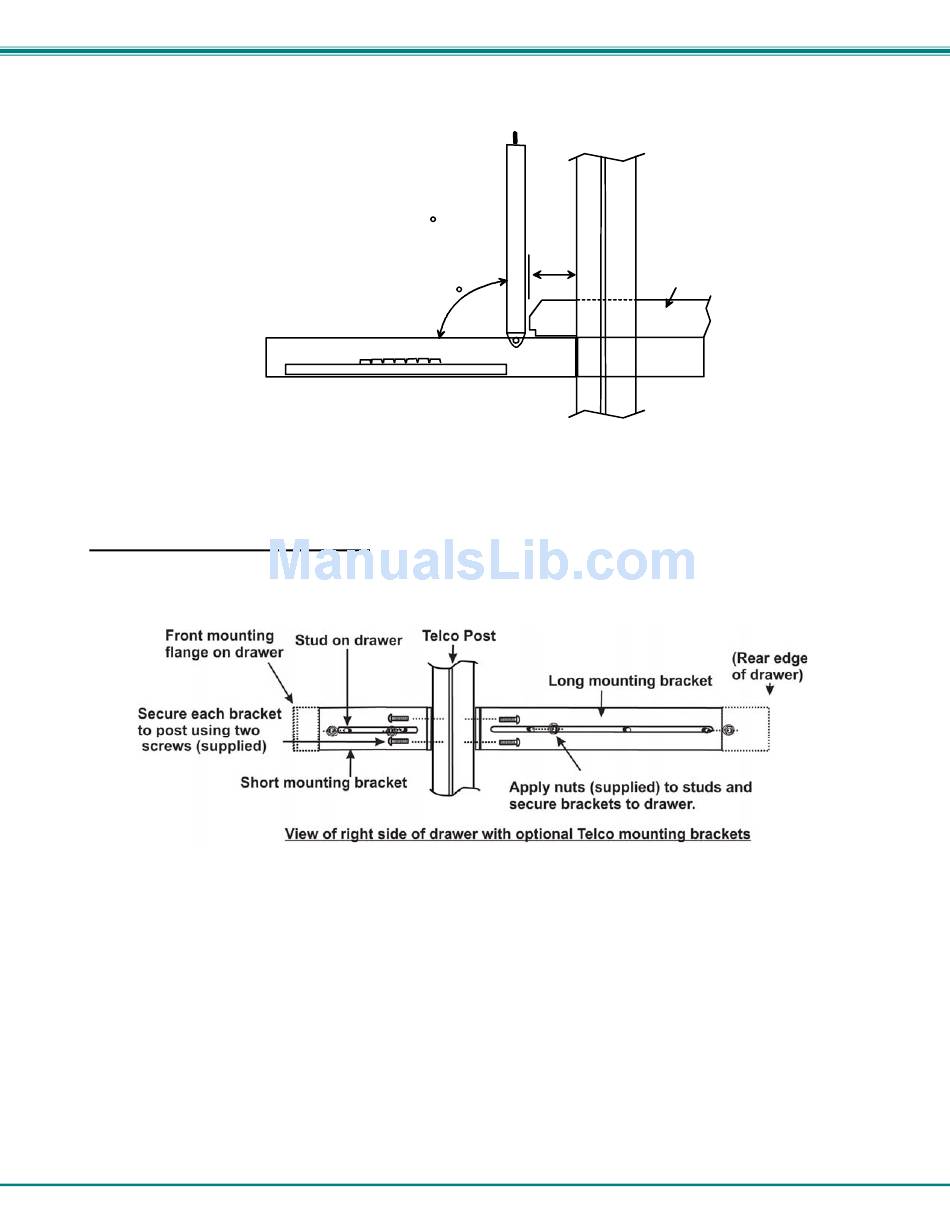

Figure 8- Position RACKMUX with clearance to open

Apply 2 nuts (supplied) per bracket to secure the brackets to the drawer. Apply two #10-32x3/4"

Figure 9- Mount to Telco post with optional mounting brackets

Server mounted
X above RACKMUX
in the same rack
Slots are provided in the brackets to make minor depth
8
