Setup Menu

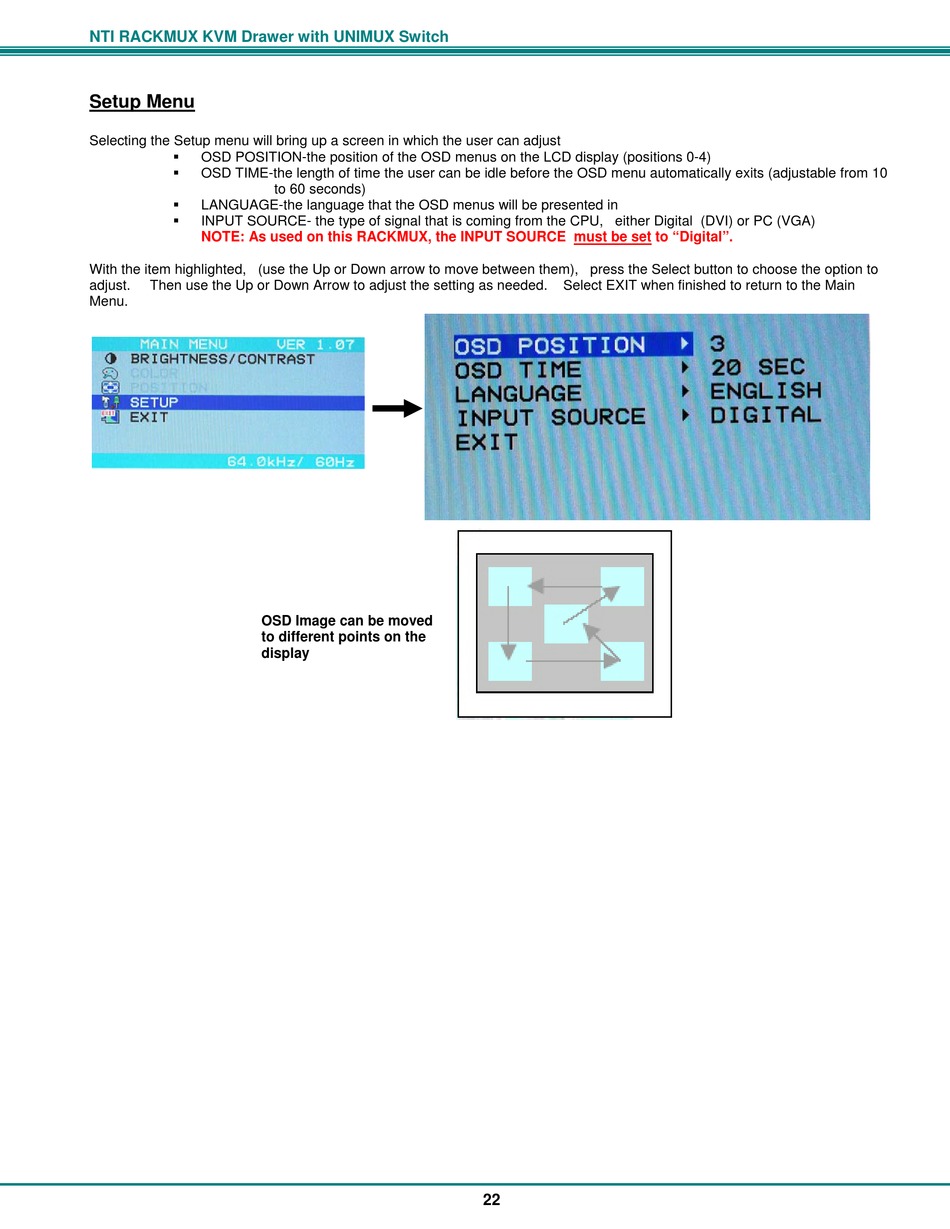

Selecting the Setup menu will bring up a screen in which the user can adjust

OSD POSITION-the position of the OSD menus on the LCD display (positions 0-4)

OSD TIME-the length of time the user can be idle before the OSD menu automatically exits (adjustable from 10

LANGUAGE-the language that the OSD menus will be presented in

INPUT SOURCE- the type of signal that is coming from the CPU, either Digital (DVI) or PC (VGA)
NOTE: As used on this RACKMUX, the INPUT SOURCE must be set to "Digital".
With the item highlighted, (use the Up or Down arrow to move between them), press the Select button to choose the option to
adjust. Then use the Up or Down Arrow to adjust the setting as needed.
Menu.
OSD Image can be moved
to different points on the
display
to 60 seconds)
Select EXIT when finished to return to the Main
