DISPLAY FUNCTIONS

An NTI RACKMUX with a 17" monitor supports resolutions up to SXGA (1280x1024) with a refresh rate at between 55 and 76Hz.
The quality of the image on the LCD monitor is adjustable using an On Screen Display (OSD) menu using the control buttons on
the RACKMUX.

Standard Controls

The RACKMUX has 5 standard control buttons and a power LED. The 5 standard control buttons operate as follows:
The Power button turns the RACKMUX LCD and backlight ON and OFF as desired.
The Power LED located immediately below the Power button is a dual color
LED.
It will illuminate with a green color when the RACKMUX is powered
ON and working properly.
is powered ON but there is no input signal detected.
The Menu button is used to bring up the OSD menu where the various
settings of the LCD display can be adjusted. Once the OSD screen is
displayed, the Menu button is used to make selections within the menus.
See "OSD Control Menu" (below) for more on LCD display settings.
The Up and Down Arrow buttons are used to navigate through the menus.
Move the cursor up or down as desired to highlight an item for selection.
Once an item is highlighted, pressing the Menu button will select it.
Note: When the OSD Menu is OFF, the Up Arrow is used to toggle
between a "PC" (VGA) and "Digital" (DVI) input source.
The Select button is used to make selections within the OSD menus when the OSD menu is ON. When the OSD menu is
OFF, the Select button will act as an Auto Adjust button to keep the user from having to use the menus to adjust the quality
of the image on the monitor.
Note: In order to display the OSD Menu, the RACKMUX must first be connected to a video source (see "Connect the
Cables" – page 9).
Note: If the message "NO SIGNAL" appears when the monitor is powered-ON, the monitor may be set for a "PC" (VGA)
input source. Press the Up Arrow button on the monitor to toggle the monitor input source setting to "Digital" (DVI).
It will illuminate with a red color if the RACKMUX
Power
ON/OFF
Power LED
Up Arrow
Down Arrow
Select/
Auto Adjust
20
Menu
Controls for the
OSD Menus

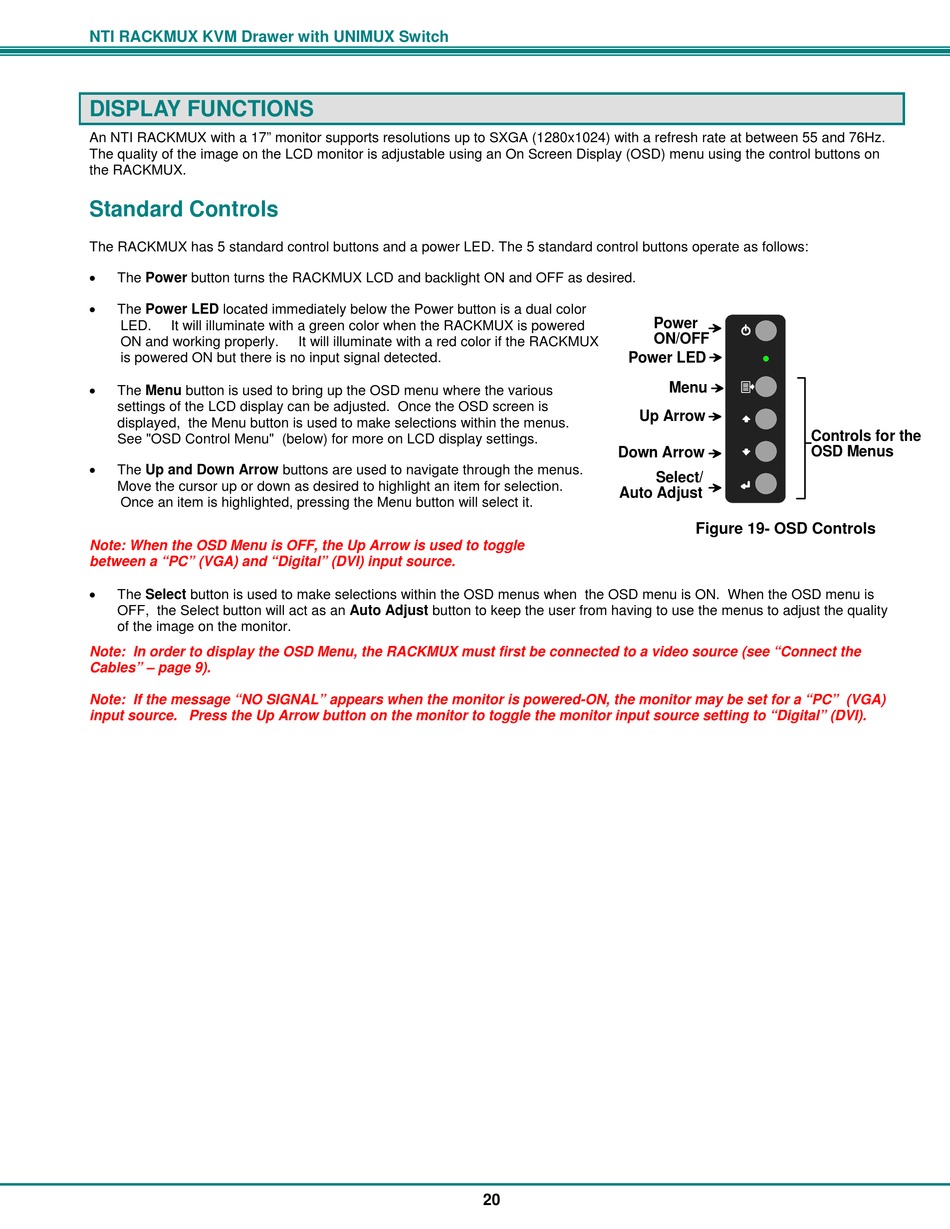

Figure 19- OSD Controls
