NTI RACKMUX KVM Drawer with UNIMUX Switch

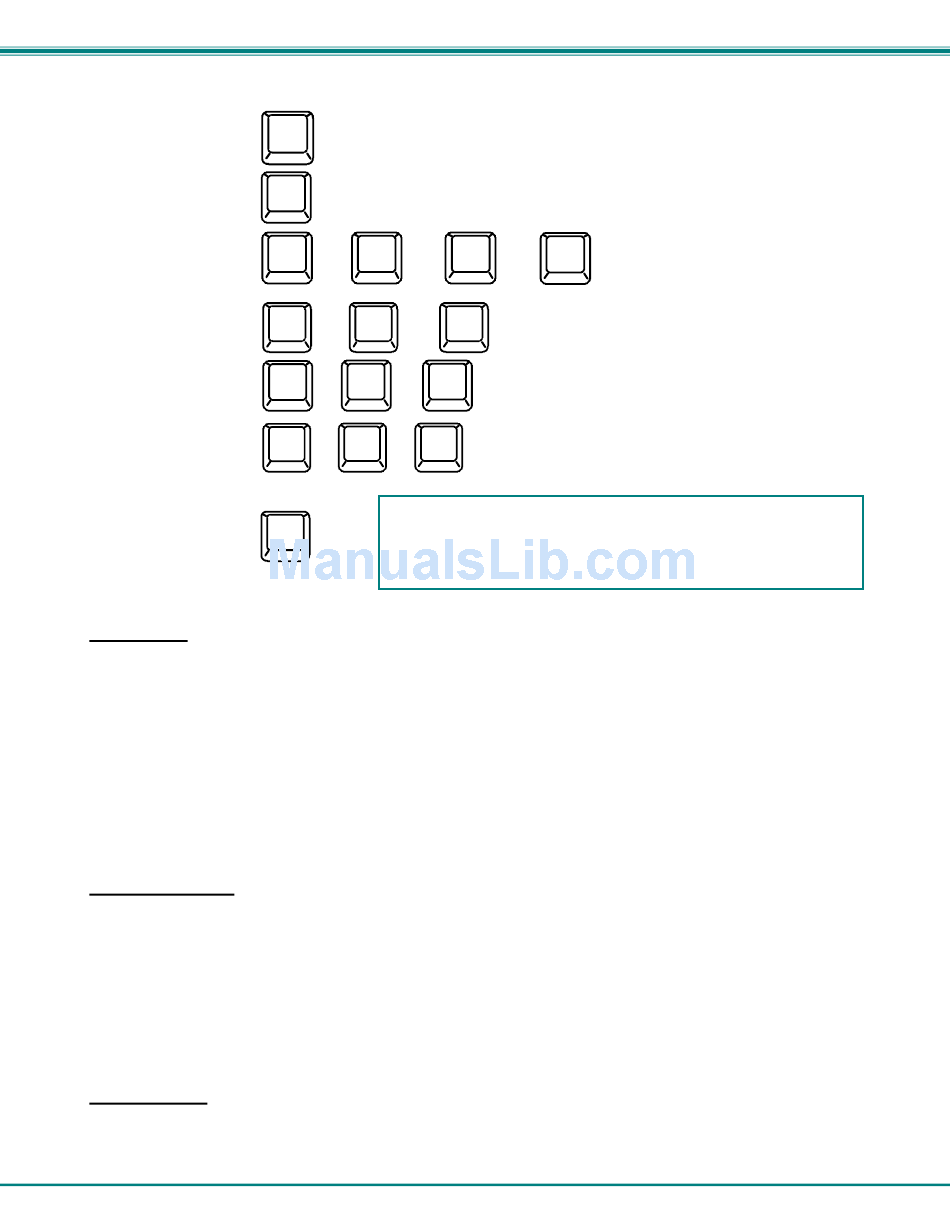

Toggle Scan Mode
ON and OFF
Toggle Broadcast Mode
ON and OFF
Sets scan time-out
period for each port.
Selects a specific
port
Configure port to connect
To a MAC CPU
Configure port to connect
To a WINDOWS or SUN
CPU
Exit Command Mode

Scan Mode

To activate Scan Mode press <S> while in Command Mode menu. When in Scan Mode the switch scans to each port with a CPU
powered-ON. (The SCAN LED on the front panel will illuminate and remain ON while in Scan Mode. ) The port with the CPU
powered-ON remains active while in use until it becomes idle for the configured dwell time (default time-out period is 5 seconds)
before switching to the next powered-ON CPU port. See Command Mode section above for configuring the scan dwell time.
Note: The keyboard and mouse must remain idle for the full scan dwell time before the switch selects the next active
port.
To begin scanning, press <Esc> to exit Command Mode.
To deactivate Scan Mode press <S> again while in Command Mode.

Broadcast Mode

To activate Broadcast Mode press <B> while in Command Mode. Broadcast Mode enables the user to type characters to all
powered-ON CPUs simultaneously.
Note: The user must type somewhat slowly (less than 20 wpm) when in Broadcast Mode and cannot use the
<Backspace> key.
To begin broadcasting, press <Esc> to exit Command Mode.
To deactivate Broadcast Mode press <B> again while in Command Mode.

Normal Mode

When the Broadcast, Scan, and Command LEDs are all OFF the user is in Normal Mode, controlling the CPU to which the user is
connected through the UNIMUX.
S
(The SCAN Mode LED will
also toggle ON and OFF)
B
(The Broadcast Mode LED
will toggle ON and OFF.)
(0-2)
T -
-
x
(0-9)
(0-9)
P - -
x
M
x x
+ +
W
+ x + x
FYI: The user must exit Command Mode to type to a CPU.
Esc
To exit Command Mode, either hold down any touch-switch on the
front panel for more than 2 seconds, OR press <ESC> on the
keyboard.
(xxx from 002 to 255. ie. T002
(0-9) (0-9)
-
would set the time-out period
x x
for 2 seconds)
(Pxx would be P01, P02, etc.)
x
(xx= 01-8 <M> + <0> + <1> will enable function on Port 1
<M> + <0> + <4> will enable function on Port 4. Keyboard
LED's will flash once to confirm command. )
(xx= 01-8 <W> + <0> + <1> will disable function on Port 1
<W> + <0> + <4> will disable function on Port 4. Keyboard
LED's will flash once to confirm command. )
