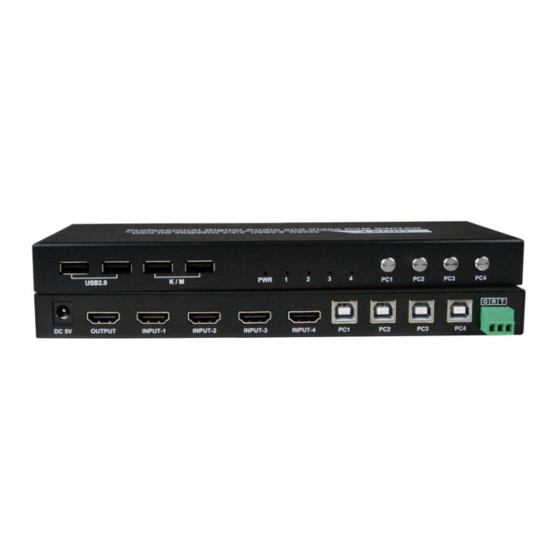

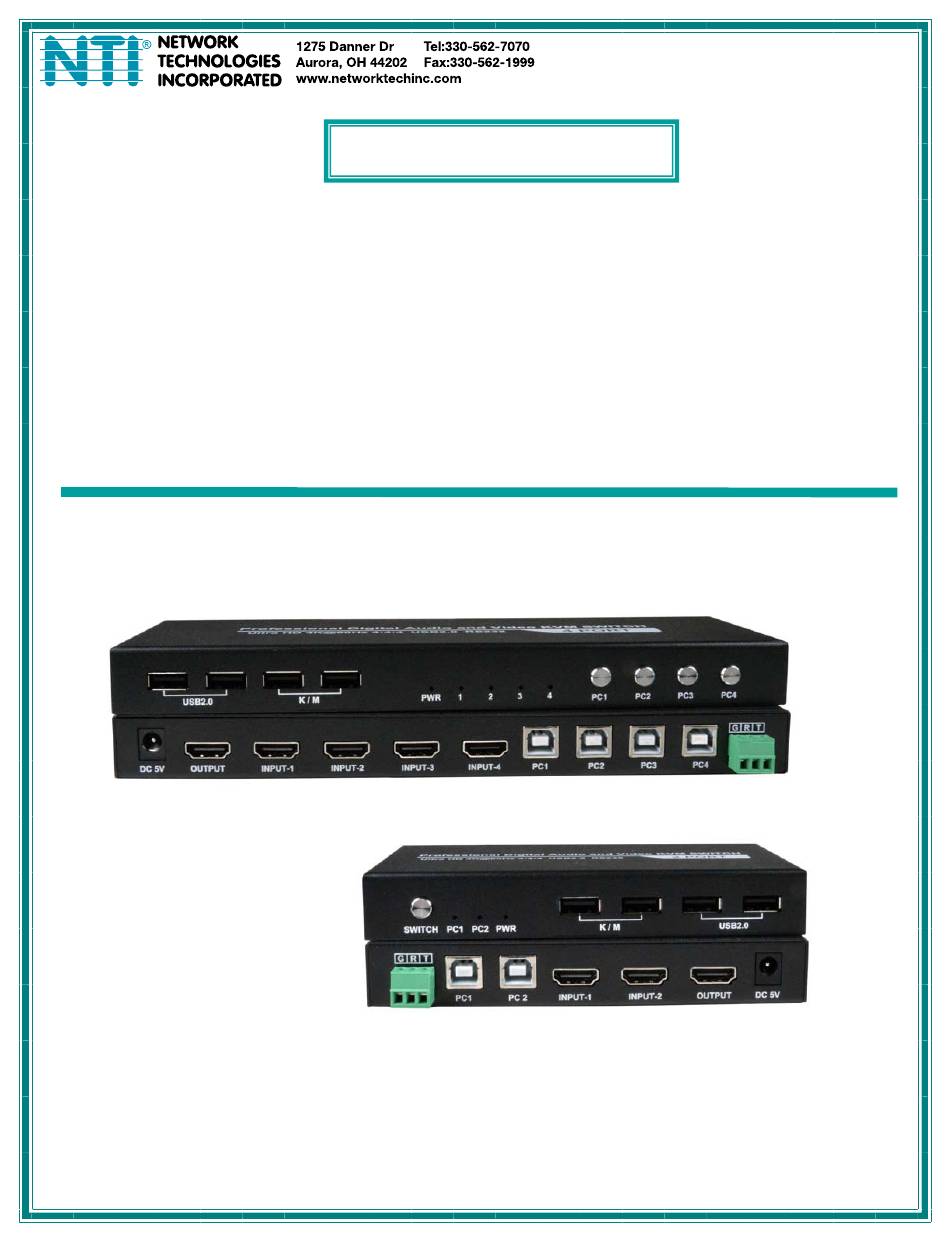

- Page 1 ® UNIMUX Series UNIMUX-HD4K18GB-4LC Low-Cost 4K 18Gbps HDMI USB KVM Switch Installation and Operation Manual UNIMUX-HD4K18GB-4LC (Front and Rear Views) UNIMUX-HD4K18GB-2LC (Front and Rear Views) MAN425 Rev Date 08/24/2022...
- Page 2 TRADEMARK UNIMUX and the NTI logo are registered trademarks of Network Technologies Inc in the U.S. and other countries. All other brand names and trademarks or registered trademarks are the property of their respective owners. COPYRIGHT Copyright © 2022 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................1 Features and Functions..............................3 Connections..................................4 Control Methods ................................5 Buttons..................................5 Hot Keys ..................................5 RS232 Control ................................8 Technical Specifications..............................9 Warranty Information..............................10... -
Page 4: Introduction
NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH INTRODUCTION The UNIMUX™ 4K 18Gbps HDMI USB KVM Switch allows a user to control up to four HDMI 2.0 Ultra-HD 4Kx2K 60Hz 4:4:4 USB computers with one USB keyboard, USB mouse and 4K HDMI monitor. - Page 5 NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH Maximum HDMI Cable Length NTI Cable 1920x1080@60Hz 3840x2160 and 4096x2160 50 ft 20 ft (@60Hz) HD-xx-MM (xx ≤ 50) 50 ft 50 ft (@60Hz) HD-ACT-xx-MM (xx ≤ 50) HD-ACT-xx-MM 100 ft 100 ft (@30Hz) (xx >...
-
Page 6: Features And Functions
NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH FEATURES AND FUNCTIONS LABEL CONNECTOR/LED DESCRIPTION USB Type A Female For transparent USB devices to connect- supports low/full/high speed USB USB 2.0 USB Type A Female For keyboard and mouse to connect... -
Page 7: Connections
NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH CONNECTIONS 1. Connect HDMI cables from computers to the “INPUT x” ports. See “Cables” under “Technical Specifications” on page 6 for the many options available. 2. Connect USB cables (50 inch cables supplied) from computers to the “PCx” ports. -
Page 8: Control Methods
NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH CONTROL METHODS The UNIMUX-HD4K18GB-xLC can be controlled using four different methods: 1. Push the "PCx" button on the front panel 2. Using the keyboard and selecting a Hot Key to use 3. Using a device with RS232 Terminal Program 4. - Page 9 NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH [Caps] ++ [Caps] + [S] Turn on/turn off the Auto Polling function; the default switching time interval is 5 seconds, (press "ESC" to exit) Set the polling switching time interval, valid range：5-999 seconds...
- Page 10 NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH Notes： [*1]: “++” means press 2 times in quick succession, For example: [Scroll] ++ [Scroll] + [1] means press Scroll key twice in quick succession, then press the number "1" again The detection timeout between each hotkey code is 2 seconds, so if the Scroll key is pressed once, and then pressed again after 2 seconds, the hotkey combination will be invalid.
-
Page 11: Rs232 Control
NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH RS232 Control If you want to control the UNIMUX using RS232, connect a cable between your control device and the "RS232" terminals as follows: RS232 host’s TxD to UNIMUX “R” terminal RS232 host’s RxD to UNIMUX “T” terminal RS232 host’s GND to UNIMUX “G"... -
Page 12: Technical Specifications
NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH TECHNICAL SPECIFICATIONS Hosts Female HDMI-A connectors. Female USB Type B connectors. Supports USB-enabled computers (Windows, Linux and MAC) with HDMI video. Multiplatform support: Windows 7/10/11, Windows Server 2008/2012/2016/2019/2022, Linux, and MAC OS 10/11/12. -
Page 13: Warranty Information
NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com...
