Features And Functions - NTI UNIMUX-DVI-2 Installation And Operation Manual

NTI UNIMUX 2-Port USB DVI KVM Switch

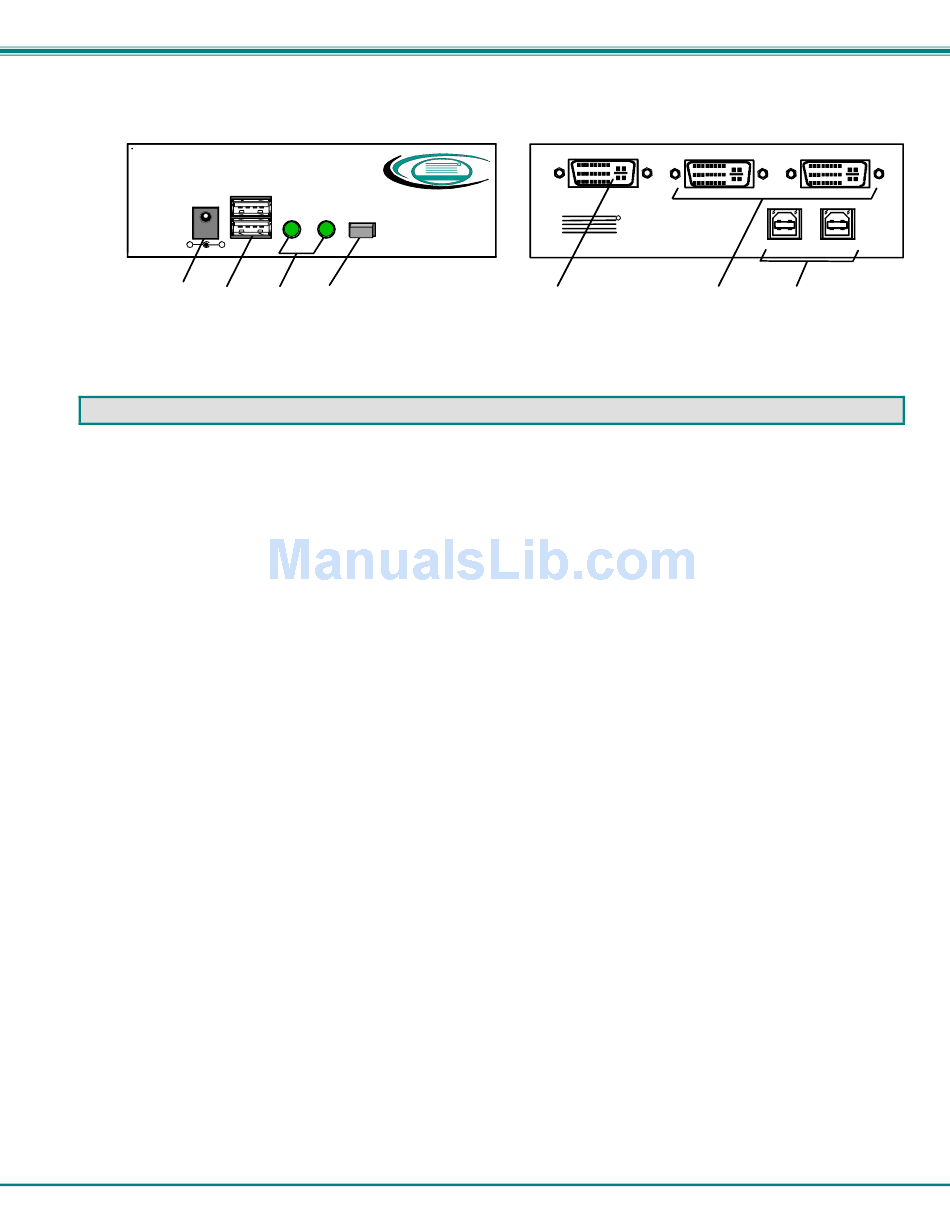

Front View of UNIMUX-DVI-2
USB Devices
5VDC
-
+
1
2

FEATURES AND FUNCTIONS

1. 5VDC- connection jack for the AC adapter
2. USB DEVICES- USB type A female connectors- for connection of user USB device(s)
3. CPU Status/Mode LEDs- for visual indication of switch connection between the user and a specific CPU as well
as mode status
4. CPU Select Switch- push to manually switch to a specific CPU or to change the switch operating mode
5. MONITOR- for connection of the user DVI-enabled video monitor
6. VIDEO x- female DVI connectors- for connecting DVI cables from CPUs
7. CPU x- USB type B female connectors-for connection of USB device cables from CPUs
NTI
Network Technologies Inc
UNIMUX
CPU
CPU 1 CPU 2
Select
3 4
Rear View of UNIMUX-DVI-2
R
Monitor
TM
NTI
NETWORK
R
TECHNOLOGIES
INCORPORATED
1275 Danner Dr Tel:330-562-7070
Aurora, OH 44202 www.nti1.com
5
2
Video 2 Video 1
CPU 2 CPU 1
6 7
