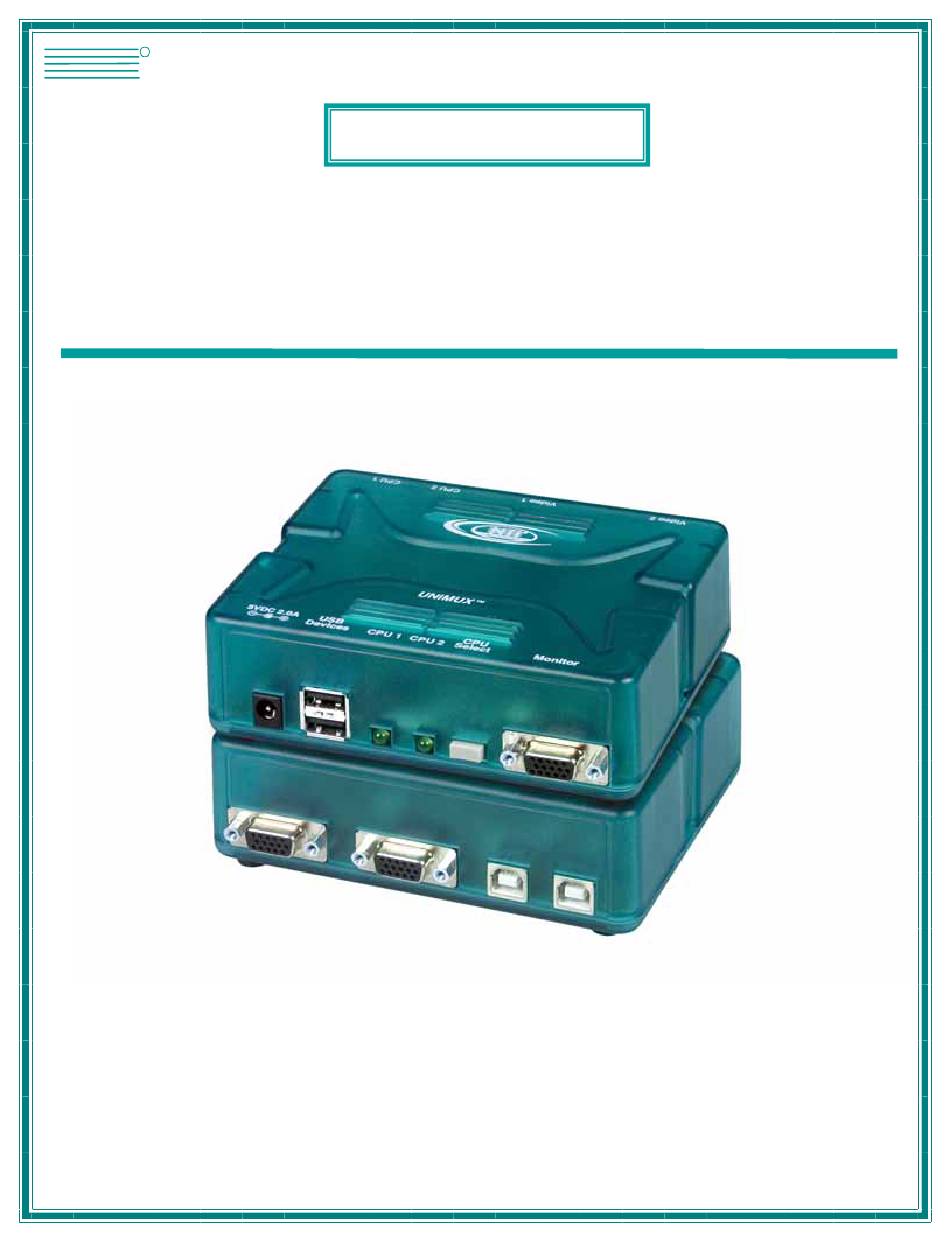

- Page 1 NETWORK 1275 Danner Dr Tel:330-562-7070 TECHNOLOGIES Fax:330-562-1999 Aurora, OH 44202 INCORPORATED www.networktechinc.com UNIMUX Series UNIMUX-USBV-2 2-Port USB KVM Switch Installation and Operation Manual MAN027 Rev Date 2/15/2007...
- Page 2 TRADEMARK UNIMUX is a trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2003-2007 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
-
Page 3: Table Of Contents
INSTALLATION................................3 Connect User Devices ..............................3 Connect to a CPU................................ 4 Power Up ..................................5 Limitations..................................5 USING THE NTI SWITCH............................... 6 CPU Select .................................. 6 Keyboard Control................................. 6 Command Mode ................................7 Scan Mode................................... 8 Broadcast Mode................................8 Normal Mode ................................ -
Page 4: Introduction
NTI UNIMUX 2-PORT USB KVM SWITCH INTRODUCTION The UNIMUX-USBV-2 (formerly referred to as KEEMUX-USBV-2U) USB KVM switch allows one user to access two USB CPUs with only one USB keyboard, USB mouse, and 15HD VGA monitor. Internal microprocessors allow both CPUs to boot simultaneously and error-free. -
Page 5: Features And Functions

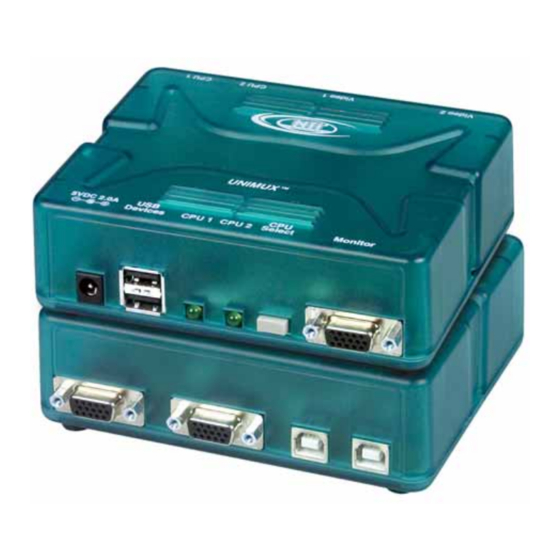

NTI UNIMUX 2-PORT USB KVM SWITCH FEATURES AND FUNCTIONS 1. 5VDC- connection jack for the AC adapter 2. USB DEVICES- USB type A female receptacles- for connection of user USB device(s) 3. CPU Status/Mode LEDs- for visual indication of switch connection between the user and a specific CPU as well as mode status 4. -
Page 6: Installation
NTI UNIMUX 2-PORT USB KVM SWITCH INSTALLATION Connect User Devices It is not necessary to turn OFF power to either of the CPUs that will be connected to the UNIMUX-USBV-2 before connecting or disconnecting any cables. NOTE: If a CPU needs to identify a keyboard, it will be necessary to power ON the CPU after it is connected to the UNIMUX-USBV-2 and only after the keyboard is connected and the UNIMUX-USBV-2 is powered ON. -
Page 7: Connect To A Cpu
NTI UNIMUX 2-PORT USB KVM SWITCH Connect to a CPU Using a USB-AB-x-MM cable connect the USB type A device port of a USB CPU to the USB type B port labeled "CPU 1" on the UNIMUX-USBV-2. Using a VEXT-xx-MM connect the video port of the same USB CPU connected in step 5 to the female 15HD port labeled "VIDEO 1"... -
Page 8: Power Up
NTI UNIMUX 2-PORT USB KVM SWITCH Power Up The UNIMUX-USBV-2 USB KVM switch can be powered at any time. The CPUs can be powered at any time although if a CPU needs a keyboard and/or mouse at power-ON it should be powered after connecting to and powering-ON the UNIMUX-USBV-2. -
Page 9: Using The Nti Switch
NTI UNIMUX 2-PORT USB KVM SWITCH USING THE NTI SWITCH The NTI UNIMUX-USBV-2 can be operated by the CPU SELECT button on the side of the switch or by keyboard control. CPU Select • Pressing the CPU SELECT button on the UNIMUX-USBV-2 will toggle between CPU 1 and CPU 2 which connects the selected CPU to the user's keyboard, monitor, and mouse. -
Page 10: Command Mode
NTI UNIMUX 2-PORT USB KVM SWITCH Command Mode Function: Keystroke: KEY SYMBOLS LEGEND: Increment Port (select the next higher port ex. 01 PRESS EITHER KEY CHORDED SEQUENCE- PRESS CONSECUTIVELY AND KEEP KEYS PRESSED UNTIL ALL ARE PRESSED. D or (select the next lower port... -
Page 11: Scan Mode
NTI UNIMUX 2-PORT USB KVM SWITCH Scan Mode Scan Mode is indicated by a flashing CPU port LED. In Scan Mode the switch scans back and forth between ports making the CPU connected to the port with the flashing LED active. -
Page 12: Keyboard Features
KEYBOARD FEATURES The keyboard configuration of each CPU is saved in the NTI UNIMUX-USBV-2. For example, if the CPU attached to Port 2 had CAPS LOCK and NUM LOCK selected the last time that CPU was accessed, then they will automatically be set when that CPU is accessed again. -
Page 13: International Sun Keyboards
NTI UNIMUX 2-PORT USB KVM SWITCH Figure 5- Keyboard configurations International Sun Keyboards The UNIMUX-USBV-2 can recognize international layouts for Sun keyboards. In order to use an international Sun keyboard, follow this procedure: 1. Disconnect the CPU from the UNIMUX-USBV-2 2. - Page 14 NTI UNIMUX 2-PORT USB KVM SWITCH It is also possible to configure the UNIMUX-USBV-2 to emulate a specific international Sun keyboard regardless of what actual keyboard is connected. This is recommended when the CPU needs the layout code (i.e. a SUN CPU) and the keyboard doesn't have an explicit layout code (i.e.
-
Page 15: Technical Specifications
• reboot the CPU If the NTI UNIMUX-USBV-2 still seems work improperly, help may be found in the Frequently Ask Questions (FAQ’s) section of our website at http://www.networktechinc.com or call us directly at ( 800) 742-8324 (800-RGB-TECH) or (330) 562-7070... -
Page 16: Warranty Information
NTI UNIMUX 2-PORT USB KVM SWITCH INDEX Broadcast Mode, 8 MAC CPUs, 8 cables, 1 Normal Mode, 8 Command Mode, 6 Scan Mode, 8 country code, 11 SELECT button, 6 CPUs supported, 1 specifications, 12 devices supported, 1 Sun international keyboards, 10...
