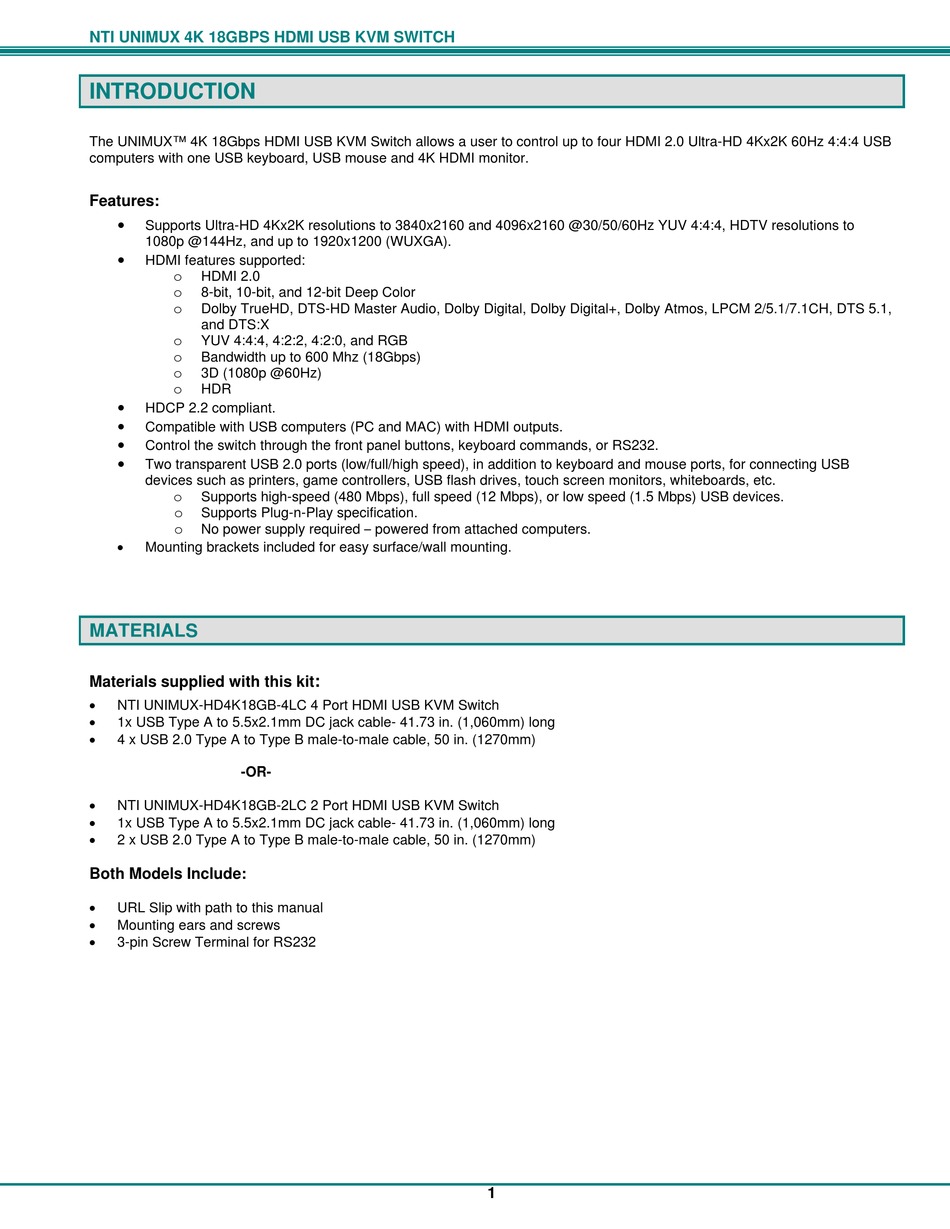

NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH

INTRODUCTION

The UNIMUX™ 4K 18Gbps HDMI USB KVM Switch allows a user to control up to four HDMI 2.0 Ultra-HD 4Kx2K 60Hz 4:4:4 USB
computers with one USB keyboard, USB mouse and 4K HDMI monitor.
Features:

Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30/50/60Hz YUV 4:4:4, HDTV resolutions to
1080p @144Hz, and up to 1920x1200 (WUXGA).

HDMI features supported:
o HDMI 2.0
o 8-bit, 10-bit, and 12-bit Deep Color
o Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, Dolby Digital+, Dolby Atmos, LPCM 2/5.1/7.1CH, DTS 5.1,
and DTS:X
o YUV 4:4:4, 4:2:2, 4:2:0, and RGB
Bandwidth up to 600 Mhz (18Gbps)
o
o 3D (1080p @60Hz)
o HDR

HDCP 2.2 compliant.

Compatible with USB computers (PC and MAC) with HDMI outputs.

Control the switch through the front panel buttons, keyboard commands, or RS232.

Two transparent USB 2.0 ports (low/full/high speed), in addition to keyboard and mouse ports, for connecting USB
devices such as printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
o Supports high-speed (480 Mbps), full speed (12 Mbps), or low speed (1.5 Mbps) USB devices.
o Supports Plug-n-Play specification.
No power supply required – powered from attached computers.
o

Mounting brackets included for easy surface/wall mounting.

MATERIALS

Materials supplied with this kit

NTI UNIMUX-HD4K18GB-4LC 4 Port HDMI USB KVM Switch

1x USB Type A to 5.5x2.1mm DC jack cable- 41.73 in. (1,060mm) long

4 x USB 2.0 Type A to Type B male-to-male cable, 50 in. (1270mm)
-OR-

NTI UNIMUX-HD4K18GB-2LC 2 Port HDMI USB KVM Switch

1x USB Type A to 5.5x2.1mm DC jack cable- 41.73 in. (1,060mm) long

2 x USB 2.0 Type A to Type B male-to-male cable, 50 in. (1270mm)
Both Models Include:

URL Slip with path to this manual

Mounting ears and screws

3-pin Screw Terminal for RS232
:
